5. Attach the hydraulic lines:
• Attach the hydraulic lines as shown in Figure 16 and 17. Align them parallel to the lateral shifter, ensuring the
lines cannot be pinched.
• Before attaching the flail mulcher to a tractor, align the hydraulic lines in such a way that they cannot be
damaged.
• Check the hydraulic lateral shifter for clearance (no hydraulic lines, etc., in the way) before using the flail
mulcher for the first time.
• Remove the protective caps from the hydraulic hoses only when using the machine.
6. Attach hydraulic ram:
• Tighten the nut on the left side (Figure 18).
• Tighten the nut and locknut (Figure 19) on the right side.
• If the hydraulic connections move excessively around the ram axis, readjust the hydraulic ram and re-tighten
the ram nuts.

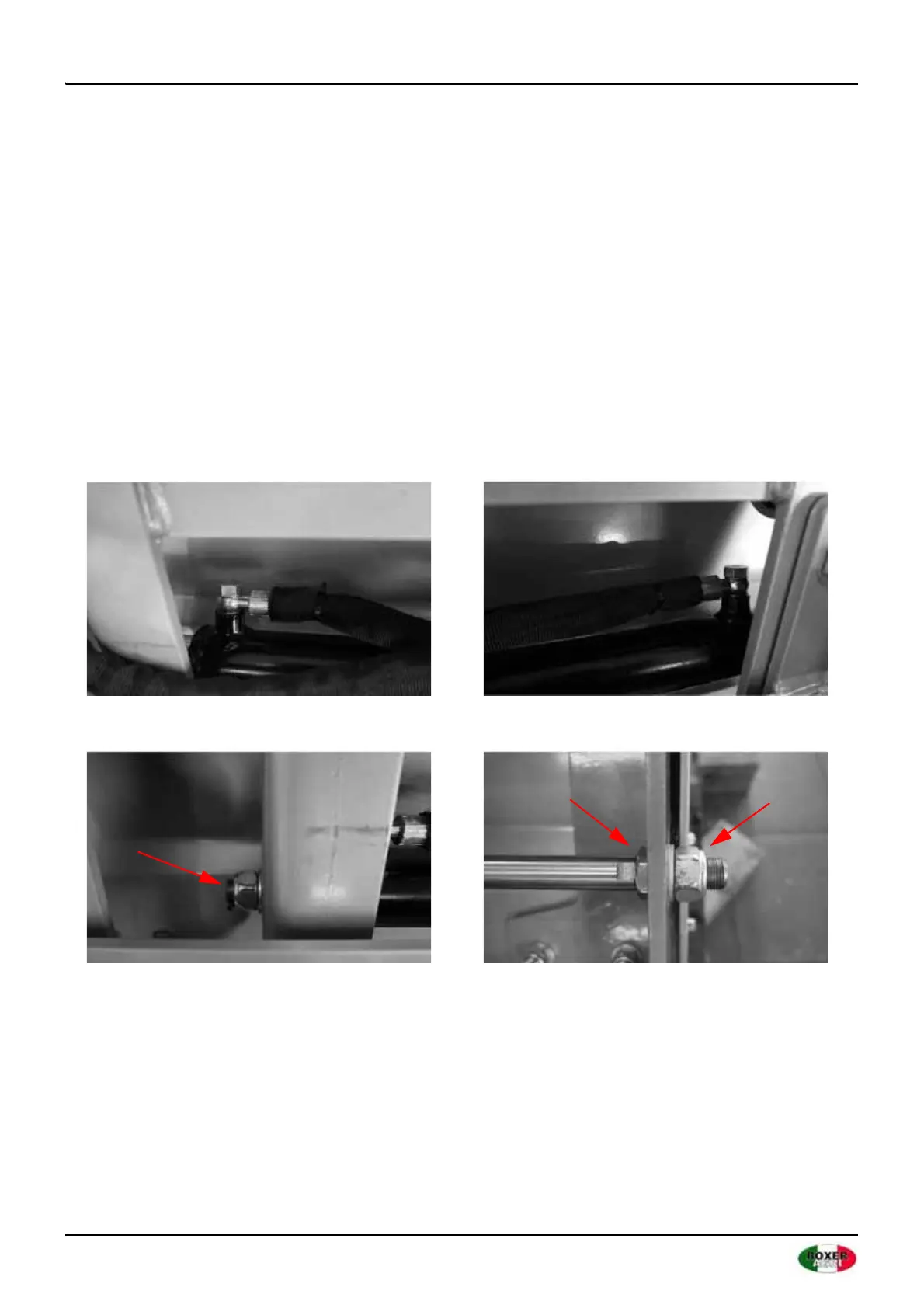

Fig. 16 Hydraulic line left Fig. 17 Hydraulic line right
Fig. 18 Nut for hydraulic ram left Fig. 19 Mounting for hydraulic ram right
