MULCHING MOWER MASTER SERIES | User manual February 2021
• Attach the 3-point mounting bracket as shown in Figure 13 using the 8 screws, nuts and washers.
4. Attach the 3-point bracket and the hydraulic lateral shifter to the mulcher housing:
• Figure 14 shows the material for two of four shims that secure the hydraulic lateral shifter to the mulcher
housing. The image shows the left side as an example. It is important to mount the reinforcing shims from the
inside of the housing. For convenience, the flail mower can be jacked up for easier installation (Figure 10). Here,
please also note the safety instructions.
• Tighten the screws and nuts!

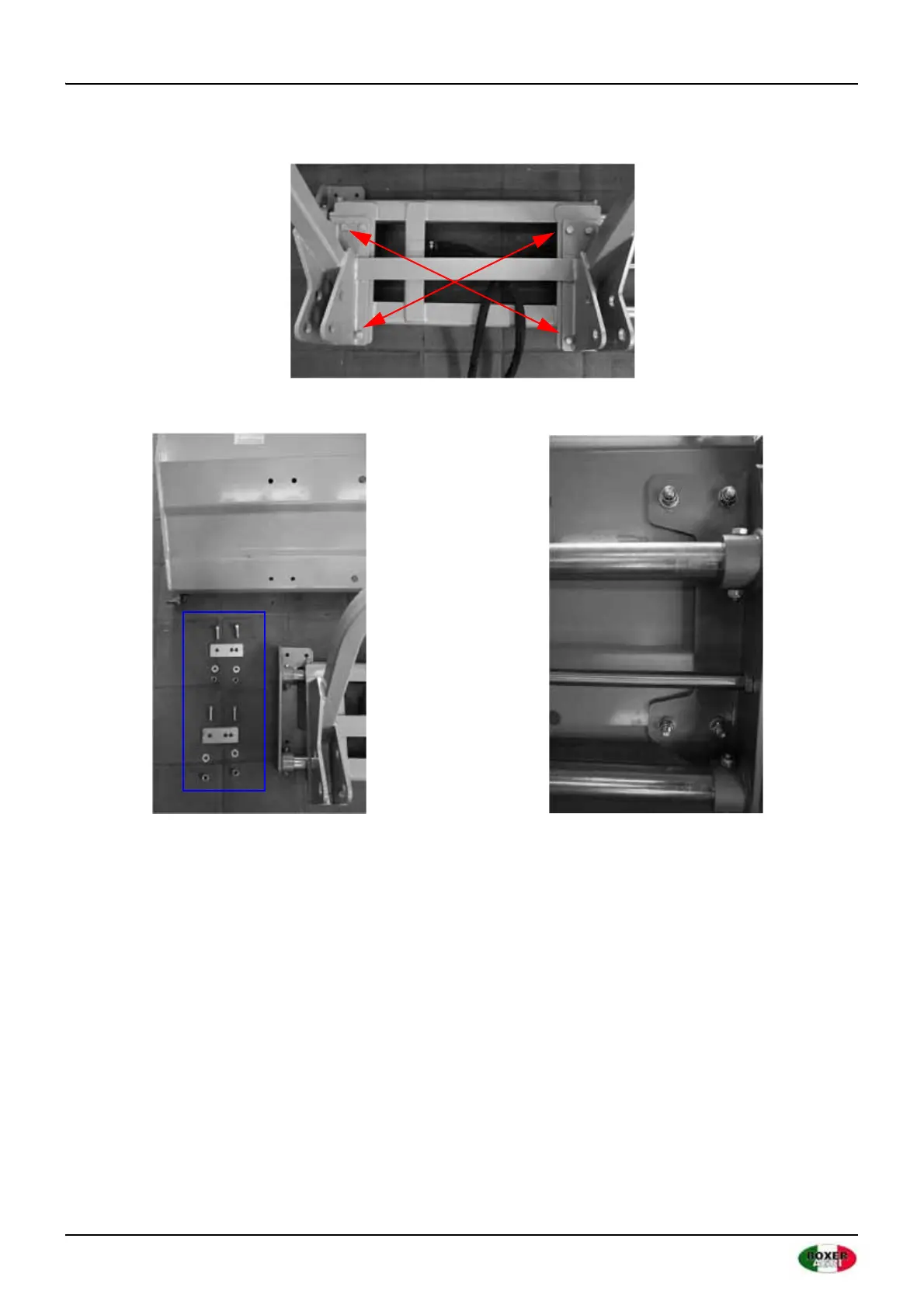

Fig.13 Mounting bracket attached to hydraulic lateral shifter using 8 screws, nuts and washers.
Fig. 14 Mounting material for hydraulic lateral shifter, left
side
Fig. 15 Mounted hydraulic lateral shifter (right side)
