Page 19/42
February 2021MULCHING MOWER MASTER SERIES | User manual
8. Correctly adjusted drivetrain:
• Figure 24 shows the correct pulley alignment. Vertical and parallel!
• Figure 25 shows the correct drive shaft position. It is important that the shaft has sufficient distance to the
housing and does not drag on the housing.
• Figure 26 shows the correct drive belt tension. The deflection depth of the belt may not exceed 10 mm,
because otherwise the tension is insufficient and the forces are not transferred correctly. (Adjustment via
tensioning device, see Figure 15)

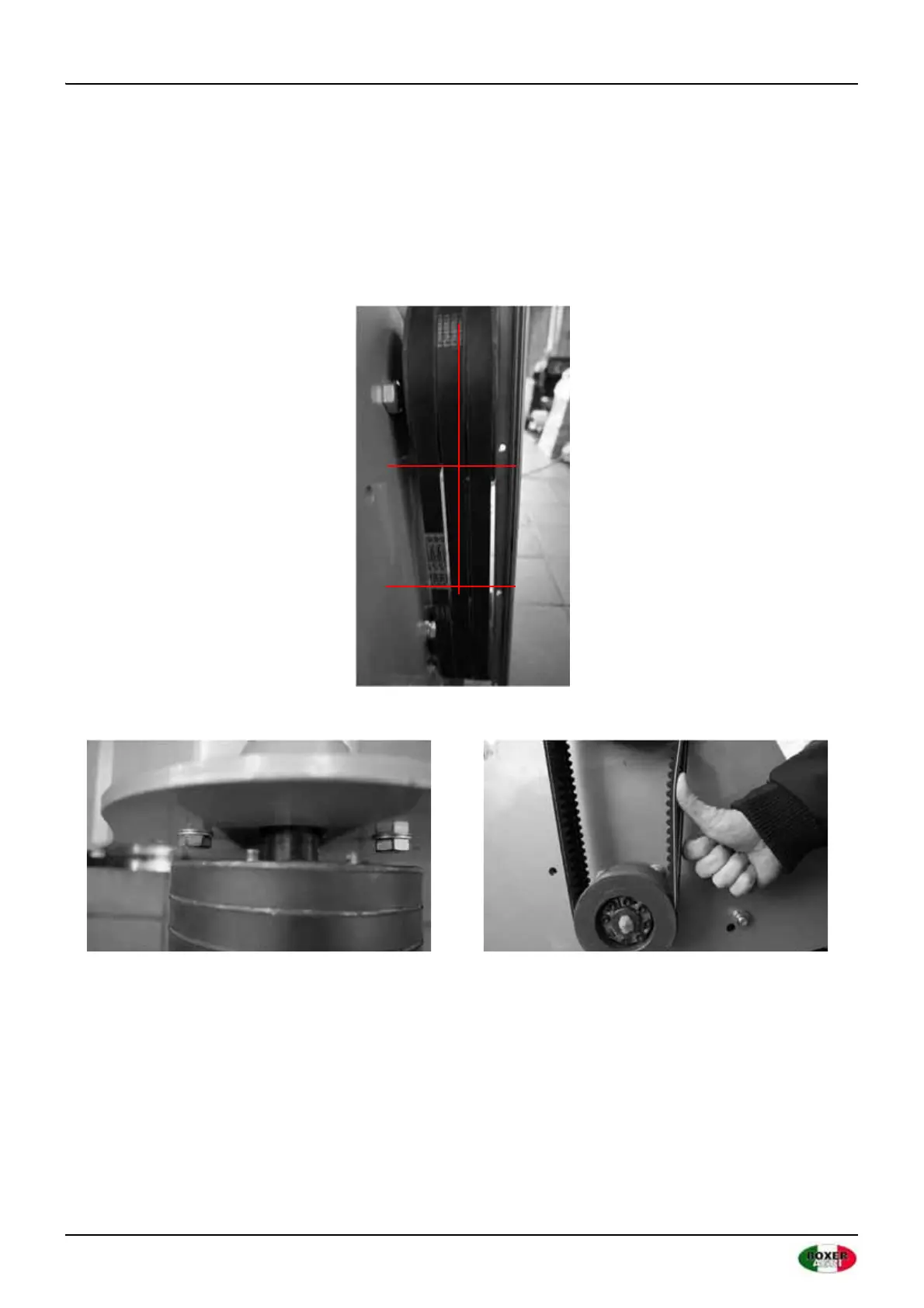

Fig. 24 Correct pulley alignment
Fig. 25 Correct drive shaft distance Fig. 26 Correct drive belt tension
