14. Fit reversible bolt:
Depending on requirements, insert the reversible bolts in positions 1 or 2 and secure them using the retaining pin.
15. PTO chains:
When operating the flail mulcher, ensure that the PTO guard is properly connected to the PTO safety chains to
prevent the guard from spinning.
16. Transmission lifting eye:
To lift the transmission, a lifting eye can be screwed to the transmission (Figure 42)
The lifting eye is used exclusively for lifting the transmission. Please ensure you completely disconnect the
transmission first.
17. Opening flap:
The mulcher is equipped with an opening flap, which facilitates cleaning and servicing works. For taller grass, we
recommend setting the opening flap to the middle position during operation. (Figure 43)

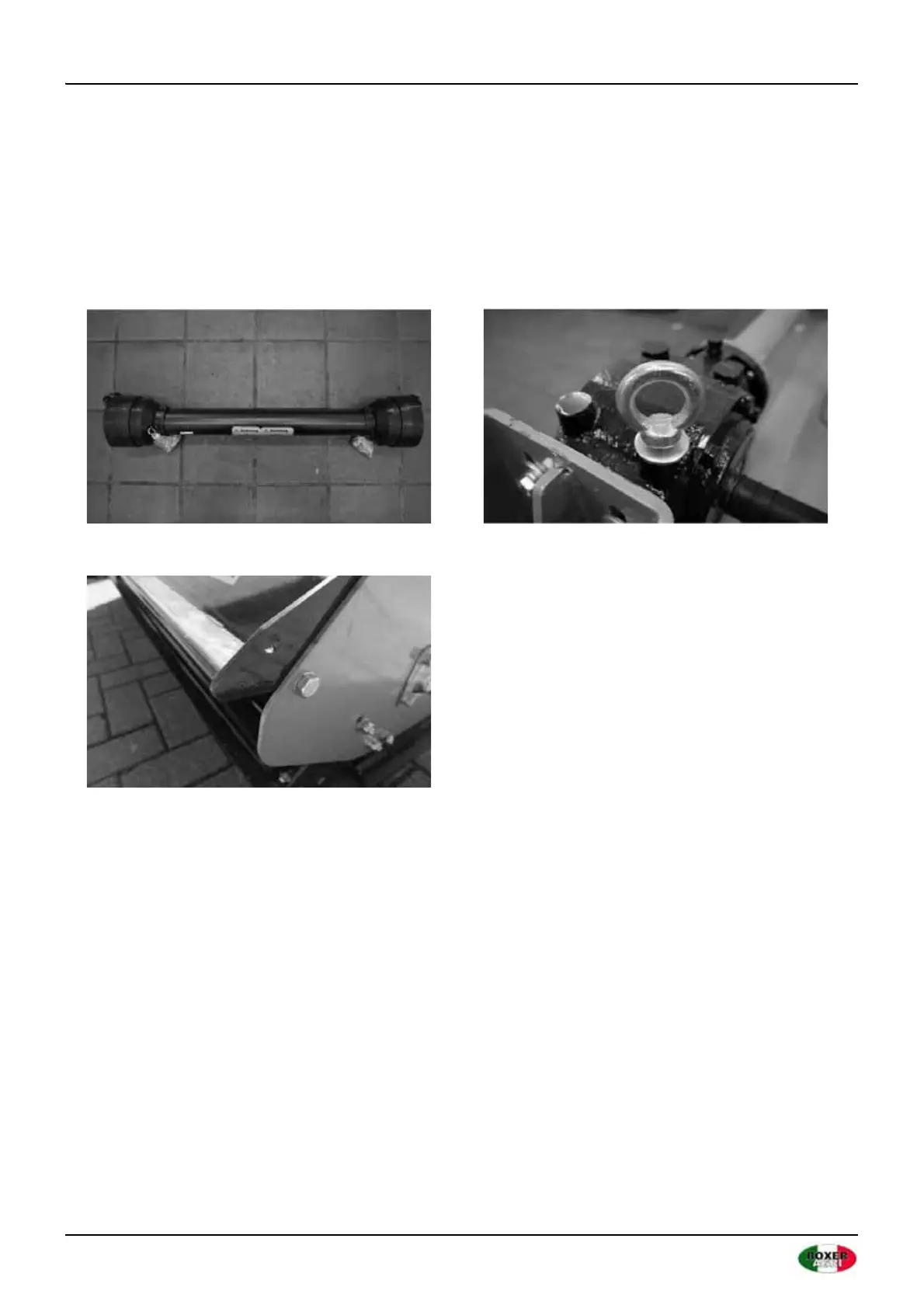

Fig.41 Power take-off with guard and chains Fig. 42 Transmission lifting eye
Fig. 43 Opening flap
