Model: S2601 & S2605 Chairs
Arm Board Adjustment and Release
(All Models)
Arm Board Positioning:
1. Adjust arm board by squeezing the Arm Board Release Knob (See Below) upward toward arm board pad.
2. This releases the arm board to move freely for positioning.
3. Releasing knob will lock arm board in set position.
Arm Board Height/Rail Adjustment and Removal:
1. Loosen the Arm Board Height and Rail Adjustment Handle to unlock arm board position. (See Below)
2. The arm board can be raised or lowered and can be slid along the rail to position as desired or removed.
3. Retighten the handle to lock arm board for repositioning.
Operang Instrucons (connued)

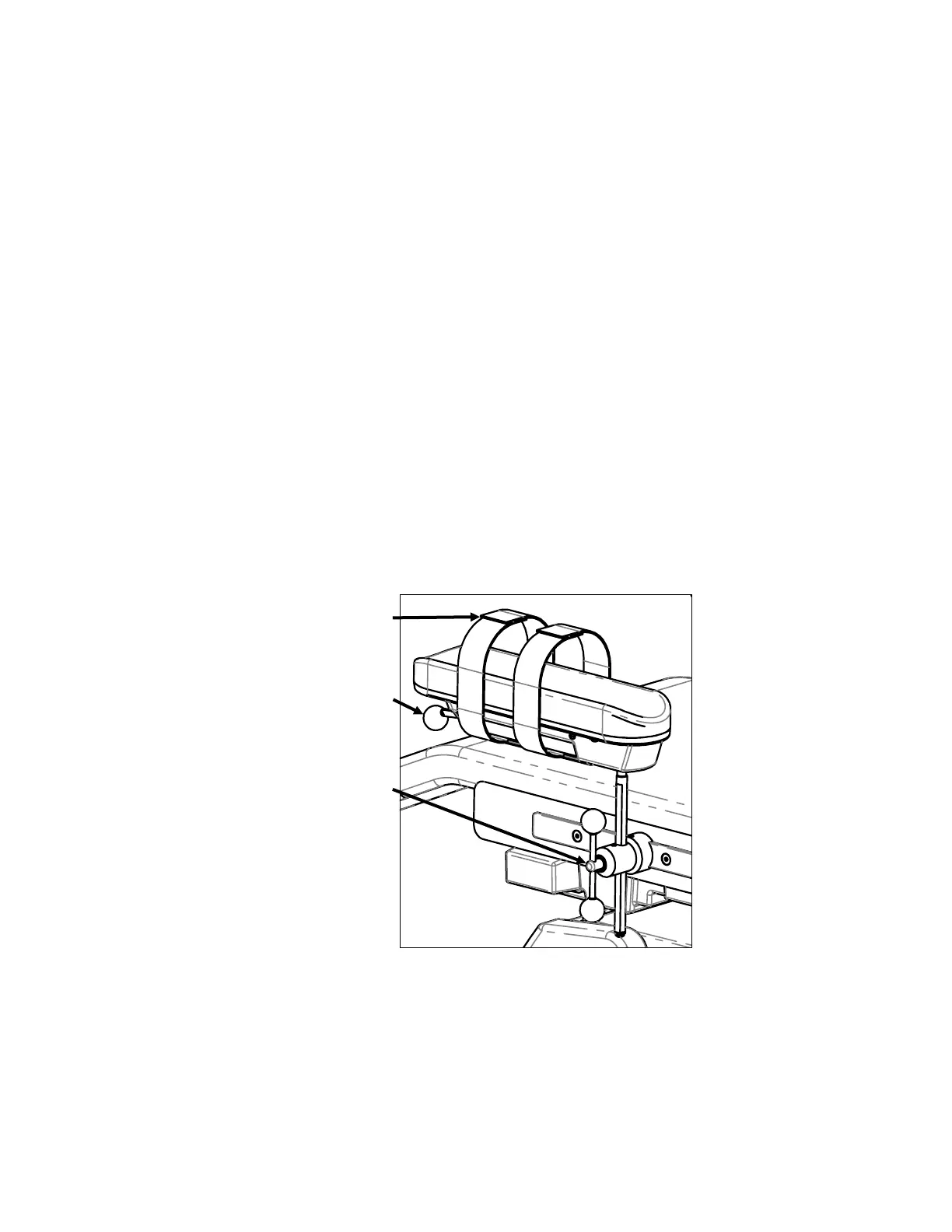

Adjustable
Arm straps
Arm Board
Adjustment
Release Knob
Arm Board Height
& Rail Adjustment
Handle
Rail Mount Arm
