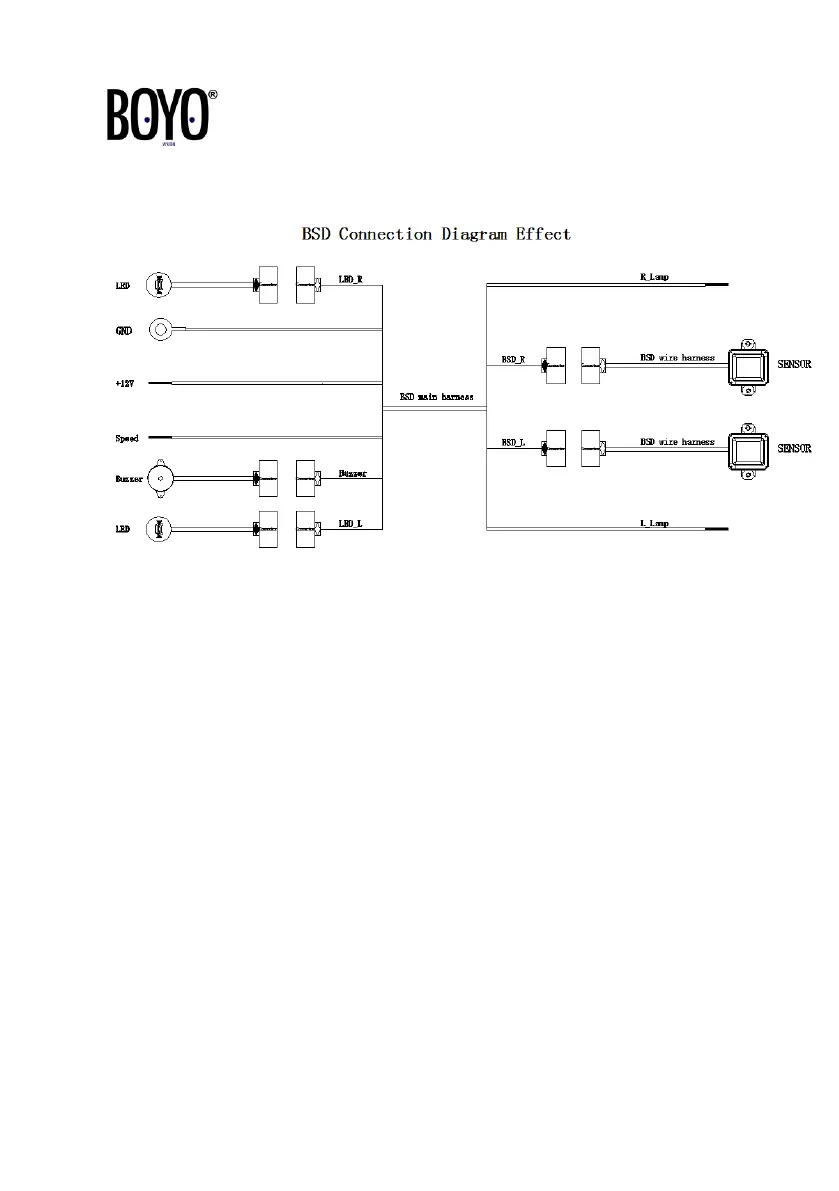

VI. Wires Connection Diagram
1. BSD_L connect to left sensor of BSD
2. BSD_R connect to right sensor of BSD
3. LED_L connect to Left LED indicator
4. LED_R connect to right LED indicator
5. L_Lamp connect to left rear lamp (left turn light)
6. R_Lamp connect to right rear lamp (right turn light)
7. Buzzer connect to buzzer
8. Speed connect to vehicle speed signal (reserved)
9. +12v connect to ACC connector
10. GND connect to Vehicle GND wire
