VII. Installation Gist
1. Sensor settings
Step1. Sensors of the BSD system should be pasted to both inner
corners of rear bumper shell with an angle of 25° to 35°, at height of
35-90cm.(Fig.1-Fig.3).

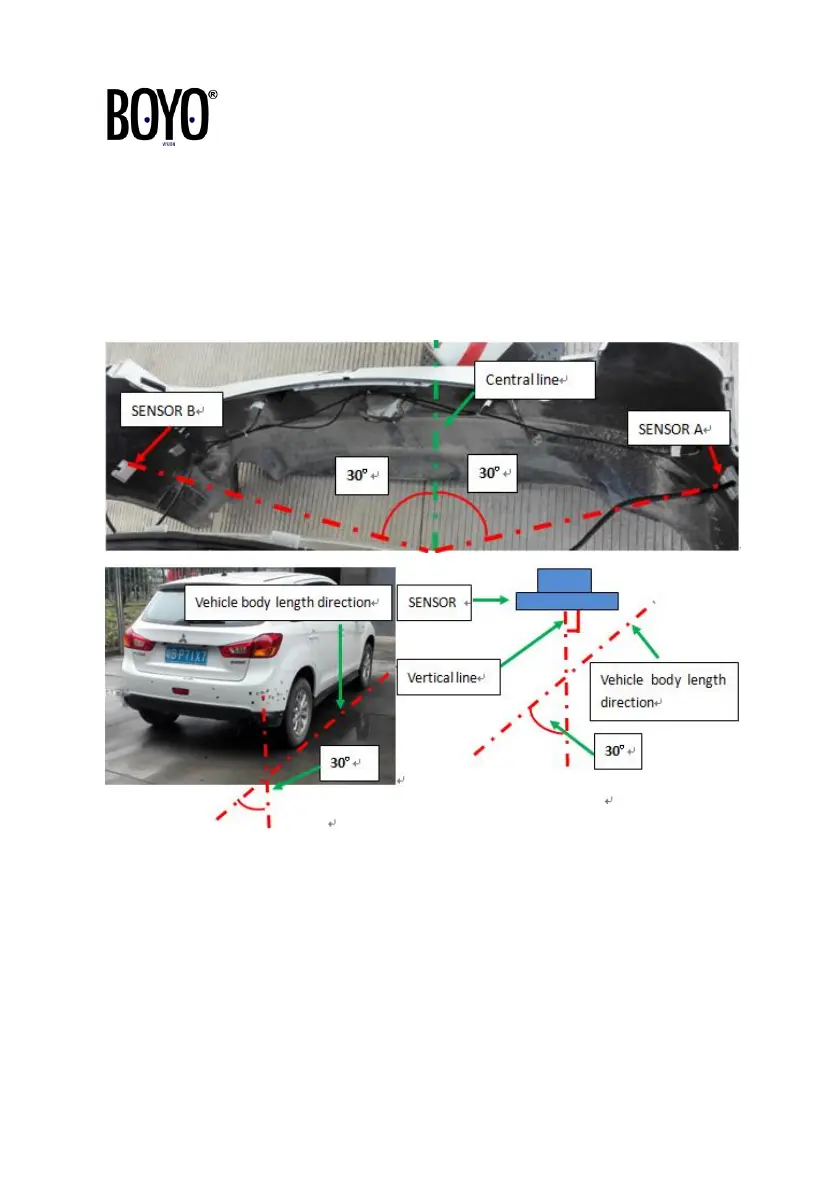

Fig.1~Fig.3
Step2. Place a straight tape between front wheel and rear wheel,
then place a 30º angle calibration cloth under the rear bumper, the
cloth edge should be paralleled with the tape (Fig.4).
Step3. Place a ruler (about80cm) vertically, one side of the ruler
should be leaned on the rear bumper, the other side of the ruler
should be paralleled with the calibrating lines on calibration cloth
(Fig.5-Fig.6).
