Boyo VTW73M - 2.3 How to Wire

2.3 How to wire
3M
7 8

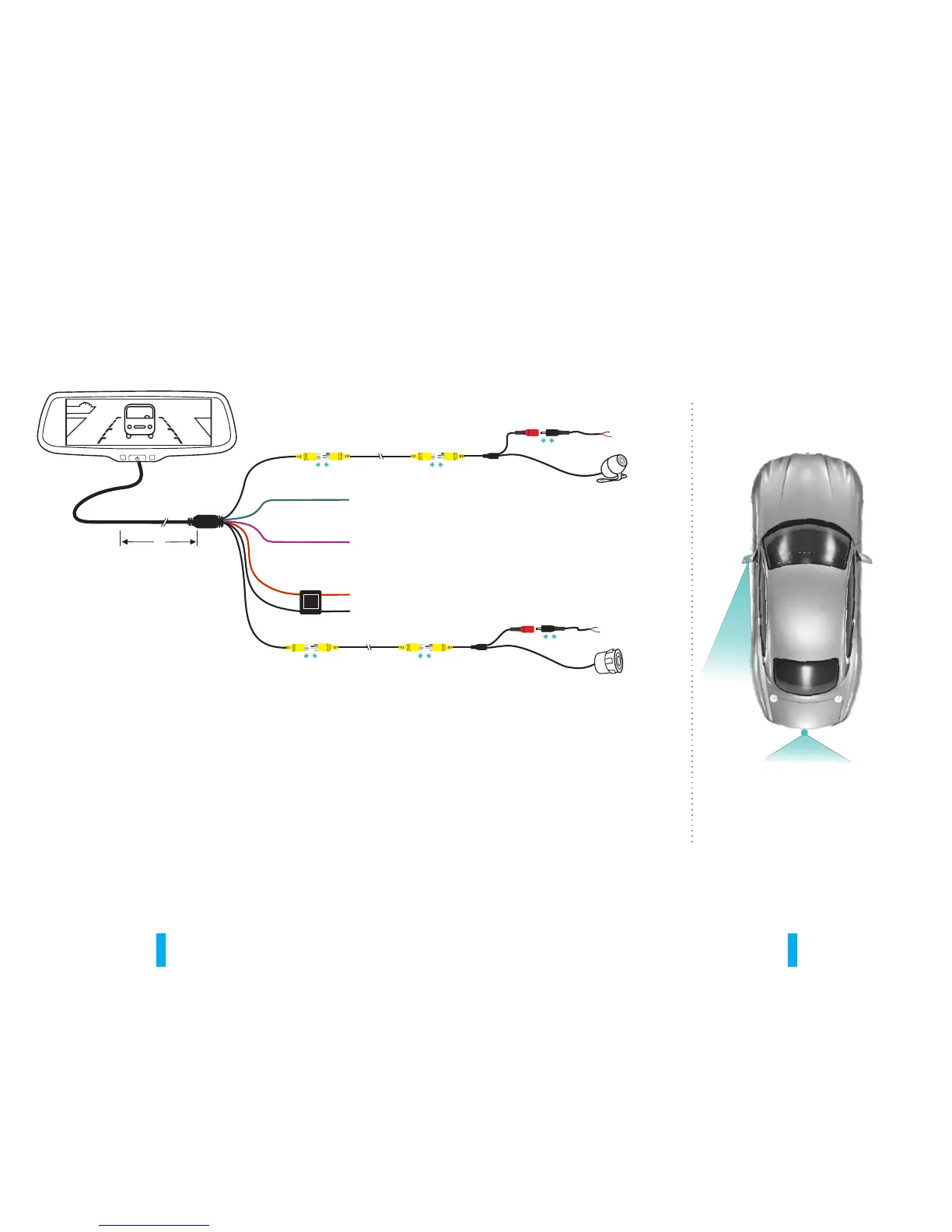

power harness
PUSE
BOX
Black to GND
Red to ACC +12V
Black to GND
Red to ACC +12V
Black to GND
Red to ACC +12V
Back up video
Left video
The advisable installation
position for camera
Back up video
The reversing signal is input to rear view mirror by connecting the green line.
Therefore, reversing video can be displayed automatically on the wide 7.3 inch
LCD monitor.
Lef
t v
ide
o
green
Back car singal
Trigger line 1
purple
