INSTALLATION
INSTRUCTIONS
A/200R POWER SUPPLIER
The unit is equipped with a transformer
capable of powering the HPC/1 entry
panel and max. 20 HPP/6 panels (or
MVA/100.01 audio module and max. 20
MC call button modules or 10 push-but-
tons lights, equal to 20 call push-but-
tons, on AZ entry panels).
The unit features the following func-
tions:
- 2 two-tone call notes for entry panels
(or for supplementary calls, e. g. lan-
ding calls).
- Power supply and control of electric
door lock (12V AC, 1A) by means o
f
relay (inside the unit).

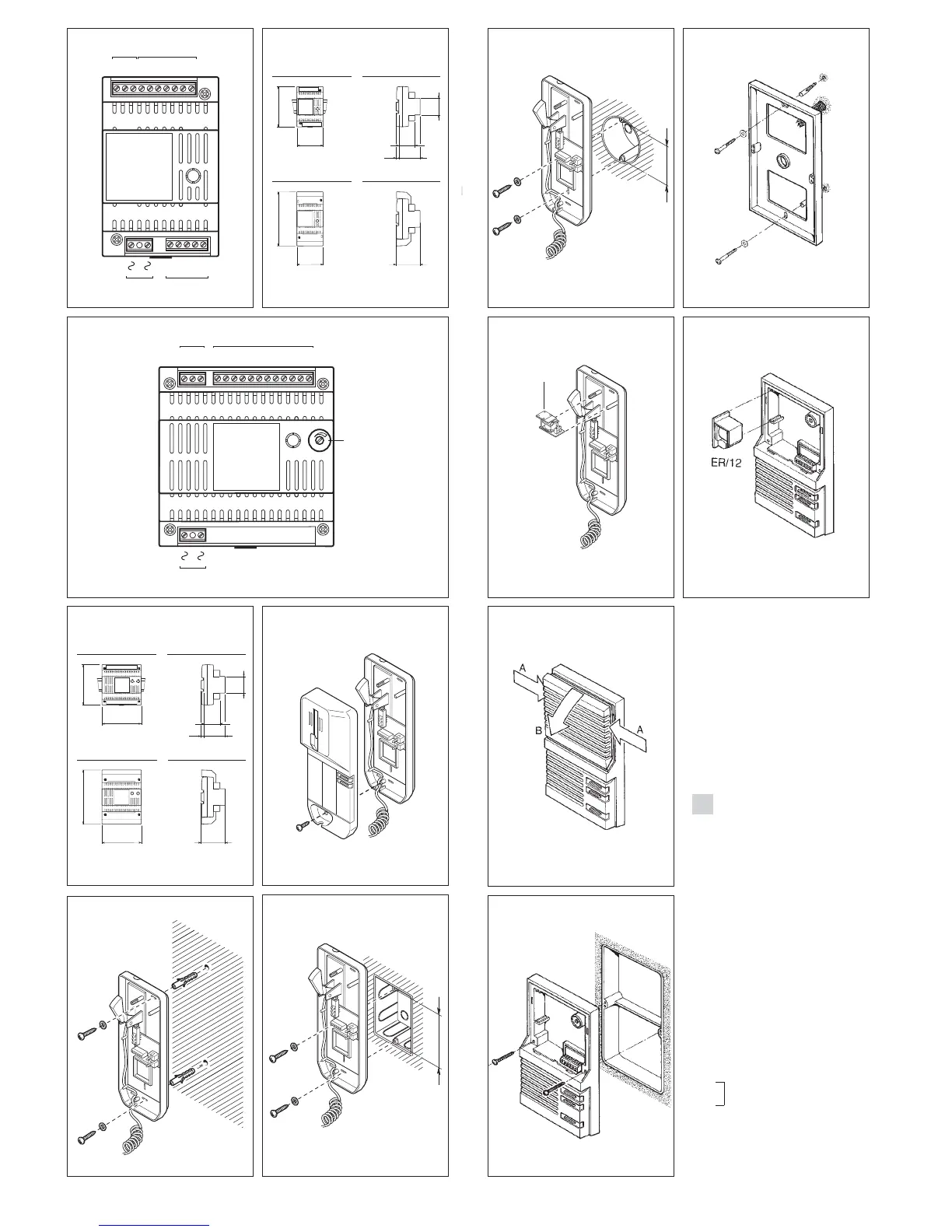

Function of each terminal, figure 1
Terminal block A
~
mains
~
Terminal block B
+B 12 V DC input
5 ground
21 11 V DC output
8
call common 1 output
A/200N
