2 SETUP
4
S05295-10
–

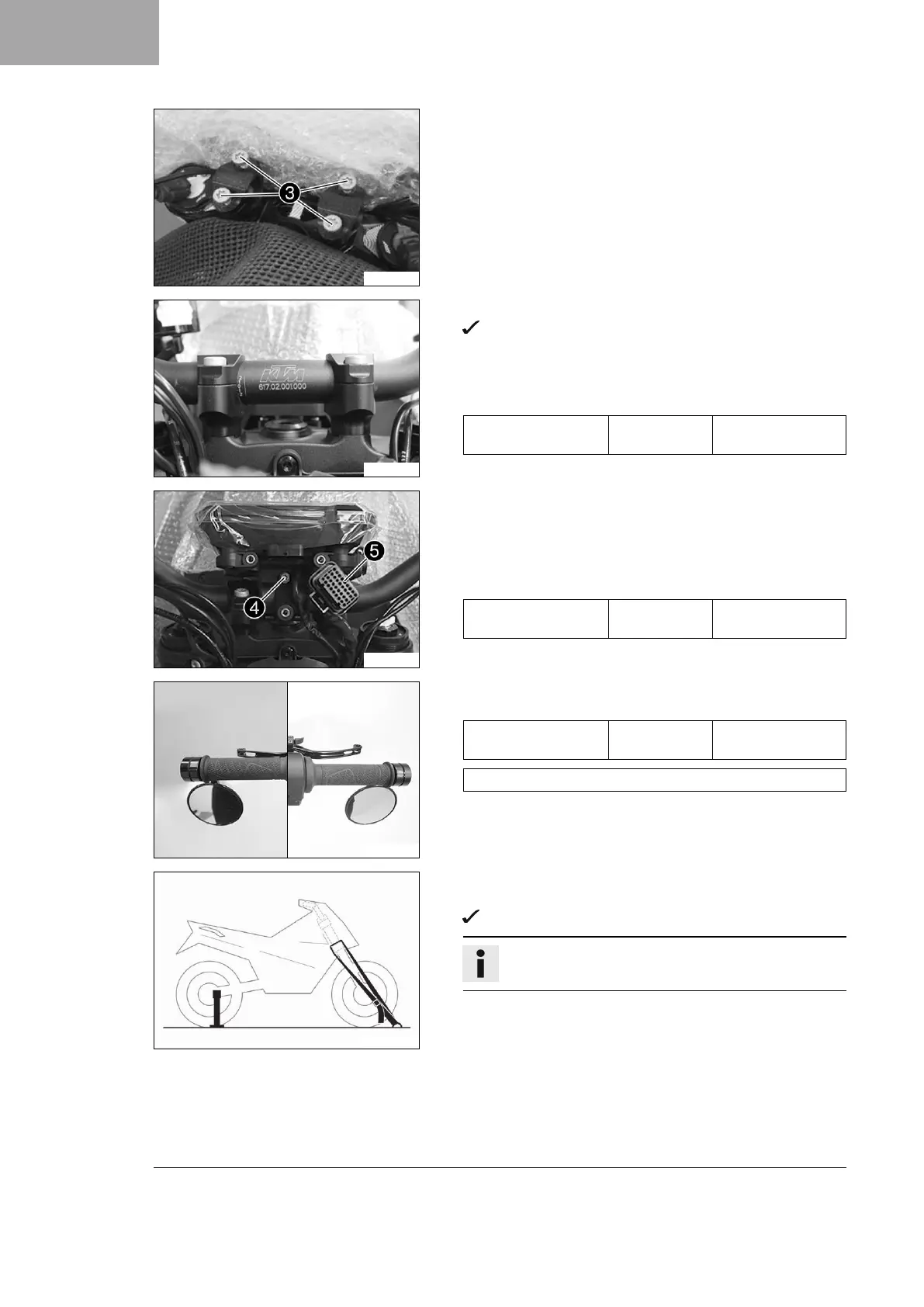

Remove the handlebar clamp screws
3
.
– Take off the handlebar clamp.
S05296-10
–
Position the handlebar.
The markings of the handlebar scale are located centrally
between the handlebar clamp.
– Position the handlebar clamp. Mount and tighten the screws
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
S05297-10
– Position the combination instrument rack on the handlebar.
–
Mount screw
4
, but do not tighten it yet.
– Move the combination instrument into the desired position.
–
Tighten screw
4
.
Guideline
Screw, combination
instrument clamping
M6 2 Nm (1.5 lbf ft)
–
Plug in connector
5
with sleeve.
S05298-10
– Mount and tighten the rear mirror on both sides.
Guideline
Screw, handlebar
end mirror
M6x35 13 Nm (9.6 lbf ft)
Mount the rear mirror facing downward.
H05199-01
– Carefully loosen and remove the tension belts around the fork
legs.
The vehicle is released at the front.
Info
An assistant prevents the motorcycle from falling over.
– Remove the tension belt on the rear wheel.
– Together with an assistant, take the vehicle off the pallet.
– Remove the radiator shield.
