3 WORK
6

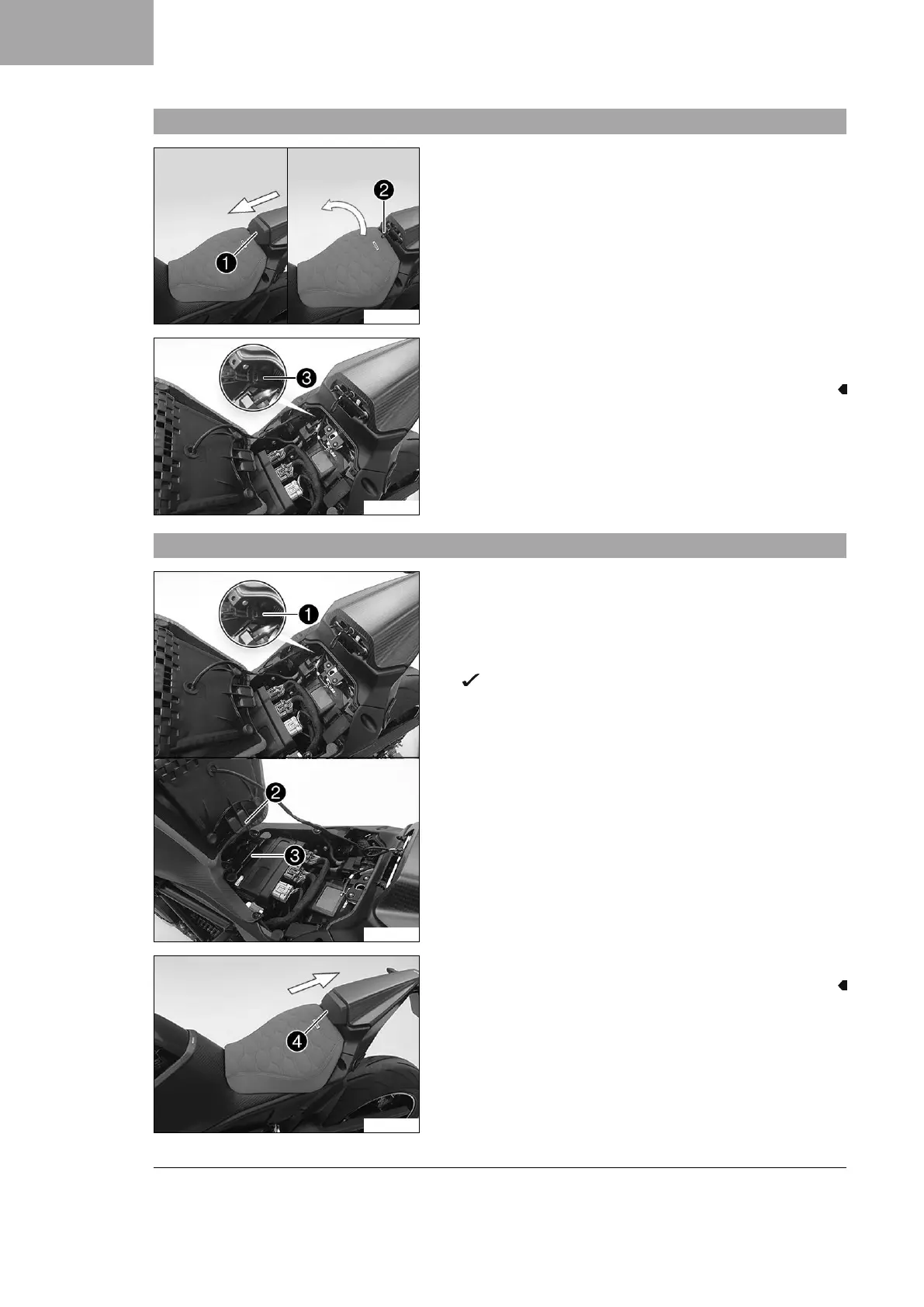

3.1 Removing the front rider's seat
S05188-10
–
Pull off back cushion
1
toward the front.
–
Unlock the front rider's seat with loop
2
.
– Lift the rear of the front rider's seat.
S05189-10
–
Disconnect plug-in connector
3
of the seat heating.
– Remove the front rider's seat.
3.2 Mounting the front rider's seat
S05190-10
–
Join plug-in connector
1
of the seat heating.
–
Hook recess
2
of the front rider's seat into guide
3
, lower it
at the rear and push it forward.
– Position the locking pin in the lock housing and push down the
front rider's seat at the rear.
The locking pin engages with an audible click.
– Check that the front rider's seat is mounted correctly.
S05191-10
–
Position back cushion
4
and push it into holding lugs.
