Bradley S19-2000 Series User Manual

Bradley EFX 8 Thermostatic Mixing Valve with Optional Cabinet
Model S19-2000 Series Installation and Maintenance Instructions
4 Bradley Corporation • 215-1291 Rev. L; EN 07-903A
5/14/08

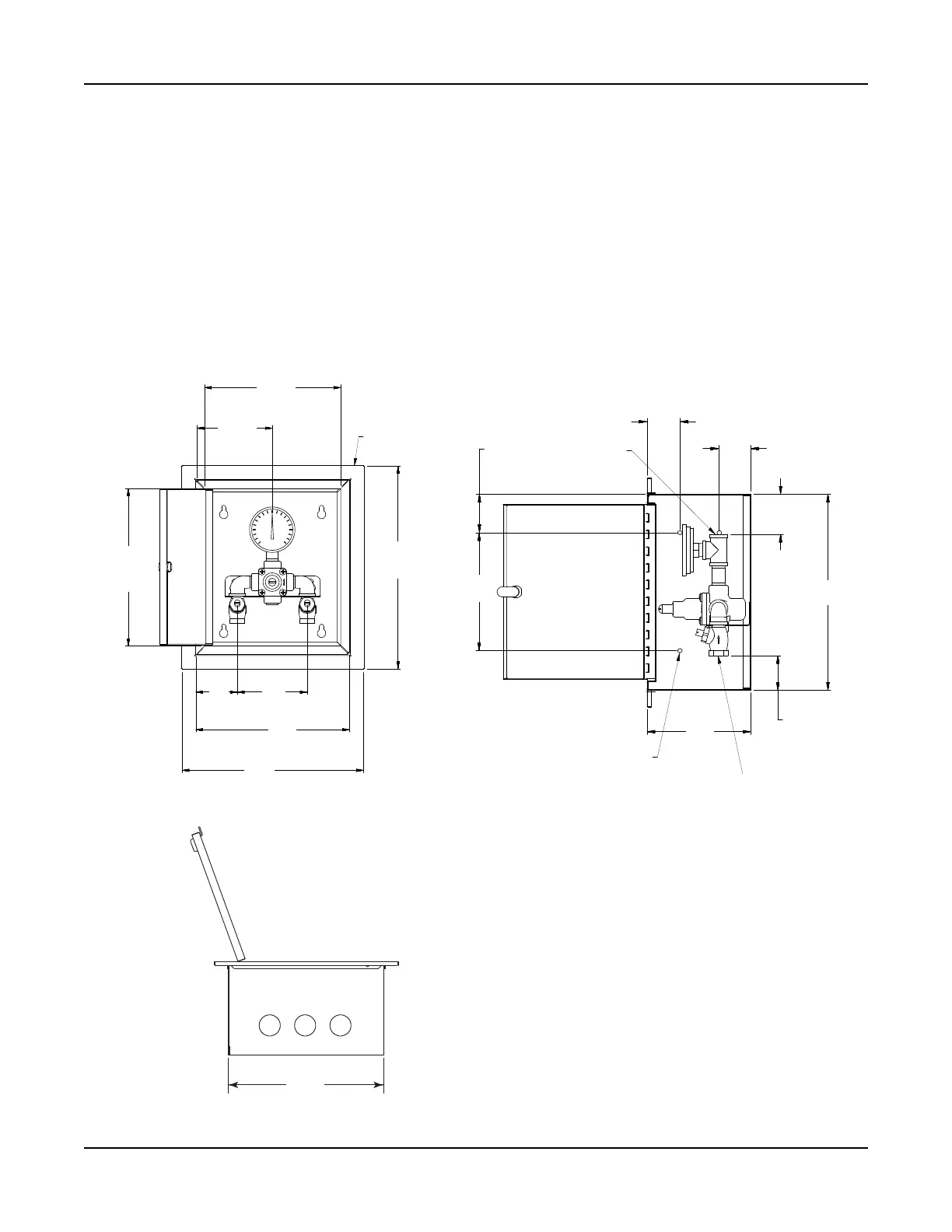

Figure 3
BOTTOM VIEW
SIDE VIEW
FRONT VIEW
Installation Instructions: Valve with Optional Recess-Mounted Cabinet
Note: Flush the supply lines before beginning installation.
1. Rough in a 11-1/2" W x 13" H hole in the wall for the cabinet (see Figure 3).
2. Measure and mark the cabinet mounting hole locations at the dimensions shown in Figure 3. Install four
1/4" wall anchors, if required (supplied by installer).
3. Insert the cabinet into the wall opening and secure into place with four 1/4" wall fasteners (supplied by
installer).
4. Insert the valve into the bracket in the cabinet (right side of the valve goes in first). Install the valve,
elbows and stops onto the inlet and outlet piping.
5. Continue with the valve installation procedure found on page 3.
11"
(279)
11"
(270)
9-3/4"
(248)
Door
5-3/8"
(137)
2-1/2"
(64)
7-1/2"
(190)
6-1/2"
(165)
12-1/2"
(318)
2-1/4"
(57)
1/2" NPT Inlets
1/2" NPT Outlet
2"
(51)
2"
(51)
2-1/2"
(64)
14-1/2"
(368)
13"
(330)
3"
(76)
5"
(127)
11"
(279)
Box
Flange
11-1/4"
(286)
Door
9/32" (6) Ø Holes
(4) Each Side
(8) Total
