Bradley S19-2000 Series User Manual

Bradley EFX 8 Thermostatic Mixing Valve with Optional Cabinet
Installation and Maintenance Instructions Model S19-2000 Series
5Bradley Corporation • 215-1291 Rev. L; EN 07-903A
5/14/08

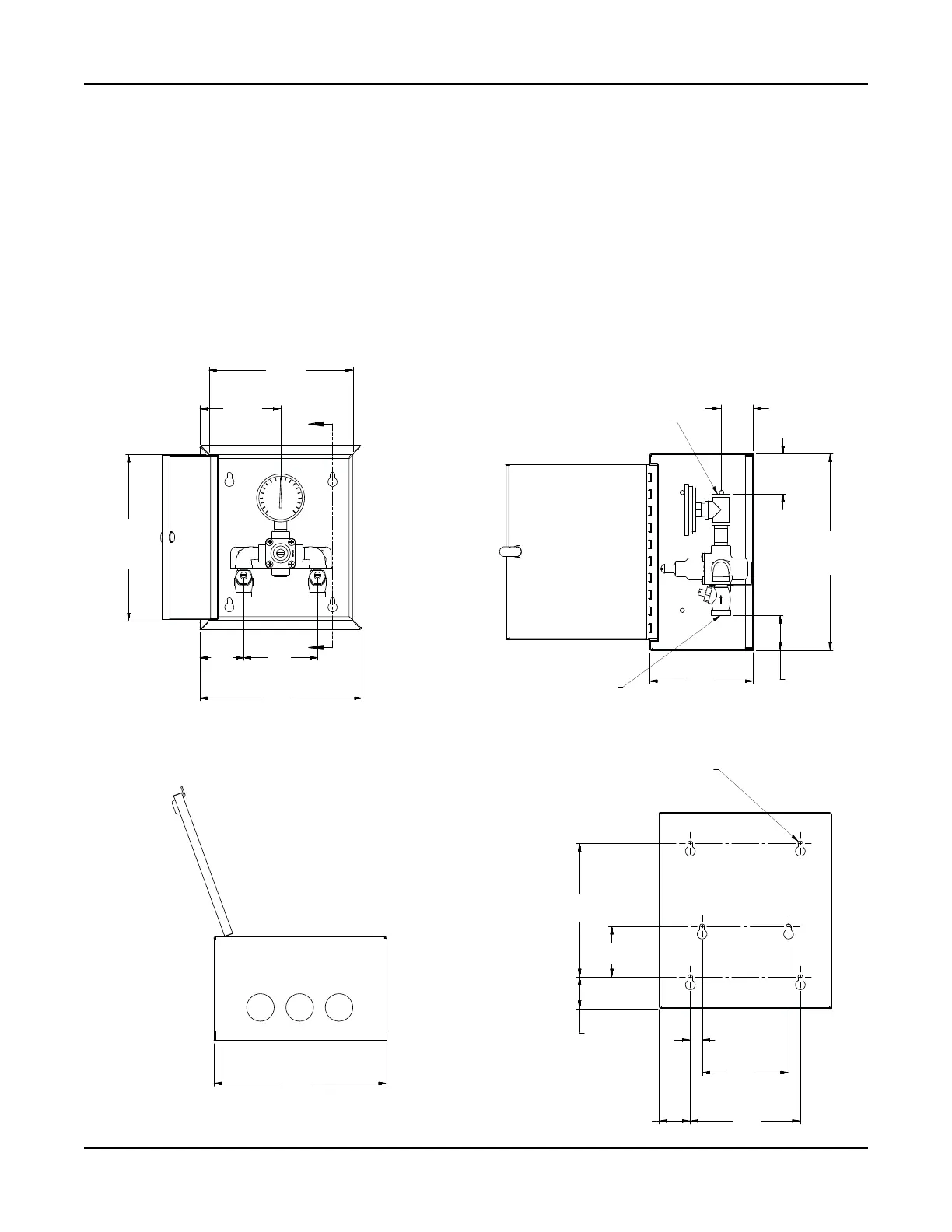

Figure 4
BOTTOM VIEW
Installation Instructions: Valve with Optional Surface-Mounted Cabinet
Note: Flush the supply lines before beginning installation.
1. Measure and mark the cabinet mounting hole locations at the dimensions shown in Figure 4. Install six
1/4" wall anchors (supplied by installer).
2. Position the cabinet onto the wall and secure into place with six 1/4" wall fasteners (supplied by
installer).
3. Insert the valve into the bracket in the cabinet (right side of the valve goes in first). Install the valve,
elbows and stops onto the inlet and outlet piping.
4. Continue with the valve installation procedure found on page 3.
MOUNTING HOLE LOCATIONS
FRONT VIEW SIDE VIEW
11"
(270)
9-3/4"
(248)
Door
5-1/2"
(140)
3"
(76)
5"
(127)
11"
(279)
Box
11-1/4"
(286)
Door
3-1/4"
(83)
3/4"
(19)
5-1/2"
(140)
7"
(178)
2"
(51)
2"
(51)
8-1/2"
(216)
6-1/2"
(165)
12-1/2"
(318)
2-1/4"
(57)
1/2" NPT Inlets
1/2" NPT Outlet
2"
(51)
2-1/2"
(64)
5/16" (8) Ø
(6) Holes
