92 Bradyprinter 200MVP and 300MVP User’s Guide
56,QWHUIDFH
This printer is configured as Data Terminal Equipment (DTE). The serial data cable
used to connect the printer to the host computer is one of two styles:
• 9-pin to 25-pin cable – (null modem cable) must have a 9-pin “D” type (DB-9S)
connector on the end that is plugged into the serial port at the computer and a
25-pin “D” type (DB-25P) connector on the other end that is plugged into the

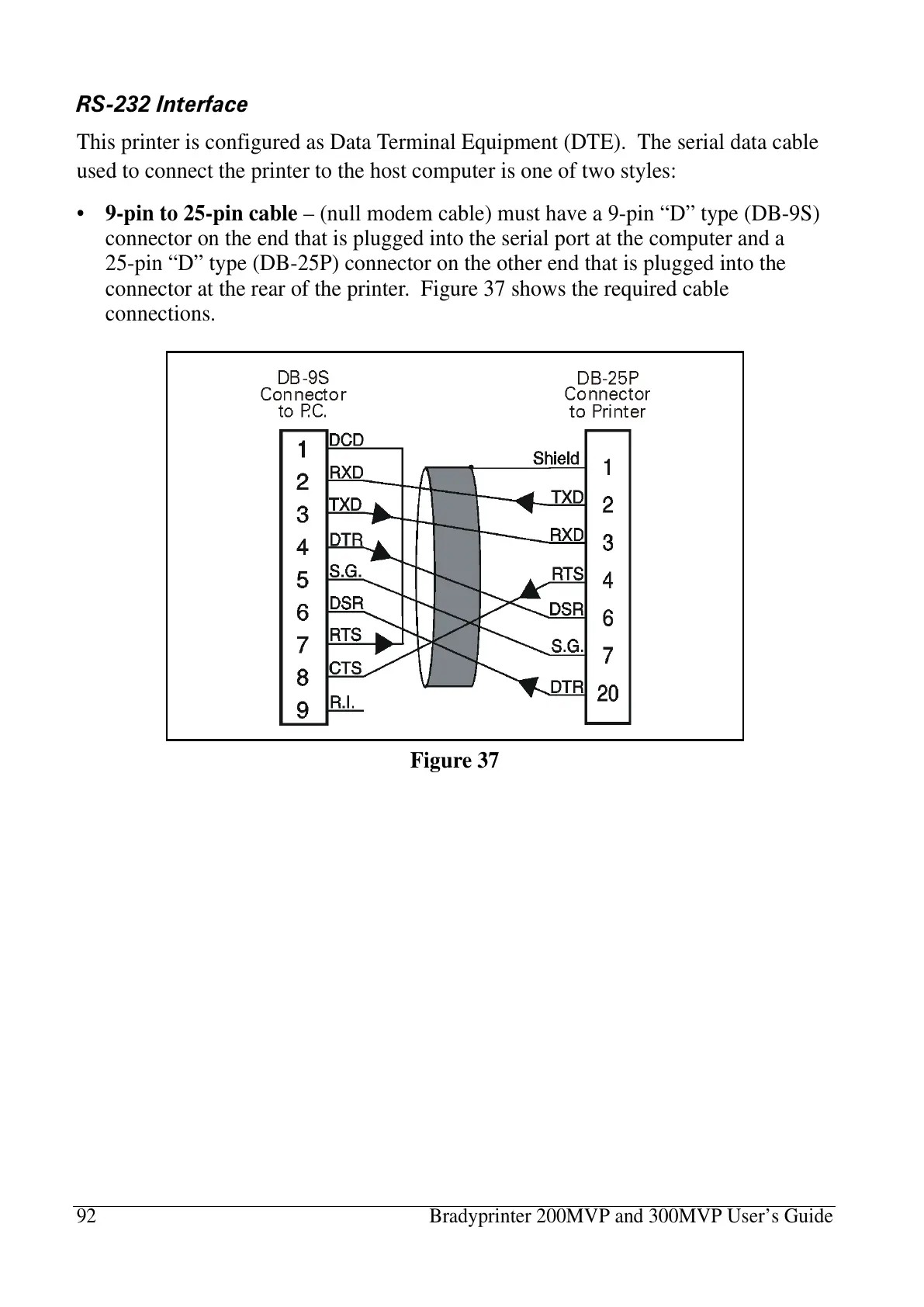

connector at the rear of the printer. Figure 37 shows the required cable
connections.
Figure 37
