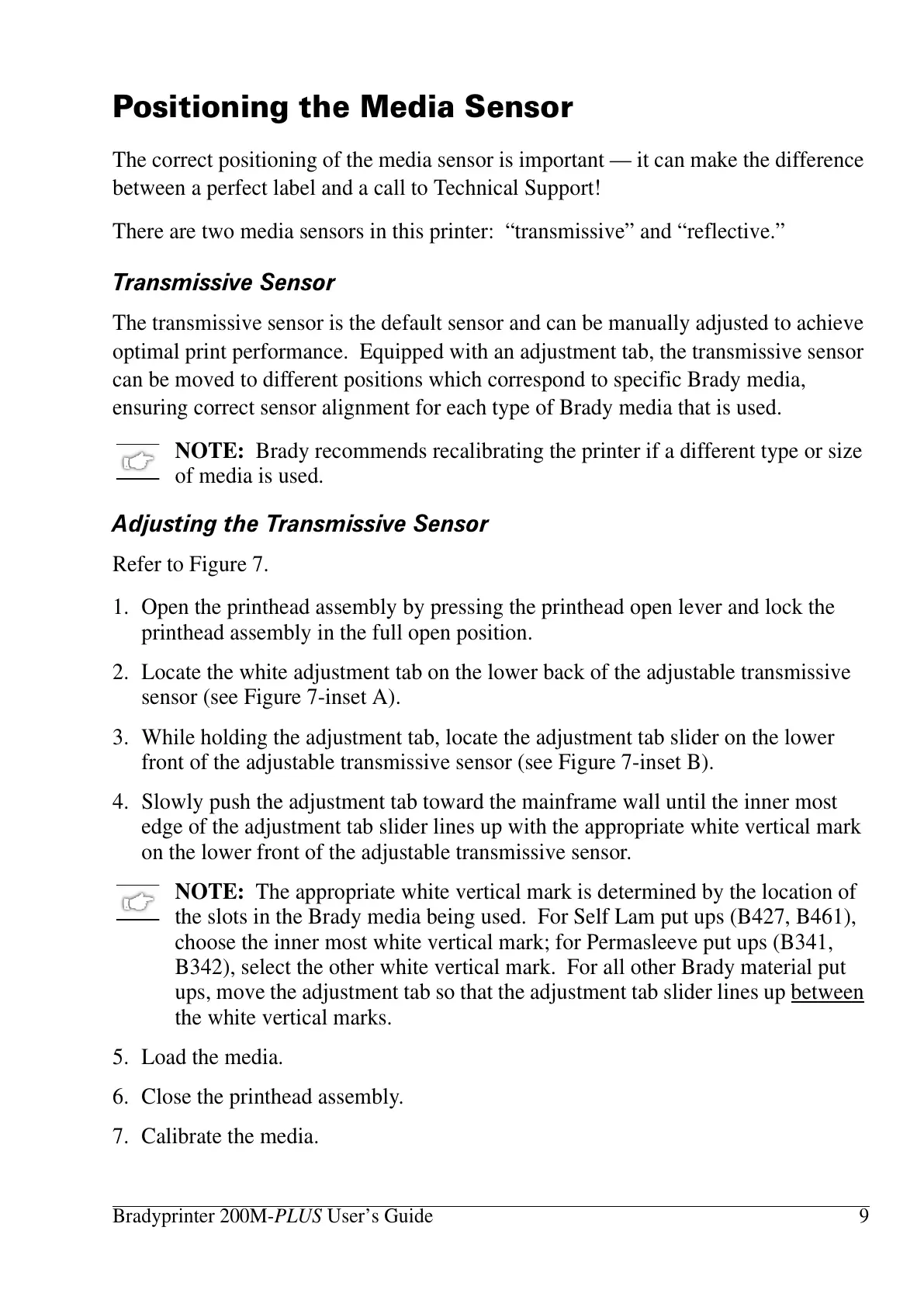

Bradyprinter 200M-PLUS User’s Guide 9
3RVLWLRQLQJWKH0HGLD6HQVRU
The correct positioning of the media sensor is important — it can make the difference
between a perfect label and a call to Technical Support!
There are two media sensors in this printer: “transmissive” and “reflective.”
7UDQVPLVVLYH6HQVRU
The transmissive sensor is the default sensor and can be manually adjusted to achieve
optimal print performance. Equipped with an adjustment tab, the transmissive sensor
can be moved to different positions which correspond to specific Brady media,
ensuring correct sensor alignment for each type of Brady media that is used.
NOTE: Brady recommends recalibrating the printer if a different type or size
of media is used.
$GMXVWLQJWKH7UDQVPLVVLYH6HQVRU
Refer to Figure 7.
1. Open the printhead assembly by pressing the printhead open lever and lock the
printhead assembly in the full open position.
2. Locate the white adjustment tab on the lower back of the adjustable transmissive
sensor (see Figure 7-inset A).
3. While holding the adjustment tab, locate the adjustment tab slider on the lower
front of the adjustable transmissive sensor (see Figure 7-inset B).
4. Slowly push the adjustment tab toward the mainframe wall until the inner most
edge of the adjustment tab slider lines up with the appropriate white vertical mark
on the lower front of the adjustable transmissive sensor.
NOTE: The appropriate white vertical mark is determined by the location of
the slots in the Brady media being used. For Self Lam put ups (B427, B461),
choose the inner most white vertical mark; for Permasleeve put ups (B341,
B342), select the other white vertical mark. For all other Brady material put
ups, move the adjustment tab so that the adjustment tab slider lines up between
the white vertical marks.
5. Load the media.
6. Close the printhead assembly.
7. Calibrate the media.
