22 Bradyprinter 200MVP and 300MVP User’s Guide
5ROO0HGLD/RDGLQJ
7HDURII0RGH

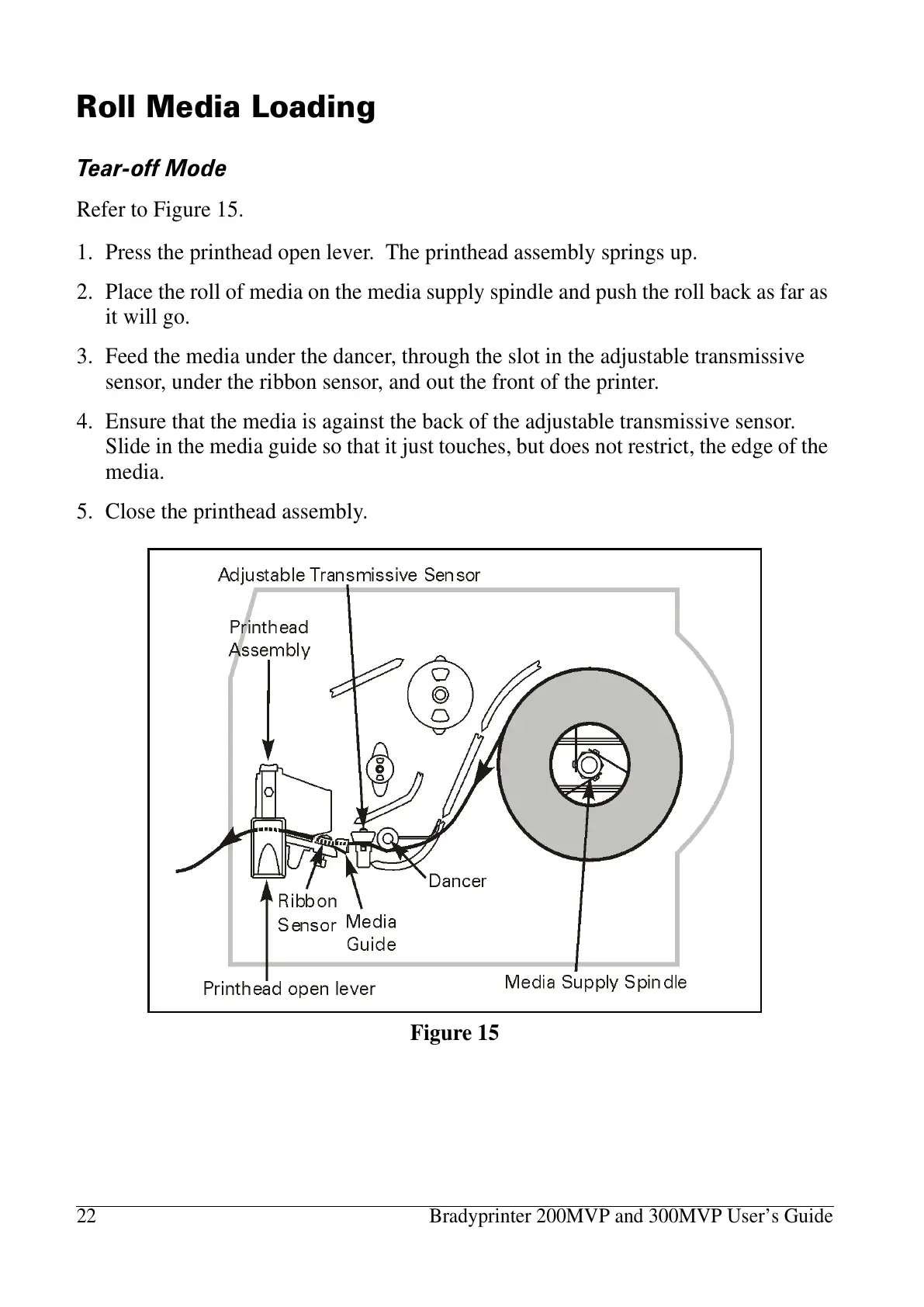

Refer to Figure 15.
1. Press the printhead open lever. The printhead assembly springs up.
2. Place the roll of media on the media supply spindle and push the roll back as far as
it will go.
3. Feed the media under the dancer, through the slot in the adjustable transmissive
sensor, under the ribbon sensor, and out the front of the printer.
4. Ensure that the media is against the back of the adjustable transmissive sensor.
Slide in the media guide so that it just touches, but does not restrict, the edge of the
media.
5. Close the printhead assembly.
Figure 15
