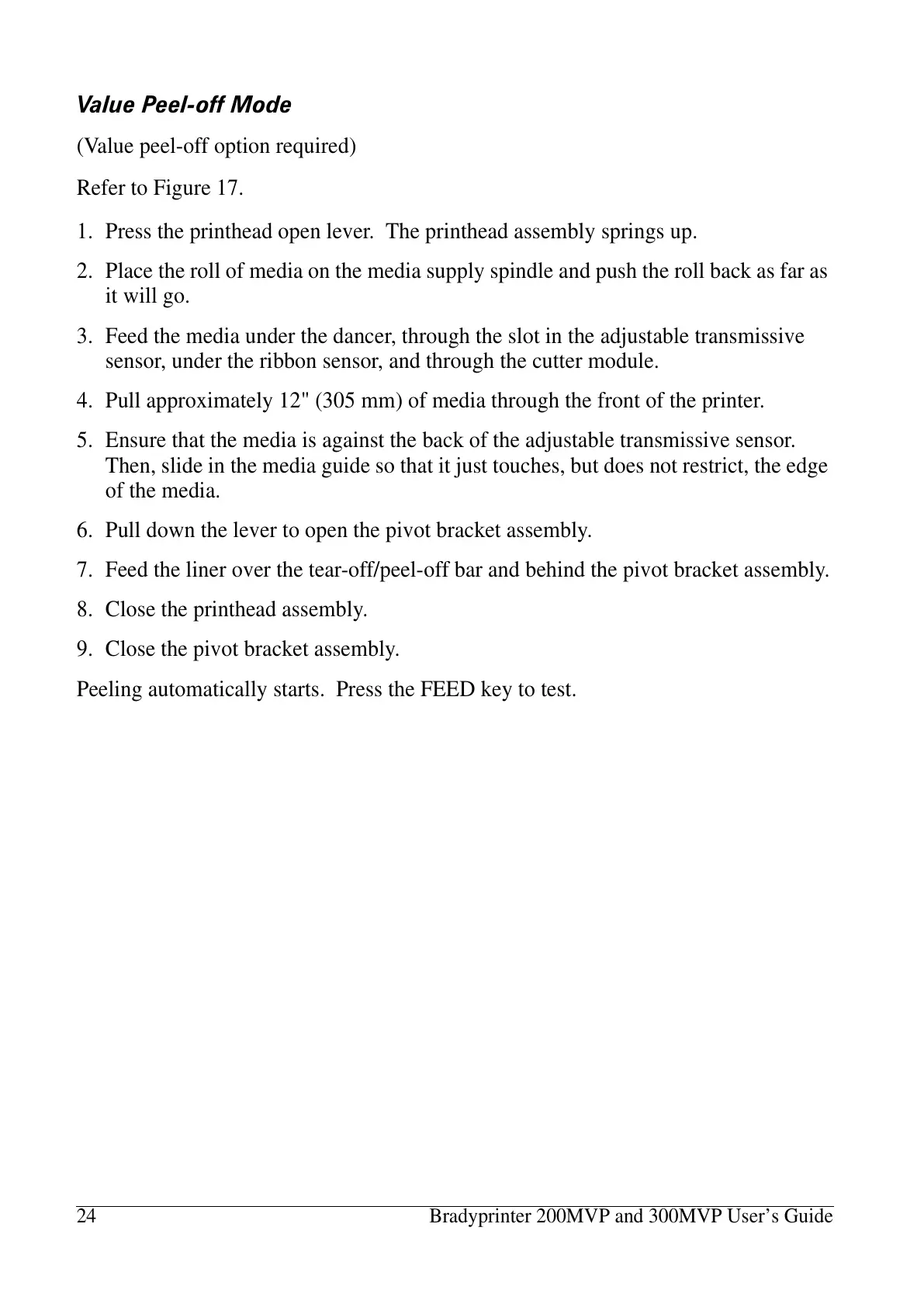

24 Bradyprinter 200MVP and 300MVP User’s Guide
9DOXH3HHORII0RGH
(Value peel-off option required)
Refer to Figure 17.
1. Press the printhead open lever. The printhead assembly springs up.
2. Place the roll of media on the media supply spindle and push the roll back as far as
it will go.
3. Feed the media under the dancer, through the slot in the adjustable transmissive
sensor, under the ribbon sensor, and through the cutter module.
4. Pull approximately 12" (305 mm) of media through the front of the printer.
5. Ensure that the media is against the back of the adjustable transmissive sensor.
Then, slide in the media guide so that it just touches, but does not restrict, the edge
of the media.
6. Pull down the lever to open the pivot bracket assembly.
7. Feed the liner over the tear-off/peel-off bar and behind the pivot bracket assembly.
8. Close the printhead assembly.
9. Close the pivot bracket assembly.
Peeling automatically starts. Press the FEED key to test.
