Suitable Mounting Locations

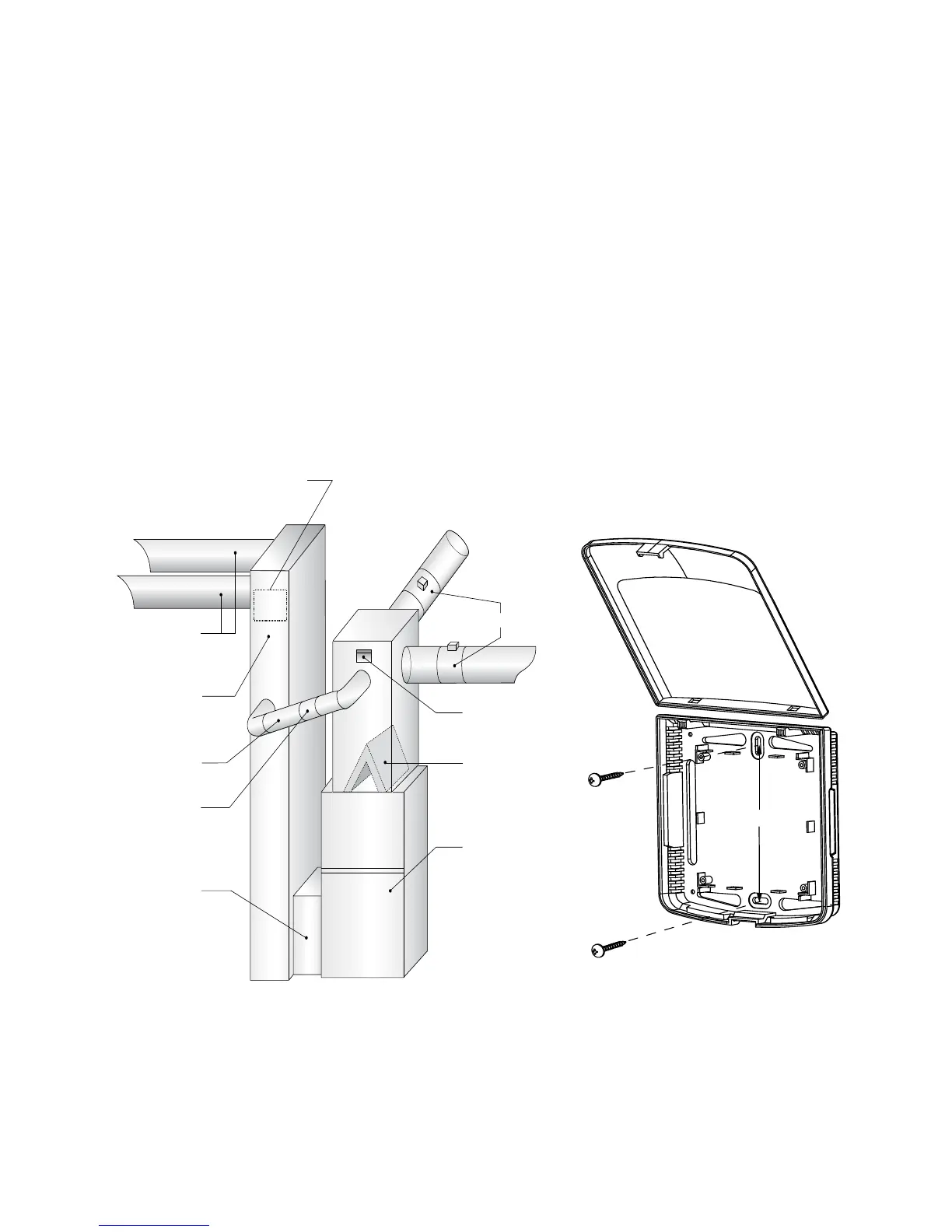

Mount the Premier 2-Zone Controller panel near the HVAC equipment (see Figure 2). The panel can be
mounted in any orientation on a wall, stud, roof truss, or the return-air plenum. For appearance, mount the
panel level.
Remove the panel cover and use the base as a template to drill mounting holes 4.5” apart (see Figure 3).
Attach the panel with appropriate screws (not included). Use mounting anchors as needed for drywall or
plaster installations.
return air
ducts
return air
plenum
bypass
duct
coil
supply air
sensor
zone dampers
electric or
barometric
bypass damper
filtration
system
furnace
typical mounting location
4.50”
Figure 3
Figure 2
