Configuration
Use the following instructions to configure the Premier 2-Zone Controller.
1. Open J1 jumper for dual transformer installations.
2. Open J2 short cycle protection jumper for system test.
Note: Replace J2 when system testing is completed or leave J2 open if compressor has built in
short cycle protection.
FLASHING
WHEN NORMAL
Braeburn
2-Zone
JI REMOVE TO SEPARATE
RH AND RC TERMINAL
J2-SHORT CYCLE
PROTECTION
EMERGENCY
HEAT
ON OFF
RH
RC
Y
G
W1
EH
W2
O/B
C
EQUIPMENT
HEAT PUMP
DUAL FUEL
O
ELEC/HP
15
ACTIVE
ZONE1
NON HP
NORMAL
REV VALVE B
FAN GAS
OPP CALL 20
LOCKOUT NONE
PRIORITY ALL

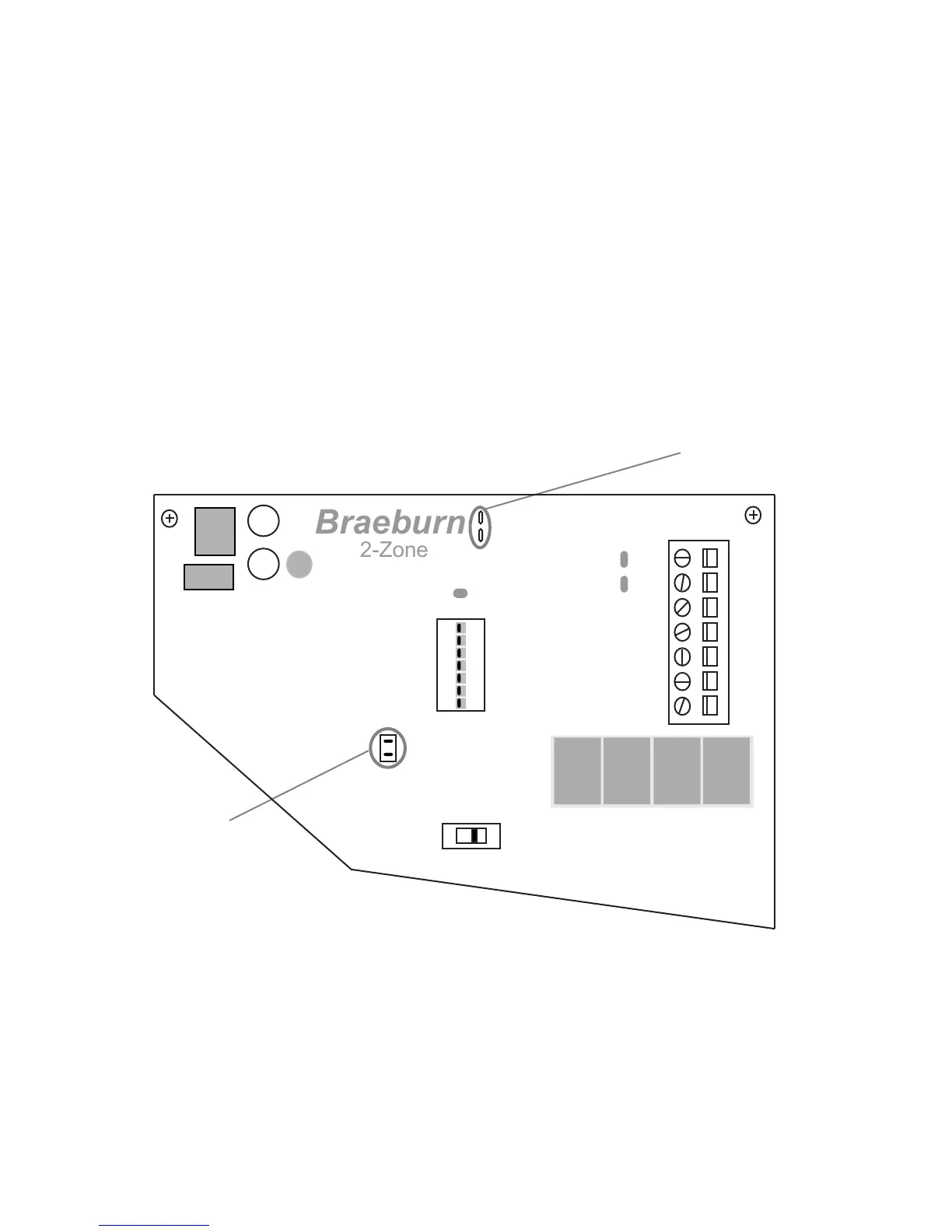

J2 jumper
J1 jumper
Figure 4
