TROUBLESHOOTING
6
cont.

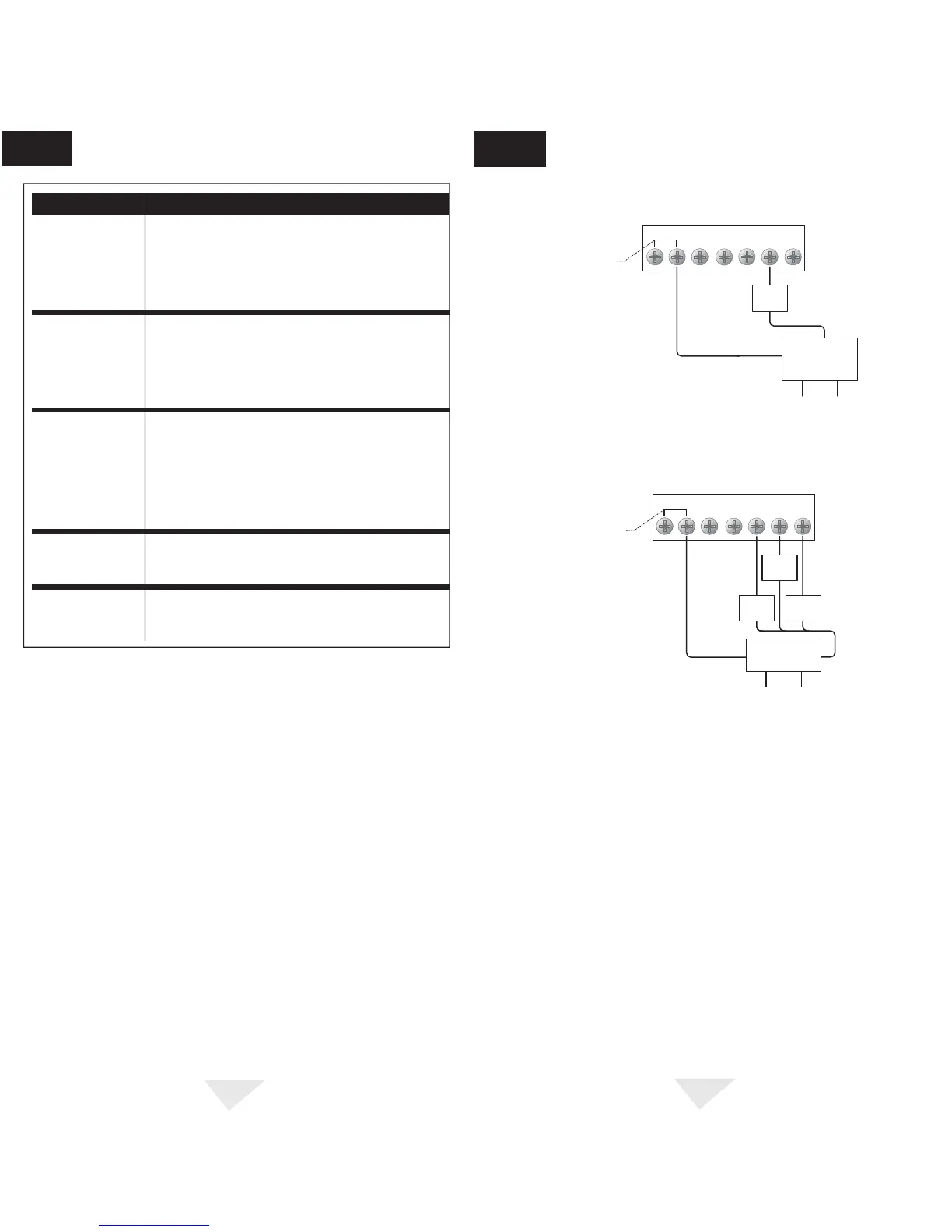

WIRING DIAGRAMS
7
Rc Rh B
Factory Installed
Jumper
Typical 4-Wire Single Transformer Heating and Cooling System
O Y W G
Heat
Control
Cool
Control
24 Volt AC
Transformer
120
Volt AC
Hot Side
Transformer
Typical 2-Wire 24 Volt AC or 250mV - 750mV Millivolt Heating Systems
Rc Rh B O Y W G
Factory Installed
Jumper
Heat
Control
24 Volt AC
Transformer
or Thermopile
120
Volt AC
Hot Side
Transformer
SYMPTOM POTENTIAL SOLUTION
Thermostat will not
allow me to program
a set point
temperature higher
than 90˚ F (32˚ C).
This is above the normal thermostat temperature setting range
of 45˚ to 90˚ F (7˚ to 32˚ C).
Thermostat will not
allow me to program
a set point
temperature lower
than 45˚ F (7˚ C).
This is below the normal thermostat temperature setting range
of 45˚ to 90˚ F (7˚ to 32˚ C).
Fan continues to run
all the time whether
the system is on
or off.
Check that the fan control switch is in the AUTO position. This
will allow the fan to run only when the heating or cooling system
is turned on and running.
Check thermostat wiring to make sure that the fan control
wiring is connected to the correct terminals on the wiring
terminal block. See Installation and Wiring Diagrams sections
of this manual.
The room is too
warm or too cold.
See Review Set Temperature section of this manual to verify the
current set point and make any modifications that are necessary.
Thermostat is in Adaptive Recovery Mode- (see section 5.7).
System turns on
prior to the end of
a setback period.
NOTE: For heating or cooling only system, ignore opposite connection.
Fan
Control

Braeburn 2000 Specifications

General

Brand	Braeburn
Model	2000
Category	Thermostat
Language	English
