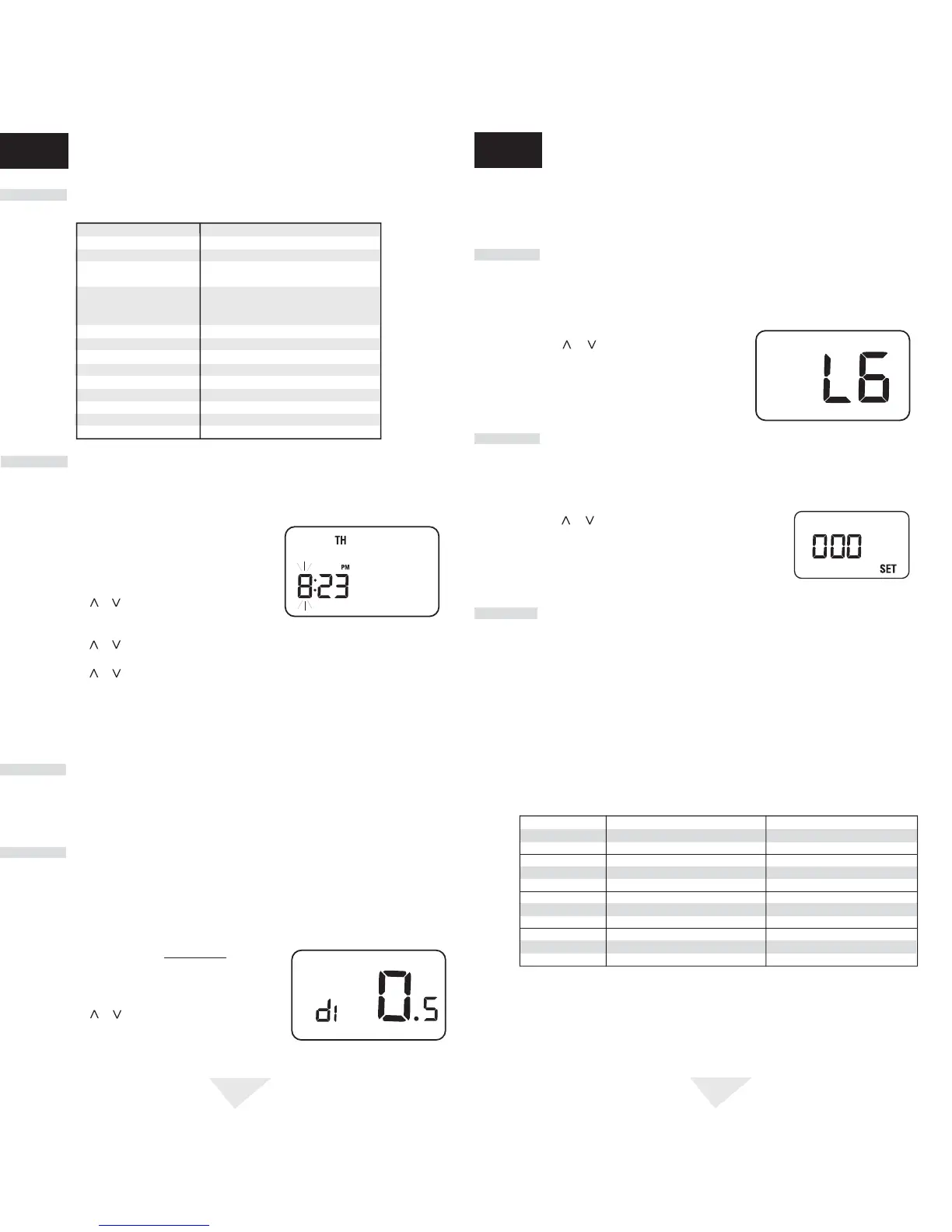

4
5
cont.
PROGRAMMING
4
4.2
Setting Current Time of Day and Day of Week
NOTE: It is important for you to set the current time of day (note AM/PM indicator in
display), and the current day of week correctly to avoid problems with program execution.
PROGRAMMING
4
4.1
Default Thermostat Settings
Function Status After Reset
Operation Mode Normal Operating Mode
Temperature Hold Extended and Temporary Hold Cleared
Clock 12:00 pm, Monday
Room Temperature 70˚ F (21.0˚ C), to be renewed within
5 seconds
Setpoint Temperature According to system switch:
62˚ F (17.0˚ C) for Heat and Off
83˚ F (28.0˚ C) for Cool
Temperature Scale ˚F or ˚C dependent on switch setting
Operating Program DAY program, Monday
Low Battery Warning Off, to be renewed within 5 seconds
Temperature Differential 0.5˚ F (0.25˚ C)
Short Cycle Protection Timer Reset
Output Relays Off
Filter Check Monitor 0 days-off
Extended Hold Indefinite
Adaptive Recovery Mode Reset
4.4
Setting Your Energy Saving Programs–Tips Before Starting
It is important for you to set the current time of day (note the AM/PM indicator in the display), and
the current day of week correctly to avoid problems with program execution. This must be done
prior to entering any program settings.
The heating and cooling programs have both separate setpoint times and setpoint temperatures.
This thermostat is pre-programmed with weekday and weekend setpoint times and temperatures
recommended by the Environmental Protection Agency and the U.S. Department of Energy in
their ENERGY STAR® program. These settings provide efficient energy savings during normal
heating and cooling modes of operation. If you desire to use the setting in the table, no
further programming is necessary. Review these time and temperature settings prior to
establishing your personal program settings to maximize your savings, and minimize
programming requirements.
NOTE: The thermostat will return to normal operating mode automatically after 15
seconds if no key is pressed. It will also return to normal operating mode immediately if
the RETURN button is pressed.
1.
When in normal operating mode, press the
DAY/TIME keypad button. The LCD display will be
cleared except for the time, am/pm indicator and
the day of the week. The hour portion of the
time will flash.
2.
Press the or button to set the current hour.
3.
Press the DAY/TIME button again, the minute portion
of the time will flash.
4.
Press the or button to set the current minute.
5.
Press the DAY/TIME button again, the day of the week indicator will flash.
6.
Press the or button to set the current day of the week.
7.
Press the DAY/TIME button again and the thermostat will return to normal operating mode.
4.3
Setting Thermostat User Options
The default user options are compatible with most systems and applications. They are normally
set at the time of installation and usually do not require modification under normal operating
conditions. If you desire to change these settings, simply follow the instructions below.
NOTE: The temperature differential settings are the same for both the heating and
cooling systems.
The default setting is 0.5˚ F (0.25˚ C). The room temperature must change 0.5˚ F (0.25˚ C) from
the setpoint temperature before the thermostat will initiate the system in heating or cooling.
NOTE: Once you have finished setting the temperature differential, you can wait 15
seconds and the thermostat will automatically return to the normal operation mode.
Otherwise, you can press the RETURN button to set the extended hold time.
Setting the Temperature Differential
Setting the Extended Hold Time (see also section 5.3)
The default setting is Long (indefinite) Hold. If the HOLD feature is activated, the current setpoint
will be held until HOLD is released.
3. After pressing the RETURN button again, the display will show " HOLD LG", where LG is
indefinite hold.
4. Press the or button to change the Extended
Hold time from indefinite (LG) to 24 hours (SH).
5.
Press the RETURN button again to set the Filter
Check Monitor or wait 15 seconds for the thermostat
to return to the normal mode.
HOLD
Weekday Weekend
MORN
DAY
EVE
NIGHT
Setting Filter Check Monitor (see also section 5.8)
The default setting is 0 days (Filter monitor disabled).
6.
After pressing the RETURN button again, the display will show "FILT XXX SET" where XXX
is the Filter Monitor interval.
7.
Press the or button to change the Filter Monitor interval
to the desired value of 0 (disabled), 30, 60, 90, 120, or
180 days.
8.
Press the RETURN button again or wait 15 seconds for the
thermostat to return to the normal mode.
FILT
Make sure you place the system switch in the HEAT or COOL modes of operation as appropriate.
You should not enter a program in the OFF position.
When you place the system switch in the COOL or HEAT modes of operation, the appropriate
indicator will also appear in the LCD display when the system is running.
When you place the system switch in the OFF mode the display will indicate OFF.
1.
In normal operating mode, press and hold the RETURN
button for 4 seconds. The LCD display will show
"d1 x", where "x" equals the ˚F / ˚C differential setting.
This is the current temperature differential setting.
2. Press the or button to set the temperature
differential to your desired setting of 0.5˚, 1˚, or 2˚ F
(0.25˚, 0.5˚ or 1˚ C).
4.3.1
4.3.2
4.3.3
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 83˚ F (28˚ C)
Time: 8:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 78˚ F (26˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 78˚ F (26˚ C)
