7 Installer Manual
NOTE: This thermostat ships configured as a 1H/1C conventional
thermostat. Confirm installer settings. See page 8.
INSTRUCTIONS
DAY/ TIME
BACK NEXT
1
2
9
3 4 5 6
7
8
10

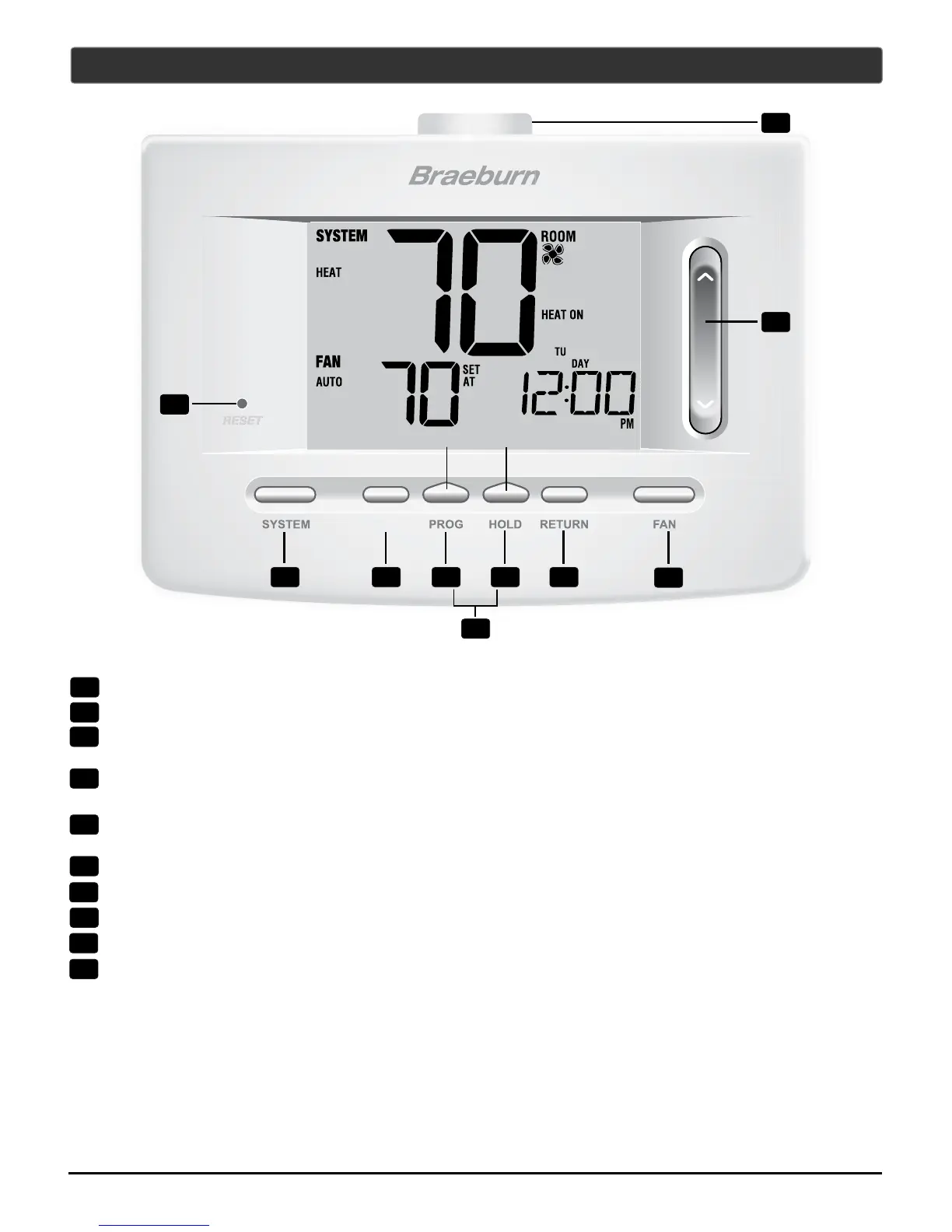

Reset Button ................................... Resets current time, program and user settings
SYSTEM Button ................................ Selects the system you want to control
DAY/TIME Button ............................. Sets the current time and day of the week
PROG Button .................................... Selects programming mode or press for 3 seconds to select SpeedSet
®
BACK Button* ................................... Secondary function of the PROG button - moves back a setting
HOLD Button .................................... Enters/Exits the HOLD mode (program bypass)
NEXT Button* ................................... Secondary function of the HOLD button - moves to next setting
RETURN Button ................................ Returns to normal mode from program or setting modes
FAN Button ....................................... Selects the system fan mode
Quick Reference Instructions ......... Stored in slot located at top of thermostat
SpeedBar
®
...................................... Increases or decreases settings (time, temperature, etc.)
Outdoor Temperature ...................... If a Braeburn
®
outdoor sensor was connected you can view the outdoor
temperature by pressing the PROG and HOLD buttons at the same time.
Installer Clear Button ...................... Located on back of thermostat body - clears all settings
Battery Compartment ...................... Located in the back of thermostat
Thermostat
1
2
3
4
5
6
7
8
9
10
* BACK and NEXT are secondary functions of the PROG and HOLD buttons. When in programming or
configuration modes, BACK and NEXT appear in the display, indicating that the PROG and HOLD buttons
now function as BACK and NEXT.
3
Quick Reference
To Next Page
