Braeburn 6300 - Humidification; Dehumidification (6400 Only)

33 User Manual
Humidification and Dehumidification (6400 only)
The Braeburn
®
model 6400 can be used to control a whole
house humidifier or dehumidifier. Humidification can be
controlled manually from the thermostat or automatically
when a Braeburn outdoor remote sensor is installed and
configured in the Installer Settings (See Installer Manual).

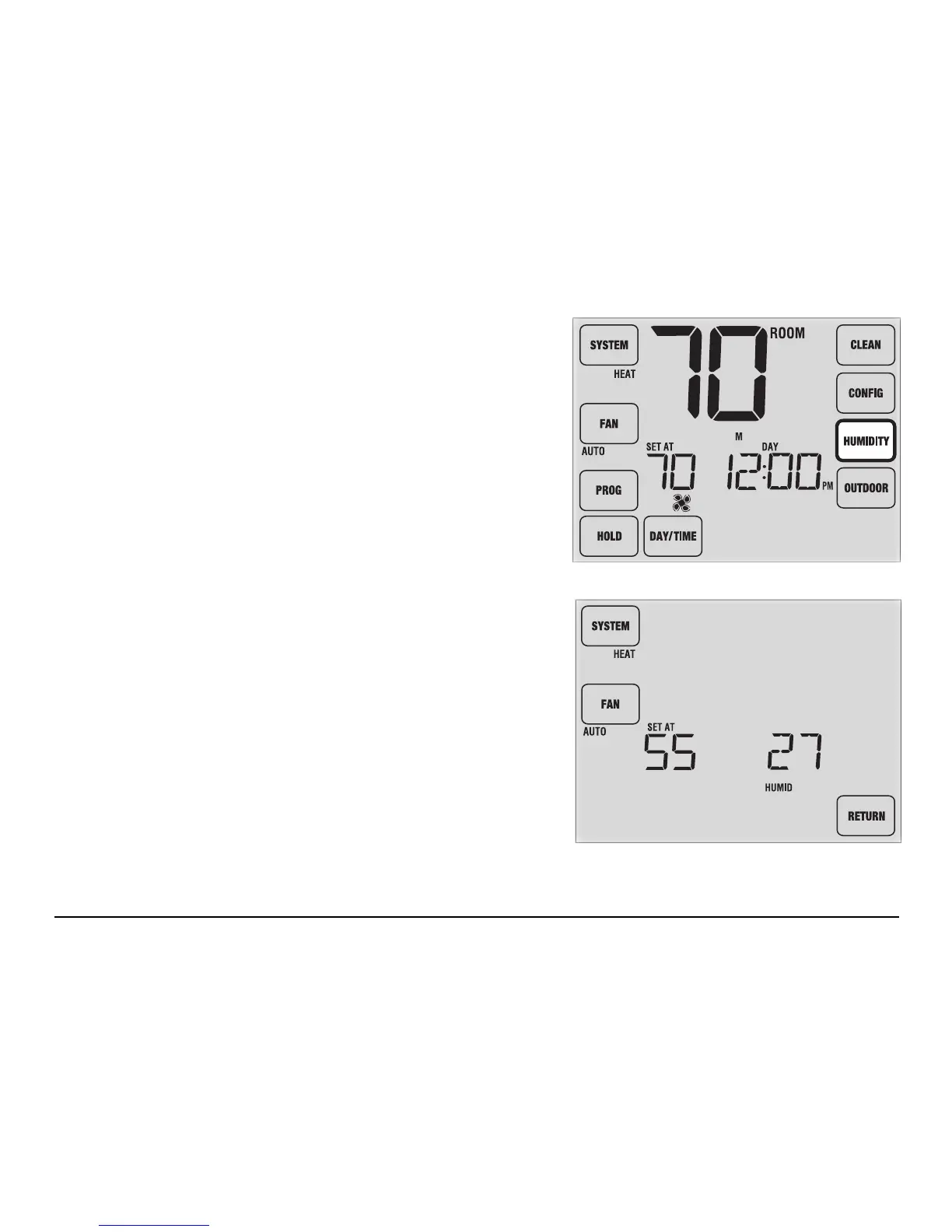

To view the current humidity level at the thermostat, touch the
HUMIDITY TouchPad
™
(Figure 1). If humidication and dehumidication
are not enabled, you will only see the current humidity level.
If humidication is enabled you will see the current humidity
level along with the humidication set point (Figure 2). Press the
SpeedBar
®
up or down to adjust the humidication set point.
Figure 1
Figure 2
Figure 1
Figure 2
