Model 2200

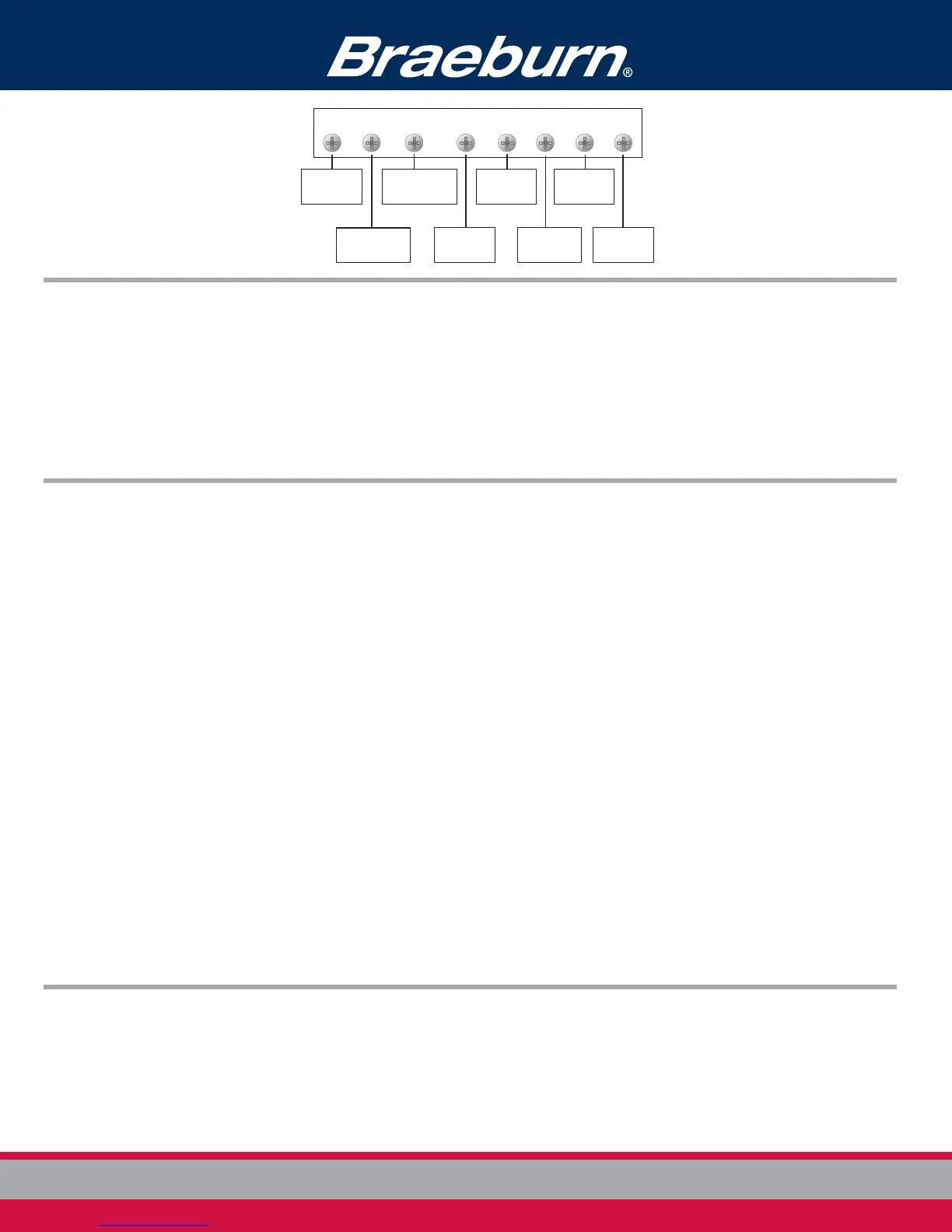

Terminal Designations
R O B C Y1 E/W1 G W2
24 Volt AC
Transformer
Compressor
Fan
Control
Auxiliary
Heat Control
Emergency
Heat Control
Transformer
Common
Product Specifications
Dimensions: 3.75” x 4.94” x 1.19”
Electric Rating: 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals)
AC Power: 18-30 Volt AC
DC Power: 3.0 Volts DC
(2 “AA” Alkaline batteries included)
Compatibility: Multi-stage conventional or heat pump systems
with up to two stages of heating and one stage
of cooling
Control Range: 45° to 90° F (7° to 32° C)
Display Range: 40° to 99° F (4° to 37° C)
Accuracy: +/- 1° F (+/- .5° C)
Temperature
Differential:
1st Stage - .5°, 1°, or 2° F (.25°, .5°, or 1° C)
2nd Stage - 2°, 3°, 4°, 5°, or 6° F
(1°, 1.5°, 2°, 2.5°, or 3° C)
Storage Temperature: 14° to 140° F (-10° to 60° C)
Operating Humidity: 5% to 95% Relative Humidity
Terminations: R, O, B, C, Y1, E/W1, G, W2
Accessories
2950 Universal Wall Plate (6.5” x 6.5” x .125”)
5970 Universal Thermostat Guard
Shipping Information
INDIVIDUAL CARTON MASTER CARTON
Dimensions: 4.33” x 5.63” x 1.86” Quantity: 6
Weight: .58 lbs. Dimensions: 5.94” x 11.81” x 4.80”
Cubic Feet: .19
Weight: 3.7 lbs.
Braeburn 2200 Replaces
Honeywell
®
TH2210*, TH4210, T8011*, T8024
White-Rodgers
®
1F72-151*, 1F73-174*
Robertshaw
®
RS3210*, 8625*, 8625-1*, 9615*, 9620*
ICM
®
SC3201*
LuxPro
®
PSPH521L*
*Verify specific multi-stage heat pump application requirements.
All trademarks are the property of their respective owners.
FREE Contractor Branding Available!
Visit our website (www.braeburnonline.com) for more information, contact your
local distributor or call our sales department toll-free at 866.268.5599 (U.S.),
+1.630.844.1968 (Outside the U.S.).
Date: _____________________________________________
Job Name: _________________________________________
Location: __________________________________________
Contractor: ________________________________________
Engineer: __________________________________________
Model No.: _________________________________________
Submitted By: ______________________________________
Submitted For Approval: ___________ Record: ___________
Architectural Specifications
The digital programmable thermostat shall be a Braeburn
®
, model number 2200, 3.75” high x 4.94” wide x 1.19” deep, powered independently with
either 24 Volt AC or with two “AA” alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional or heat pump
systems with up to two stages of heating and one stage of cooling. The thermostat shall have a bright blue backlight display, front loading battery
door and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/-
1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, filter
check monitor, adaptive recovery mode (ARM™), separate heating and cooling set point program times and temperatures, and auxiliary heat indicator.
Thermostat shall have three level low battery indication and a front reset button will return user settings to default values when pressed. The thermostat
can be mounted to a horizontal junction box.
Reversing Valve
Cool Active
Reversing Valve
Heat Active
©2005 Braeburn Systems LLC • U.S. Patents D527,288; D531,527 and other patents pending • All Rights Reserved • 2200-300-004
Braeburn Systems LLC • 2215 Cornell Avenue • Montgomery, IL 60538 • Toll Free 866.268.5599 (U.S.) +1.630.844.1968 (Outside the U.S.)
