5.3.1 Viewing(the(current(list(of(alarms(
Select!“Alarm-List”!from!the!status!menu,!this!will!display!a!list!of!the!current!
system!alarms!
!
!

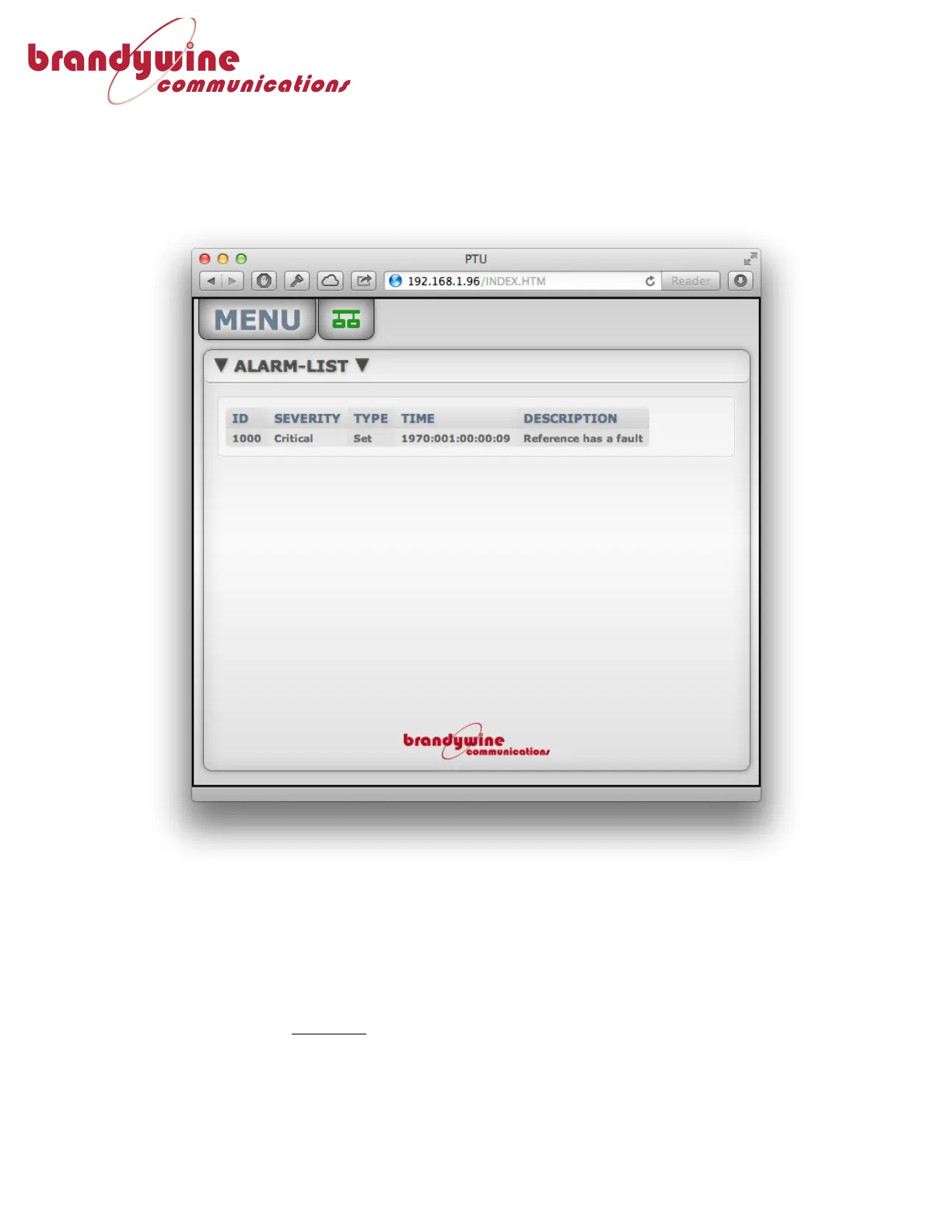

Figure+5+-+Alarm+List+
The!possible!alarms!that!the!PTU!can!have!are!as!follows:!
"No!internal!1PPS!generated!from!the!FPGA"!
"Serial!FLASH!failed"!
"Serial!EEPROM!memory!failed"!
"FPGA!failed!to!initialize!or!load"!
"Oscillator!(rubidium)!is!showing!unlocked"!
"Battery!under!voltage!fault"!
"Battery!over!voltage!fault"!
“Reference!has!a!fault.”!
