The service book IV / ALFA 5 03-9940.186
Remote control and GSM control
Remote (wireless) or GSM control can be connected to the independent heater BREEZE IV, IV and WIND
ATESO ALFA, but only to the switching timer or the manual control. The heater can be controlled using the
module GD-04 David heating via mobile phone. Advanced GD-04 David can also be controlled with a

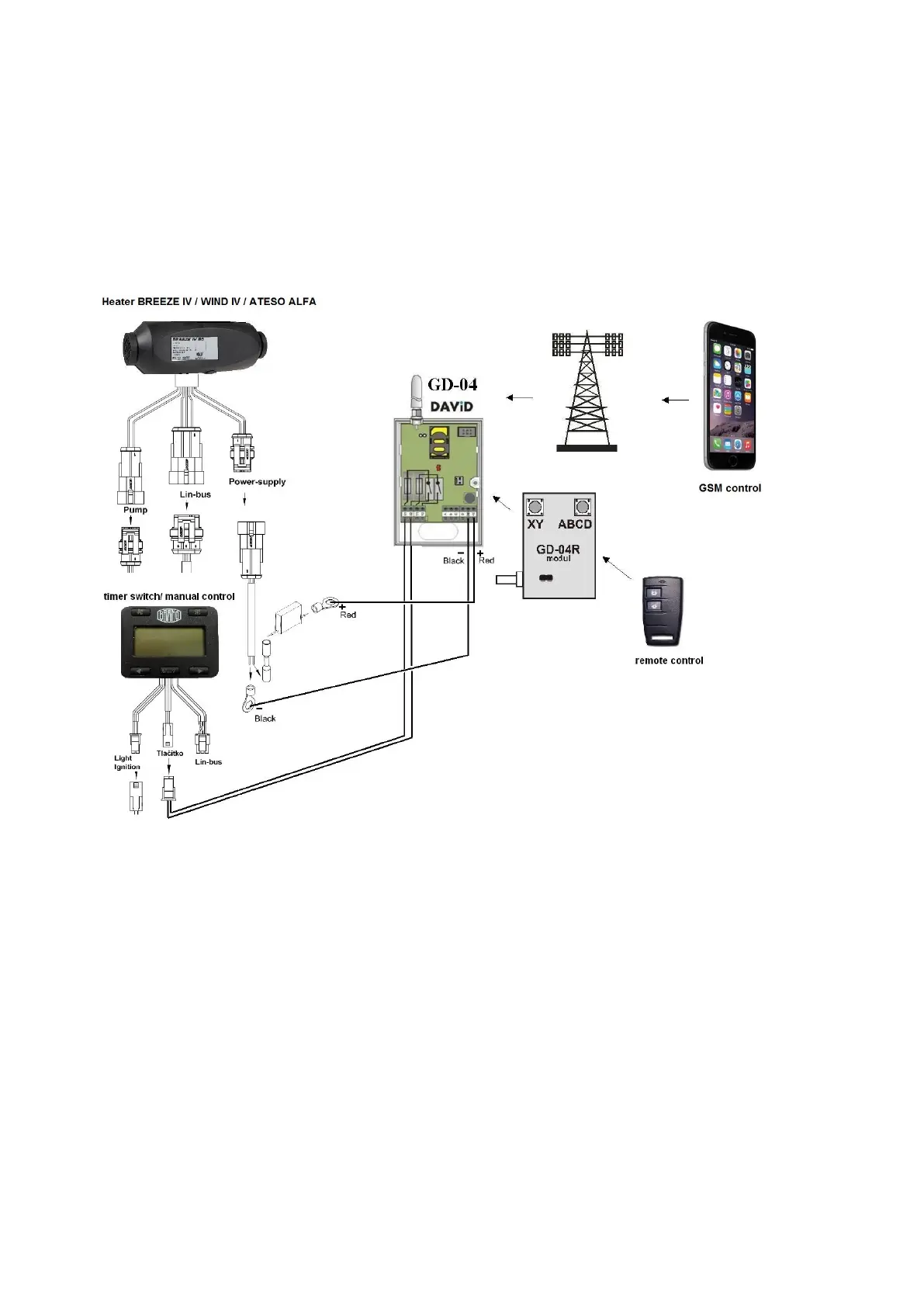

remote control. Connection diagram is in the picture.
Connection to the control - output relay of a module GD-04 is connected to a 2-pin connector for an
external switch on the timer or the manual control. In this case, it is possible to start the heater in the same
mode, which is set to the timer or the manual control
INSTRUCTIONS FOR INSTALATION
The heater
The heater can be mounted to horizontally with vertically downward exhaust (e.g. floor mounting of the
heated space or also in the vertical position, exhaust and air intake are positioned in a common horizontal
plane (e.g. wall mounting of the heated space). It is also possible to mount the heater in the range 0°- 90°
between said positions. When mounting in other than horizontal position it should be ensured that the glow
plug is always upward (see Fig.). Glow plug should always be easily accessible. Heater is intended for
installation in the passenger compartment or cargo, or in a special sealable cabinet outside the heated
space. Installation of the heater is performed on a prepared flat surface with the appropriate holes (see
drawings in annexes) and this is mounted in four nuts. Straightening of undulating surface on which the
heater is mounted should be made by shaking toward the heater.
