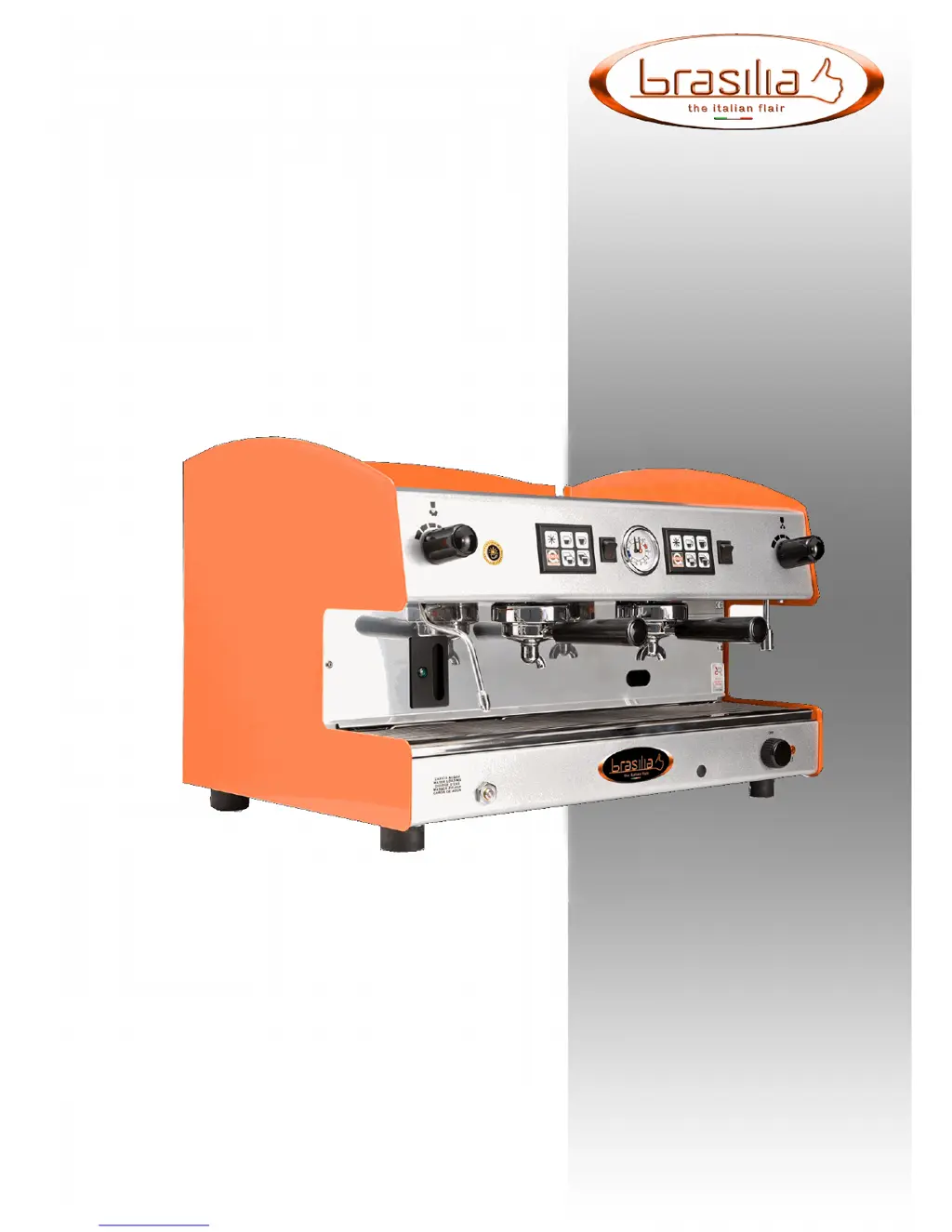

Brasilia ROMA - User Manual

Other manuals for Brasilia ROMA

Technical Manual56 pages

Questions and Answers

B
Brandon MilesSep 12, 2025
Why are irregular doses delivered in Brasilia Coffee Maker?
- J
  Jessica MillerSep 13, 2025
  If your Brasilia Coffee Maker is delivering irregular doses (dosed version only), there could be a leakage in the infra-red doser, the doser’s rotor might not turn freely, the delivery solenoid valve could be leaking from the discharge, the expansion valves might be leaking during delivery, or the infusor might be operating irregularly. If there is humidity on the outside of the doser or on the diode holder flange, replace the doser. Replace the doser if the rotor doesn’t turn freely. Check and replace the delivery solenoid valve if necessary. Check the calibration and eventually the seal of the expansion valves, being careful not to fully unscrew the expansion valve regulation union with the boiler under pressure. Check and replace the infusor if necessary.
L
Lori ChoiAug 25, 2025
Why won't my Brasilia Coffee Maker group deliver even with boiler pressure?
- I
  Isaiah LucasAug 25, 2025
  If your Brasilia Coffee Maker's boiler reaches pressure but the group won't deliver, the control center fuses might be blown (in dosed versions), the delivery switch could be defective, or the solenoid valve might not be opening. Check and replace the fuses or delivery switch if necessary.
S
Sarah CampbellAug 25, 2025
Why is my Brasilia ROMA Coffee Maker leaking between the group and filter?
- J
  Jeffrey SanchezAug 26, 2025
  If a leakage occurs between the group and the filter holder during delivery with your Brasilia Coffee Maker, the underpan seal may be defective, or the edge of the filter may be irregular. Replace the seal.
B
Brandon TaylorSep 23, 2025
Why the buzzer sounds in Brasilia Coffee Maker?
- E
  erikwilsonSep 23, 2025
  If the buzzer sounds on your Brasilia Coffee Maker, it could be due to a failed level probe, a troubleshooting issue with the electronic box, or an empty reservoir (for models not connected to the water mains). Check and replace the level probe or electronic box if necessary. If the reservoir is empty, refill it with softened water.
N
Nancy MaldonadoSep 13, 2025
What to do if the water level control provides water when it should not and the level gauge light is on in Brasilia Coffee Maker?
- F
  Frank EvansSep 13, 2025
  If your Brasilia Coffee Maker's water level control is providing water when it shouldn't, and the level gauge light is on, it could be due to a broken electrical connection in the level sensor/control center or frame earthing/control center, a dirty level sensor, or a defective electronic control center. Repair the electrical connections if broken. Clean the level sensor, being careful not to unthread it from the insulator when dismantling, but remove it complete with the union. Replace the electronic control center if defective.
T
Tiffany SimmonsSep 23, 2025
Why leakage of water from the group valves locking occurs in Brasilia Coffee Maker?
- B
  Brian DeleonSep 23, 2025
  If there is a leakage of water from the group valves locking on your Brasilia Coffee Maker, the seal is detective. Replace it.
T
Troy JacksonSep 6, 2025
Why are there leakages from the pipes of my Brasilia ROMA?
- M
  Mr. Gregory DeckerSep 6, 2025
  If leakages occur from the water and steam pipes of your Brasilia Coffee Maker when the taps are shut, the sealing gasket may be defective, or there may be a foreign body in the seal housing. Check and replace the gasket if necessary.
C
Carol ShawSep 7, 2025
Why is my Brasilia Coffee Maker leaking under the tap knobs?
- K
  kempdawnSep 7, 2025
  If water or steam leakages occur under the tap knobs of your Brasilia Coffee Maker during opening, the tap axis seals are likely defective. Check and replace them if necessary.
J
jmarksSep 23, 2025
Why leakage of water from the block ring-nut occurs during manual loading in Brasilia Coffee Maker?
- B
  Bryan LittleSep 23, 2025
  If there's a leakage of water from the block ring-nut during manual loading of your Brasilia Coffee Maker, the tap axis seal is detective. Replace it.
A
Alexis Cabrera MDAug 30, 2025
What to do if water level keeps rising in Brasilia Coffee Maker boiler?
- C
  Chris AndrewsAug 31, 2025
  If the water level in your Brasilia Coffee Maker's boiler continues to rise until it escapes from the safety valve, the level sensor might not be connected. There could also be a foreign body inside the water level control solenoid valve or in the seal housing, or the seal may be worn. Check and replace the level sensor if necessary. Inspect the water level control solenoid valve and seal housing for foreign bodies, and check and replace the seal if it's worn.

Summary

1. SAFETY AND WARNING

2. DEFINITION

2.A. ROMA INTERNAL COMPONENTS

Details the internal parts of the ROMA coffee machine, including boiler, group, and heat exchangers.

2.B. ROMA CAPPUCCINO INTERNAL COMPONENTS

Explains the internal components specific to the ROMA CAPPUCCINO model, such as the vibration pump.

3. PARTS IDENTIFICATION

3.A. ROMA PARTS IDENTIFICATION

Identifies and labels the external parts of the ROMA model using numbered diagrams.

3.C. ROMA CAPPUCCINO PARTS IDENTIFICATION

Illustrates and labels the external components of the ROMA CAPPUCCINO model with diagrams.

SECTION “A” - INSTALLATION AND MAINTENANCE

4. INSTALLATION AND CONNECTIONS

Covers procedures for unpacking and connecting the coffee machine, including general information on connections.

4.A. HOW TO REMOVE THE MACHINE FROM THE PACKAGE

Provides step-by-step instructions for safely removing the machine from its packaging.

4.B. GENERAL INFORMATION ON CONNECTIONS

Offers general advice and requirements for hydraulic and electric connections of the machine.

4.C. WATER CONNECTION

Details the specific steps for connecting the machine to the water supply, including softener integration.

4.D. ELECTRIC CONNECTION

Outlines the procedure for electrical connection, emphasizing safety and compliance with regulations.

4.D.1. EQUIPOTENTIAL CONNECTION

Explains the necessity and method of equipotential connection for electrical safety.

5. OPERATING PROCEDURES

5.A. START UP

Guides on how to start up the ROMA and ROMA PLUS models, including water filling and heating.

5.B. START UP - VERSION WITH GAS SYSTEM

Details the startup procedure for models equipped with a gas heating system, including manual lighting.

5.C. ADJUSTMENTS

Explains how authorized personnel can adjust pump pressure, boiler pressure, and cappuccino settings.

6. DIGIT AUTOMATIC VERSION PROGRAMMING

6.A. ROMA DOSES PROGRAMMING

Provides instructions for programming coffee doses for the ROMA model via the touch key pad.

6.B. ROMA CAPPUCCINO DOSES PROGRAMMING

Details the procedure for programming coffee doses for the ROMA CAPPUCCINO model.

6.C. GROUND COFFEE DOSE PROGRAMMING - ROMA PLUS MODEL

Explains how to program the dose of ground coffee for the ROMA PLUS model using the grinder touch key pad.

6.D. TRACTABLE WATER LITRES PROGRAMMING - ONLY FOR ROMA PLUS MODEL

Describes how to program water litres for softener substitution on ROMA PLUS models.

7. TROUBLESHOOTING AND SOLUTIONS

8. MAINTENANCE

8.A. BOILER WATER DRAINING - ROMA AND ROMA PLUS MODELS

Instructions for draining boiler water on ROMA and ROMA PLUS models, recommending daily water change for small boilers.

8.B. INSTRUCTIONS FOR REGENERATING THE SOFTENER

Details the process for regenerating the water softener on ROMA and ROMA CAPPUCCINO models to prevent calcification.

SECTION “B” - USER INSTRUCTIONS

9. BEVERAGES DELIVERY DESCRIPTION

Provides general guidance on delivering beverages, including advice for use and coffee delivery procedures.

9.A. COFFEE DELIVERY

Step-by-step guide on how to prepare and deliver coffee, covering both digit and "P" versions.

9.B. HOW TO MAKE CAPPUCCINO

Explains the process for frothing milk and making a cappuccino, including options for models with a frothing device.

9.C. STEAM AND WATER DELIVERY

Details how to deliver steam and hot water, with specific instructions for ROMA PLUS models.

10. CLEANING

10.A. SANITATIONS

Outlines basic hygiene processes and considerations for handling sensitive coffee ingredients like milk and sugar.

10.B. DAILY CLEANING PROCEDURES

Describes daily cleaning tasks for steam pipes, groups, and drip trays to maintain performance and hygiene.

10.C. WEEKLY CLEANING PROCEDURES

Details weekly cleaning procedures, including automatic washing cycles for the groups and outer case cleaning.

11. DISMANTLING
