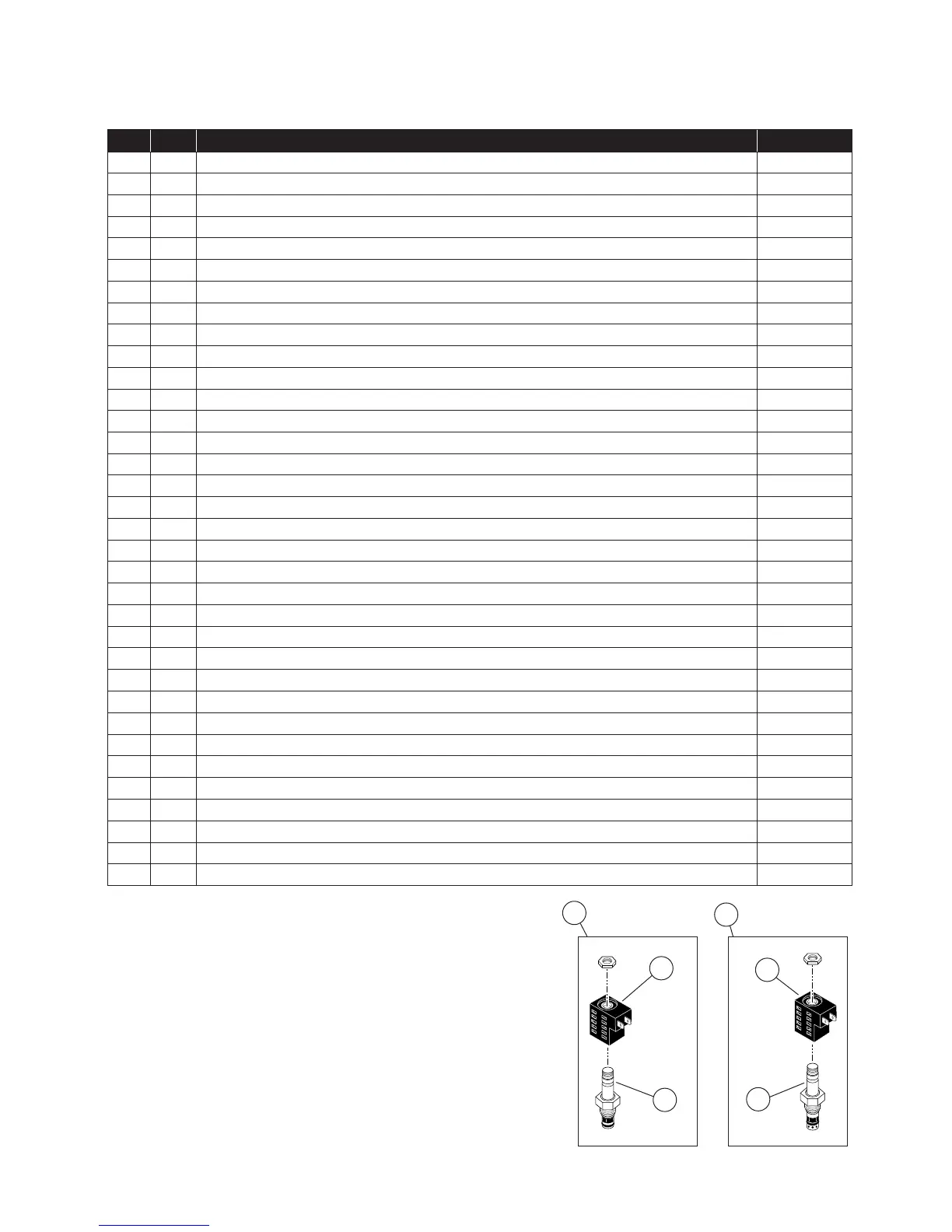

Page 7
Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M268-0113)12V - with Reservoir/with Backup Pump) 31038-12V
2 1 Solenoid, 4-Post (See Pump Module Exploded View for Solenoid Selection)
3 1 Power Cable, Up Solenoid to Motor 29049
4 1 Motor, Pump - 12 Volt - Low RPM 31350
5 1 Elbow, 65° - Male 7/16-20 SAE O-Ring to 7/16-20 SAE O-Ring Boss 26578
6 2 Valve Assembly, “Down / Bridge” (complete) 31348K
7 3 Coil (only), “Down / Bridge” Valve - (shown below) 31122
8 2 Cartridge (only), “Down / Bridge” Valve - (shown below) 26078
9 1 Valve Assembly, “Duel Relief” (complete) 31120K
10 1 Cartridge (only), “Duel Relief” Valve - (shown below) 31121
11 1 Cap, Reservoir Filler 16935
12 4 O-Ring (only), Hand Pump Mounting 17351
13 1 Hand Pump (Backup) with O-Rings (Item 12) 26074
14 3 Screw, 1/4-20 x 2-1/4”, Allen Head 26080
15 1 Clamp, Reservoir - H-48 (M259) 17069
16 1 Reservoir, Hydraulic Fluid 16934
17 1 Fitting, 90° - 1/8” NPT x 1/8” Barb - Plastic 87563
18 1 Switch, Pressure, 7/16-20 SAE O-Ring Male 31199
19 2 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
20 1 Elbow, (1) Female 7/16-20 JIC 37 Swivel - (2) Male 7/16-20 JIC 37° 26579
21 1 Hose Assembly, 1/8” (Opposite Pump Side) 16004A-086
22 1 Hose Assembly, 1/8” (Pump Side) 16004A-046
23 2 Elbow, 90°, 7/16-20 SAE O-Ring Male - 7/16-20 JIC 37° Male, Orifice 26667
24 2 Cylinder
u
C1514.3-9408
25 3 Elbow, 90°, 1/4” NPT Male to 1/4” Barbed 15150
26 1 Hose, Thermal Plastic - Black, 1/8” I.D. 23742R*
27 2 Connector, Plastic “Y”, 1/8” O.D. 18877
28 1 Hose Assembly, 3/16” w/Two Guards 915-2601-136
29 1 Fitting, 90° - Male 9/16-18 SAE O-Ring to Male 7/16-20 JIC 37° 87622
30 1 Cylinder, Roll Stop (Contains Items 25 & 30) 25309-05A
31 1 Handle with Grip 17206A
32 1 Diode Assembly, Up Solenoid 73906A
u Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
* Raw material items ordered and priced per inch (order specified length).
10
Cartridge
#26078
7
“Down and Bridge”
Valve (complete)
8
Cartridge
#24612
7
“Duel Relief”
Valve (complete)
6
Coil
#31122
Coil
#31122
9
To Next Page
