Page 18
Lift Installation Instructions
Power Cable (continued):
Route the power cable through an existing
vehicle access hole at the battery pack
location. Route power cable clear of
exhaust, other hot areas and moving
parts. Cut the lift cable to the necessary
length, (it must reach to within 24" of
the battery). Strip 1/2" of insulation from
the cable end and crimp the 1/4" diameter
terminal onto the cable securely (item
11 - Figure P).
Route power cable
clear of exhaust
system, other hot
areas and moving
parts. Failure to do
so may result in
serious bodily injury
and/or property
damage.

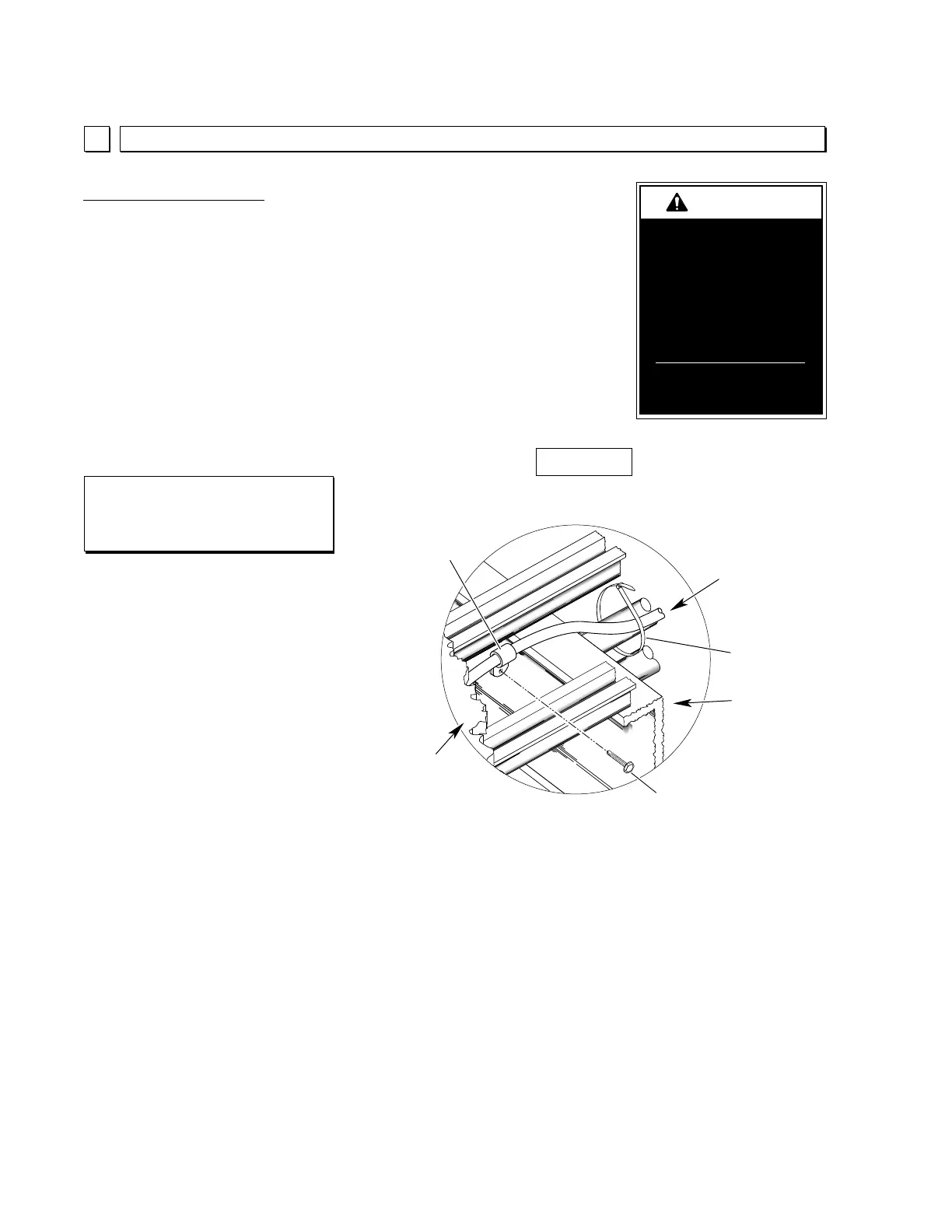

Cable Clip
Cable Tie
Power Cable
Figure O
Vehicle Floor
Vehicle Floor
Framing Member
Self-Tap Screw
3
Power Cable and Ground Cable Installation (continued)
Note: Route, cut to length and
connect the power cable before
securing the cable to the vehicle.
To Next Page
