Page 17

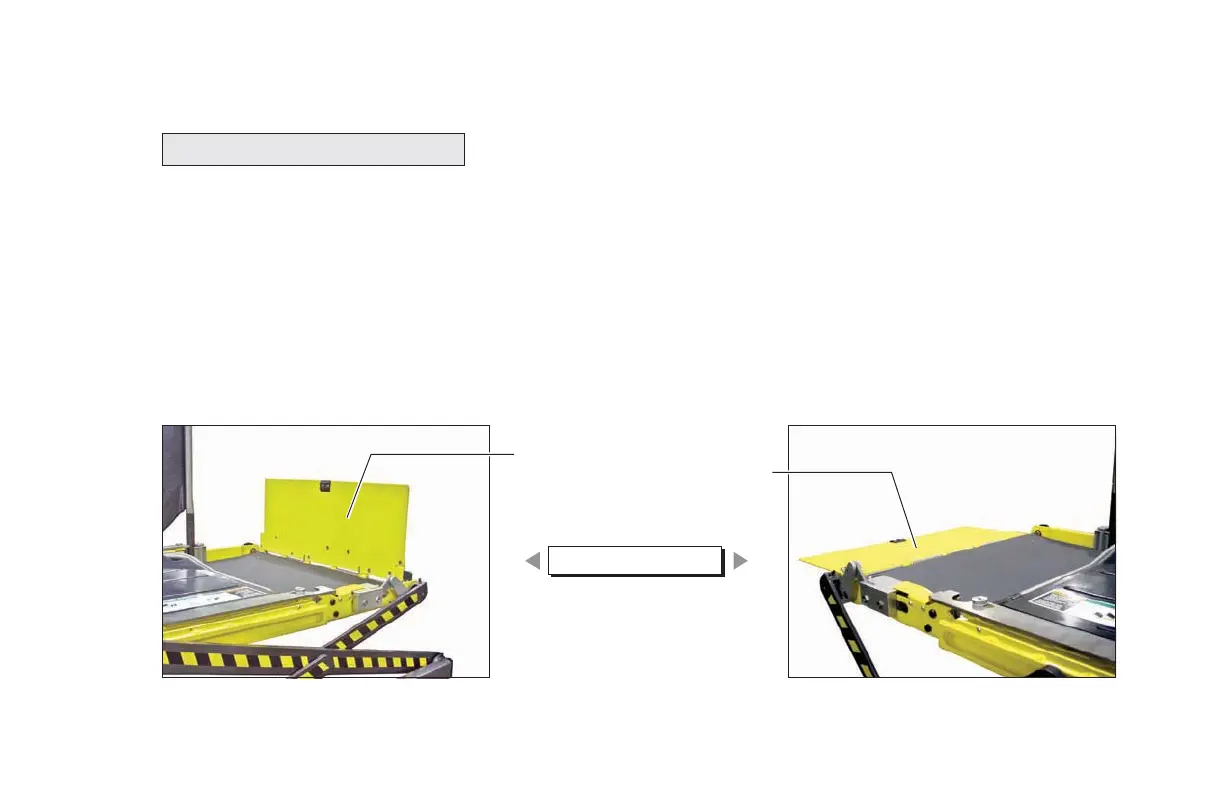

Fully Deployed
(vertical)
Inner
Roll Stop
The inner roll stop must rest
solidly on the vehicle floor
(minimum 1½" overlap).
Fully Unfolded
(horizontal)
Inner Roll Stop
(bridging position)
Lift Features
Operation Notes and Details
Inner Roll Stop: The NUV-
L855RM24 is equipped with an
automatic inner roll stop that also
serves as a bridge plate. The
spring loaded inner roll stop auto-
matically deploys (rotates) to the
vertical position when the platform
extends from the stow position.
When the UP switch is pressed
and the platform raises to floor
level, this mechanical roll stop
is automatically rotated to the
bridging (horizontal) position to
provide a bridge plate between
the platform and the vehicle floor.
The inner roll stop must rest sol-
idly on the vehicle floor (minimum
1½" overlap). The roll stop auto-
matically deploys (rotates) to the
vertical (roll stop) position as the
platform lowers (DOWN switch is
pressed).
Inner Roll Stop
