Page 35
Manual Operating Instructions
ponents necessary to manually
operate the lift. The T-handle
release cable releases and en-
gages the lift platform to allow the
platform to be manually extended
and retracted (details on pages
36 and 39). The manual hand
pump is used to manually lower
Note: The location of the pump
module and release cable var-
ies per vehicle and installation.
Standard NUVL pump module
shown.
Instructions are provided for all
steps that differ from standard
lift operation procedures. Refer
to the Lift Operating Instructions
for all normal lift operation proce-
dures. Follow all Lift Operation
Safety Precautions at all times!
Familiarize yourself with the com-
and raise the extended platform
(see pages 37 and 38).
O
P
E
N
C
L
O
S
E
OPEN
VALVE
CLOSE
W
A
RNI
N
G
81823
Push T-handle
in fully and
manually move p
latform in
and out to engage
platform
lock before dri
ving vehicle.
Failure to lock p
latform may
result in unintend
ed platform
deployment.
Unintended
platform deploymen
t may
result in serio
us bodily injury
and/or property damage.
Do not remove!

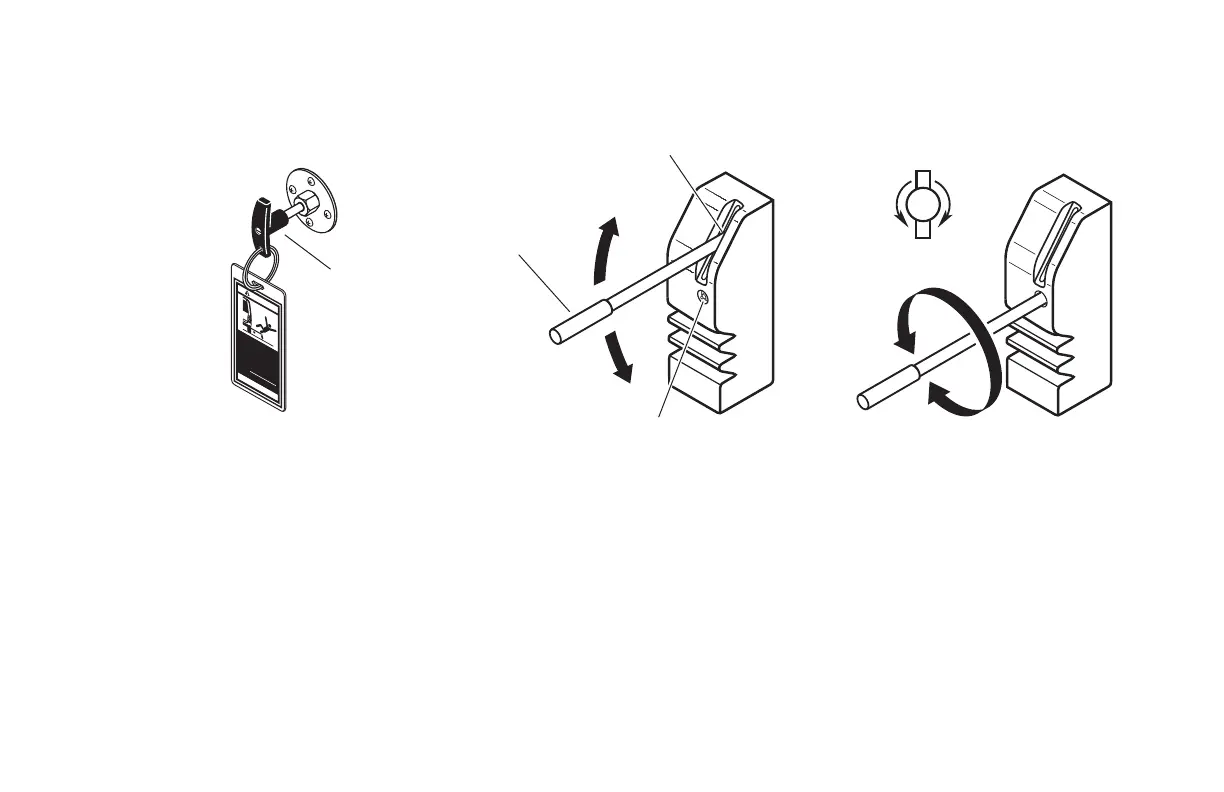

Valve
Pump
Handle
Hand Pump
T-Handle
