BraunAbility Century 2 - Hydraulic Cylinder Assembly - Main

Page 26
Exploded Views and Parts Lists

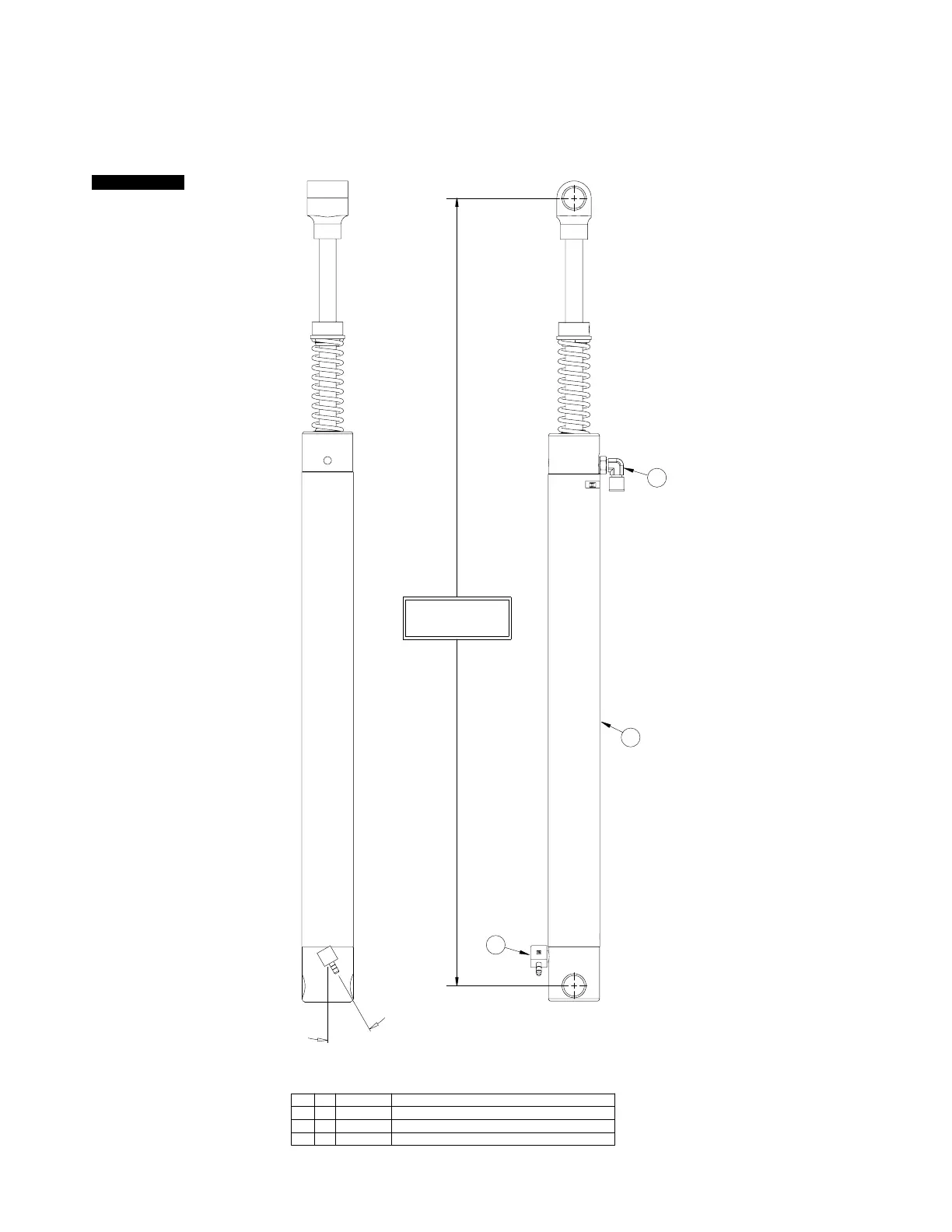

Hydraulic Cylinder Assembly - Main
RETRACTED
EXTENDED
STROKE
16.499
48.716
32.217
CYLINDER ASSY-16.499 " RET/32.217 " EXT (Includes Items 2 & 3)
ELBOW-1/8 NPT 90° 1/4" BARB
ELBOW-7/16-20 M/O-RING / 37°/ ORFICE
DESCRIPTION
402751
402043
403654
PART NO.
3
2
1
ITEM
1
1
1
QTY.
2
1
30° ±10°
3
Applicable Lifts:
ALL NDCC54S34x54's
