BraunAbility Century 2 - Lift Terminology

Page 2
UP
DOWN
32819
FOLD
UNFOLD
32820
®
Pump Module
(Rear)
Hand-Held
Pendant
Control
Base Plate
Top Parallel Arms (2)
Adjustable Quiet-Ride Stow Blocks (2)
Main Cylinders (2)
Vertical Arm Covers (4)
Opposite Pump Side
Vertical Arm
Outer Barrier
Pump Side
Vertical Arm
Bottom Parallel
Arms (2)
Platform Lights (2)
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/30°-30°”6-13-90
(of vehicle)
(of vehicle)
Outboard
Right (Front)
Lift-Tite
™
Latches (2)
Unfold Assist Compression Springs (2)
Outer Barrier
Activation Foot
Outer Barrier
Latches (2)
Platform Side Plates (2)
Platform
Left (Rear)
Inboard
Towers (2)
Threshold
Warning
Plate
Audible
Threshold
Warning
(not visible)
Visual
Threshold
Warning
Inner Roll Stop

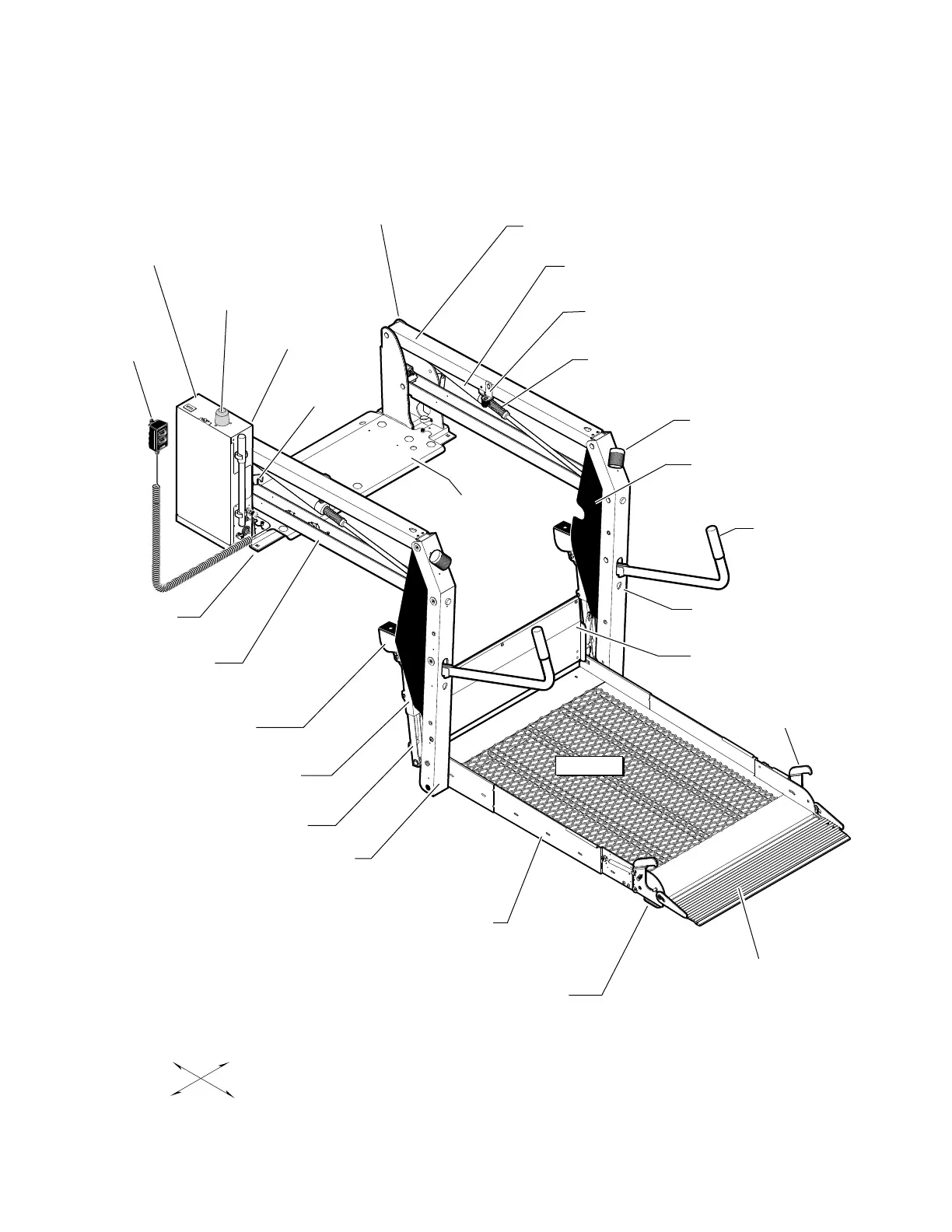

Lift Terminology
Saddle (2)
Outer Fold Arm (2)
Inner Fold Arm (2)
Handrails (2)
