BraunAbility Century 2 - Switch and Sensor Locations

Page 3

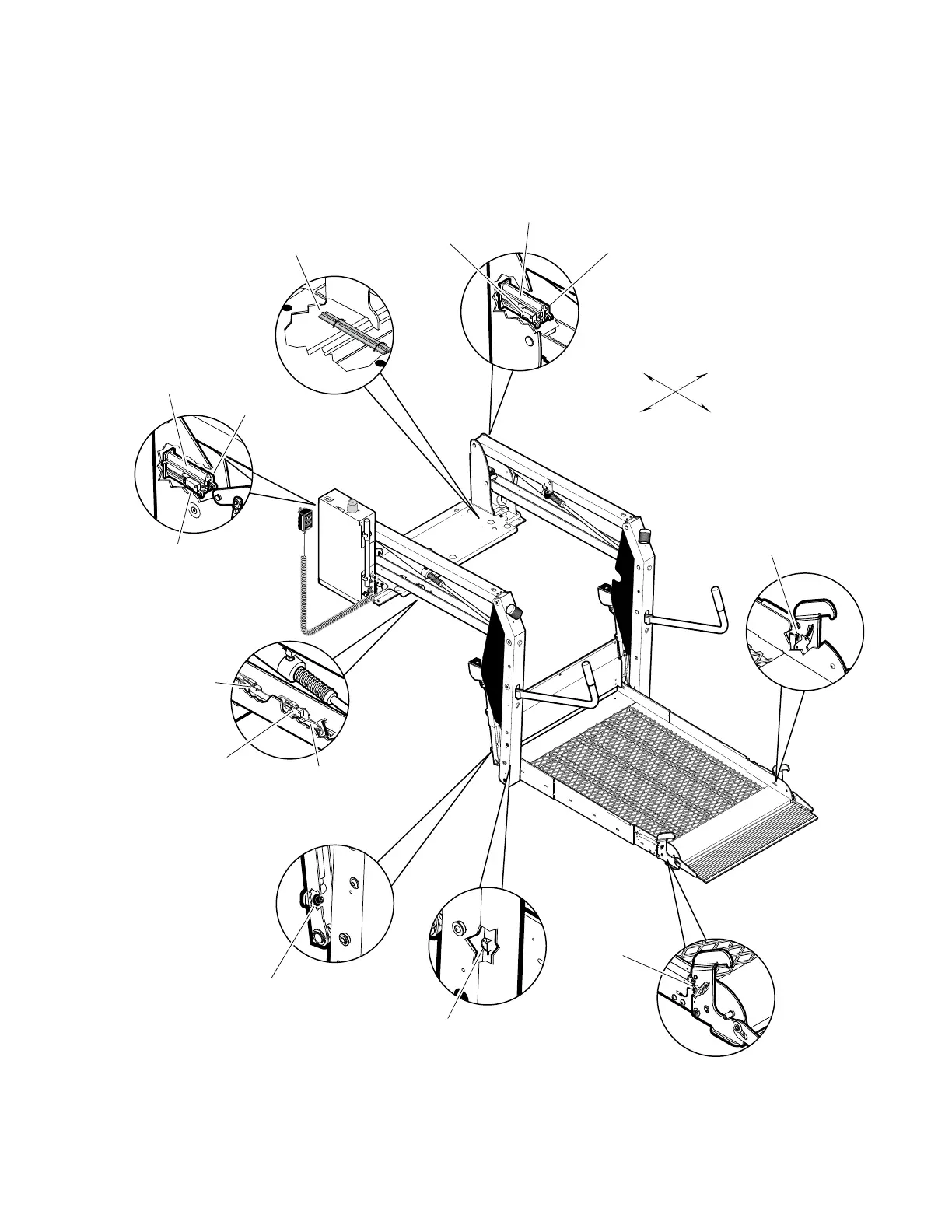

Switch and Sensor Locations
UP
DOWN
32819
FOLD
UNFOLD
32820
®
Inboard
Outboard
Right (Front)
Left (Rear)
Threshold Strip Switch
33337A (2 strips per)
*Up Microswitch
IB Occupied
Microswitch
Stow Interlock
Microswitch
IB Occupied &
Stow Interlock Assy.
32514NA-54
*Unfold
Microswitch
*Threshold Alarm
Microswitch
*Up & Unfold
Microswitch Assy.
975-4121A
*Threshold Alarm
& Partial Fold
Microswitch Assy.
975-4121A
IB Raised Switch
32519KS
*Partial Fold
Microswitch
Outer Barrier
Occupied / Raised
Microswitch (Rear)
33775A
*Note: Mirror image for
right (front) pump lifts.
Bridging
Microswitch
33689KS
Outer Barrier
Occupied / Raised
Microswitch (Front)
400374A
