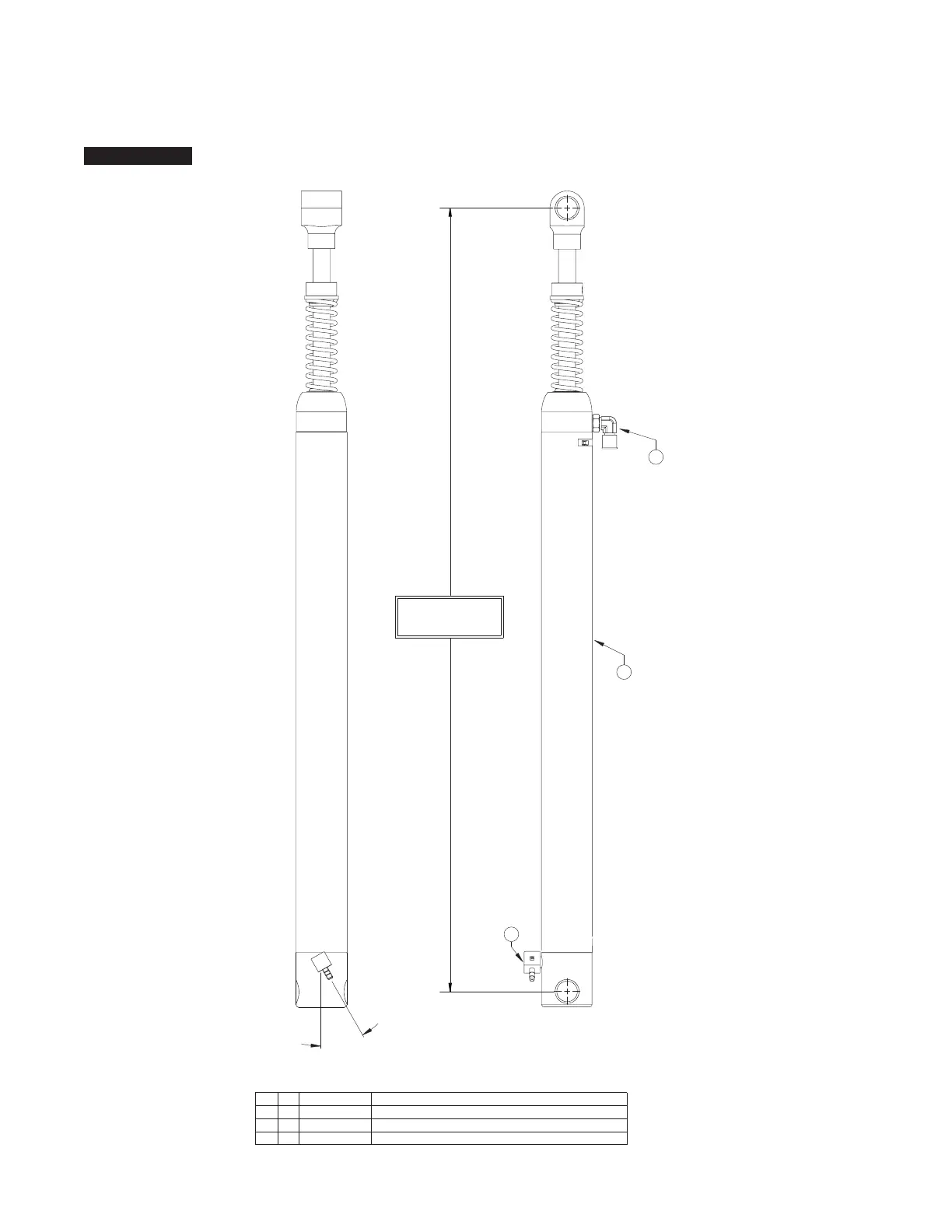

BraunAbility Millennium 2 NL - Hydraulic Cylinder Assembly - Main

Page 38
RETRACTED
EXTENDED
STROKE
14.640
43.781
29.141
CYLINDER-14.625"/29.146" RETRACTED (INCLUDES ITEMS 2 & 3)
ELBOW-1/8 NPT 90° 1/4 BARB
ELBOW-7/16-20 M/O-RNG/37*/.035 ORFICE
402751
402043
403649
3
2
1
1
1
1
DESCRIPTIONPART NO.
ITEM QTY.
30° ±10°
1
3
2
Exploded Views and Parts Lists
Hydraulic Cylinder Assembly - Main
All Lifts
Applicable Lifts:
