BraunAbility Millennium 2 NL - Platform Stop Blocks

Page 7
Platform Angle
Adjustment Screws
Adjustment Screw Allen Head
B
C

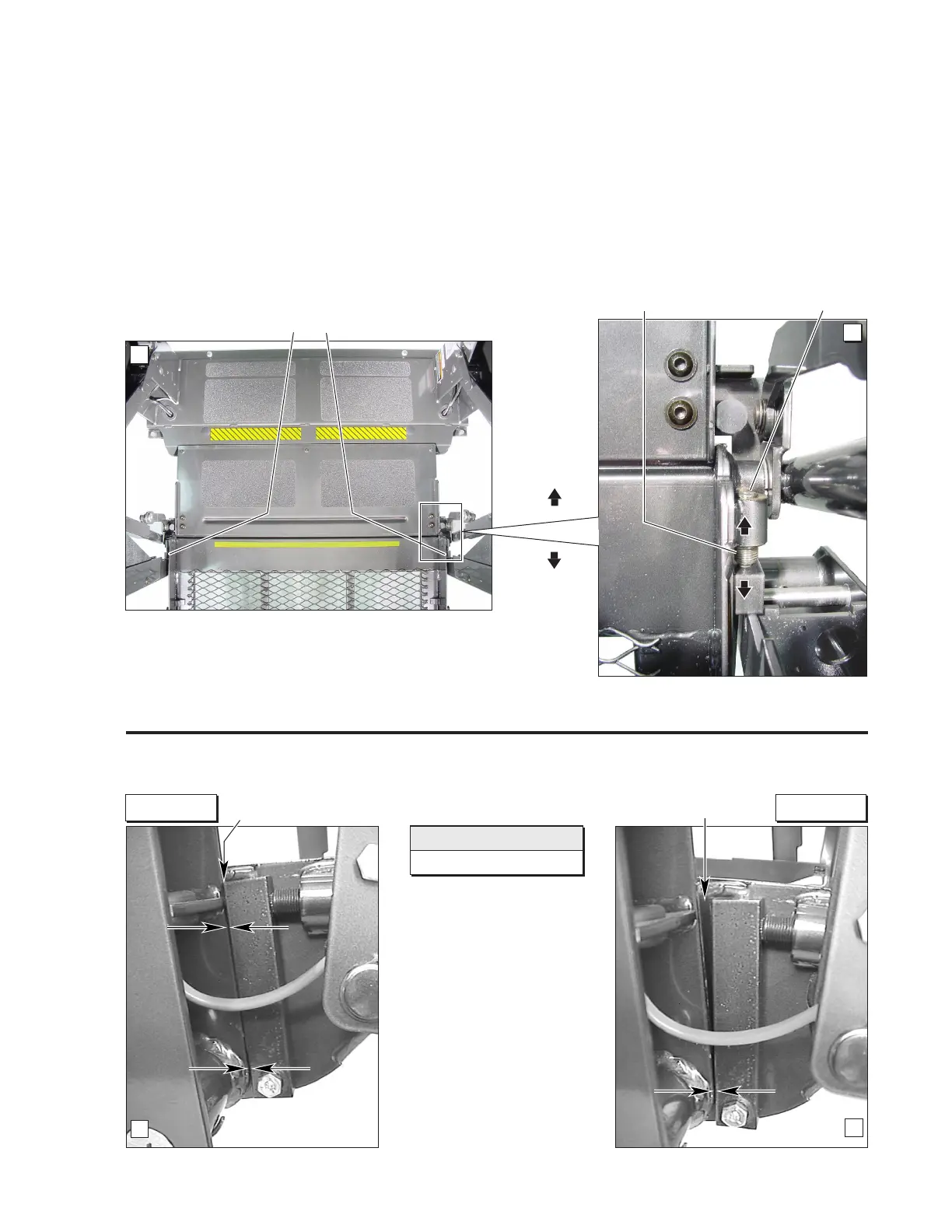

Platform Angle Adjustment
Adjustment Allen screws are
provided on each side of the lift
platform for adjusting the platform
angle. Adjust platform angle as
specied on previous page.
Platform Stop Blocks
Must make full contact. Gap not permitted.
Both stop blocks must
make full contact with the
edge of vertical arms.
D
E
Stop Block Guideline
All Lift Models
Right Wrong
Turn
clockwise
to raise
outboard
end of
platform
When adjusting platform
angle, setting oor level
position or adjusting
bridging microswitch -
ensure both stop blocks
are making full contact
with the vertical arms.
Stop
Block
Vertical
Arm
Stop
Block
Vertical
Arm
Turn
counter-
clockwise
to lower
outboard
end of
platform
To raise the outboard end of
platform - turn adjustment
screw clockwise.
To lower the outboard end
of platform - turn adjustment
screw counterclockwise.
Note: Both adjustment screws
must be adjusted equally.
Apply Loctite
®
to adjustment
screws following adjustment.
