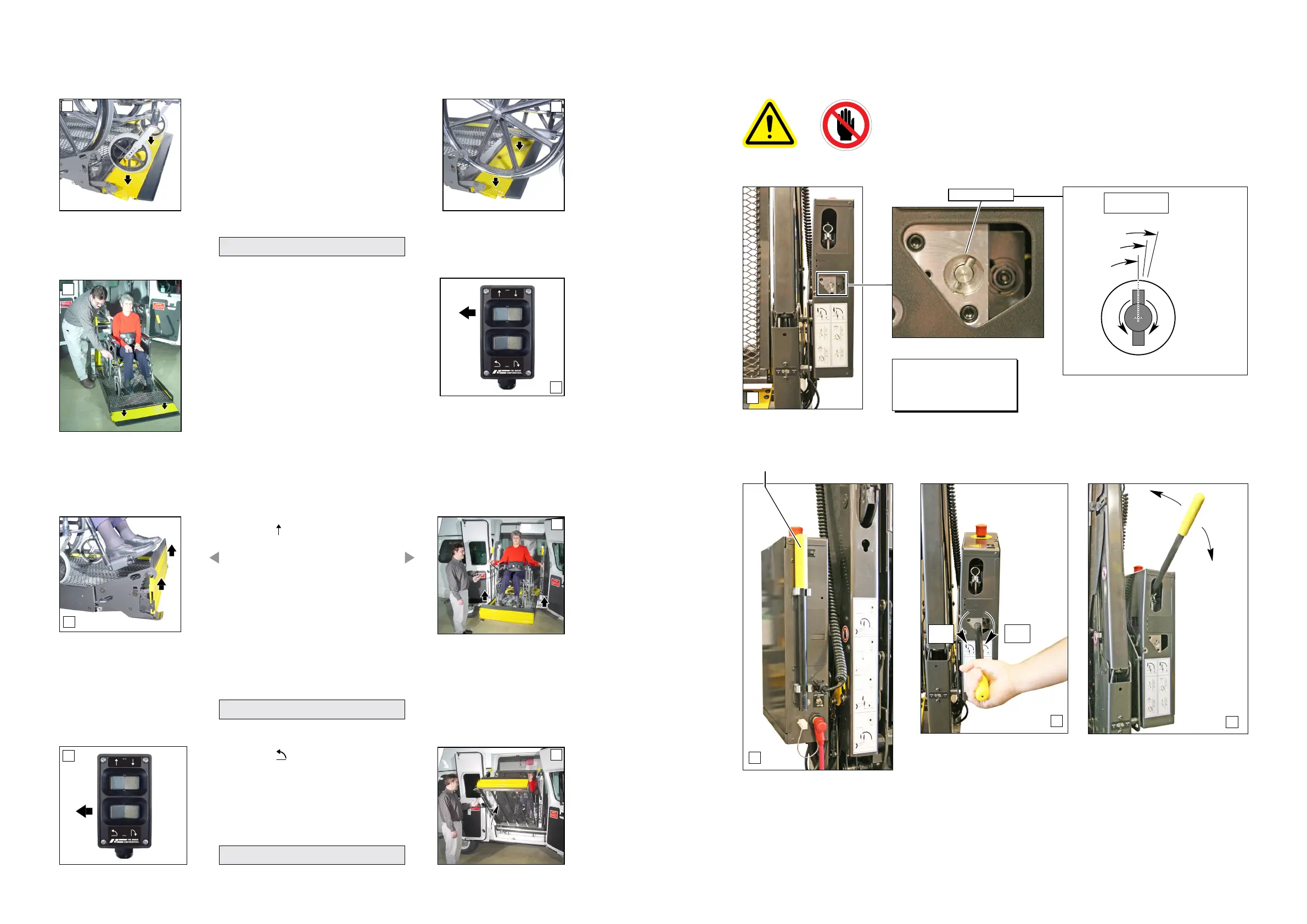

Lift Operating Instructions
F
E
Notice: Roll stop must be
fully unfolded (ramp position)
until the entire wheelchair (or
standee) has crossed the roll
stop. See Photos E and F.
H
G
TO LOAD PASSENGER:
1. Read Notices below! Load
passenger onto platform and
lock wheelchair brakes. See
Photo G.
Notice: Roll stop must be
fully unfolded (ramp position)
until the entire wheelchair (or
standee) has crossed the roll
stop. See Photos E and F.
Notice: Passenger must be
positioned fully inside yellow
boundaries.
J
I
2. Press UP switch (Photo H)
to fold roll stop UP fully (verti-
cal - see Photo I), and raise
the platform to oor level.
See Photo J. Release switch.
3. Unlock wheelchair brakes
and unload passenger from
platform.
TO FOLD PLATFORM:
Press FOLD (In) switch un-
til platform stops (fully folded).
See Photos K and L. Release
switch
CLOSE DOOR(S)
Notice: Bridge plate and roll stop automatically
function during manual operations.
B
Hand Pump Handle
Release Valve
maximum
3 Nm
minimum
2 Nm
seats
(stops)
O
P
E
N
C
L
O
S
E
AI/B.P. Valve
1-30-92
O
P
E
N
C
L
O
S
E
approximate
1.5 mm intervals
Valve Tightening
Specication:
Once valve seats
(stops), tighten 2
to 3 Nm as shown.
Notice: Close backup
pump release valve
securely before operating
electric pump.
A
Manual Operating Instructions
36514
C
Open
(Down)
Close
(Up/Stop)
D
Release Valve
