Assembly Instructions

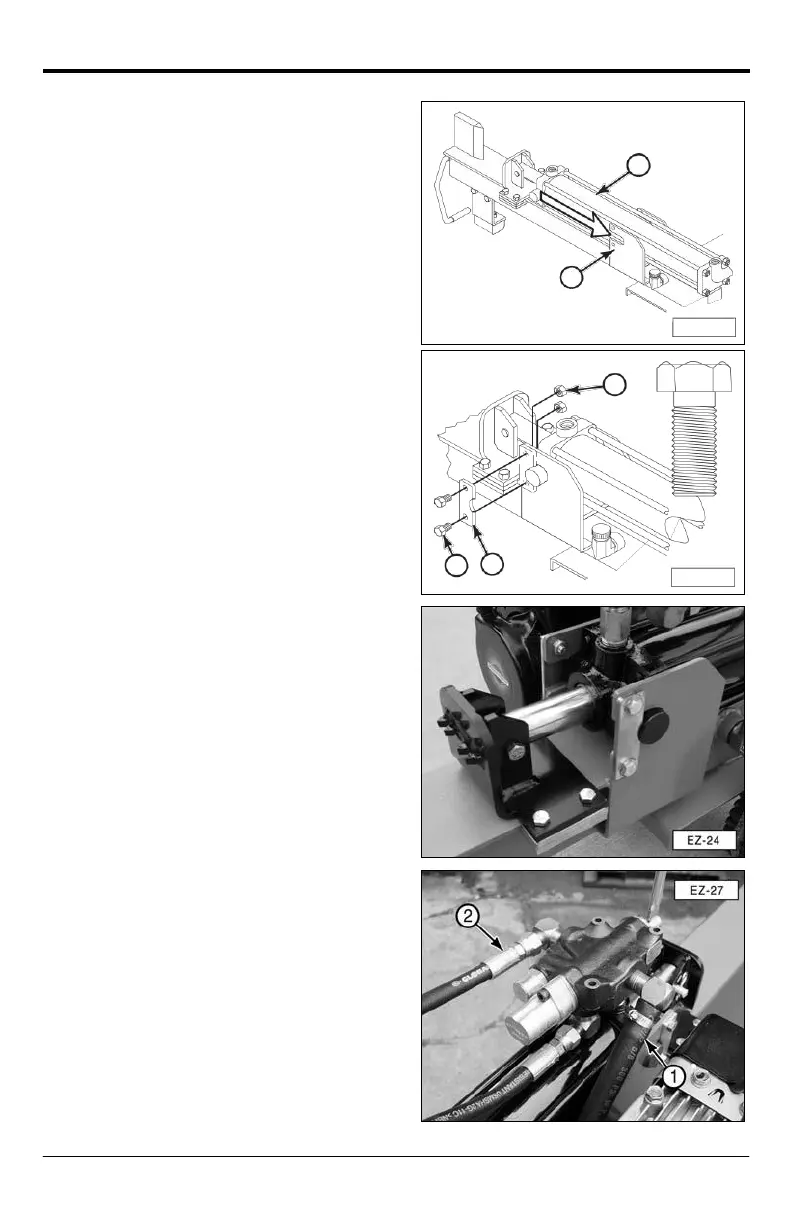

4. Slide cylinder and push plate assembly (1)
towards the engine until the trunnion pins
1
on the side of the cylinder fit into the slots
of the cylinder mounting bracket (2).
2
EZ-25
5
4
3
EZ-26
5. Install two retaining plates (3) using four
5/16 x 3/4 inch long hex bolts (4) and
locknuts (5). Tighten the nuts securely
using the two 1/2 inch wrenches.
6. Slide the hose clamp onto low pressure
hose (1). Push the hose onto the fitting
and securely tighten the hose clamp with a
flathead screwdriver.
7. Thread high pressure hose (2) onto the
control valve fitting. Tighten the hose
using a crescent wrench.
