Bray 6P Series User Manual

Bray Series 6P
Operation and Maintenance Manual
6

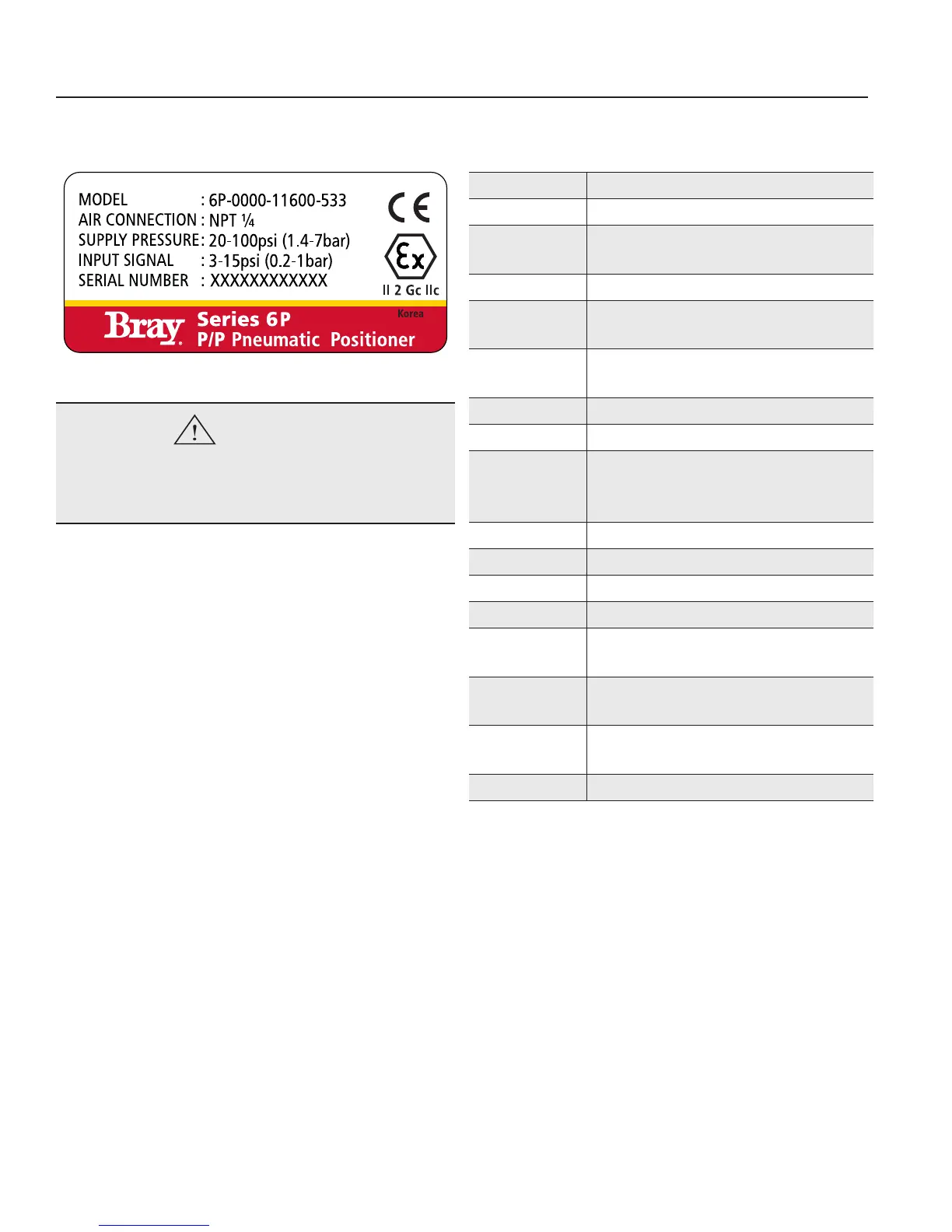

Label Description
NOTICE
All Series 6P positioners are supplied as Double Acting.
For Single Acting operation, OUT 2 should be plugged
with a 1/4” NPT plug.
Specifications
Category Double Acting / Single Acting Pneumatic
Input Signal 3-15 psig (0.2 - 1.0 barg)
Supply
Pressure
20-100 psig (1.4 - 7.0 barg)
Stroke 0 to 90˚
Air
Connection
1/4” NPTF
Gauge
Connection
1/8” NPTF
Protection IP66
Cam Linear & Optional Reverse Acting
Ambient
Temperature
Ranges
Std. = -4˚F to +158˚F (-20˚C to +70˚C)
High = -4˚F to +248˚F (-20˚C to +120˚C)
Low = -40˚F to +158˚F (-40˚C to +70˚C)
Linearity ±2.0% Full Scale (F.S.)
Hysteresis ±1.0% Full Scale (F.S.)
Sensitivity ±0.5% Full Scale (F.S.)
Repeatability ±0.5% Full Scale (F.S.)
Air
Consumption
.1 Acfm (1.4 LPM) @ 20 psia (1.4 barA)
.39 Acfm (11 LPM) @ 60 psia (4 barA)
Flow
Capacity
2.8 Acfm (80 LPM) @ 20 psia (1.4 barA)
7.1 Acfm (200 LPM) @ 60 psia (4 barA)
Housing
Material
Die-cast Aluminum, Powder-coated
Weight 3.7 lbs (1.7 kg)
!
