Battery Backup Unit (BBU) — Installation & Maintenance Manual Continued

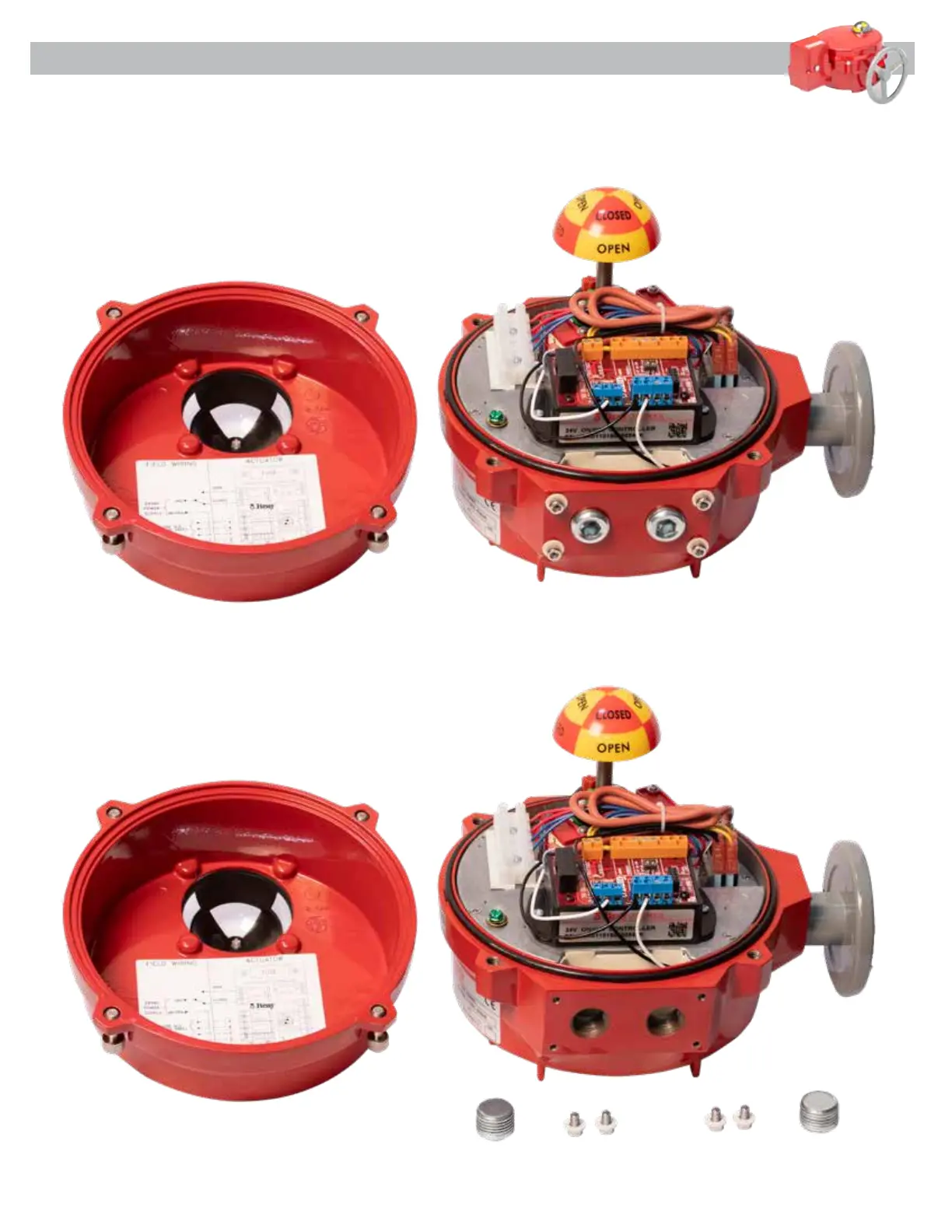

3.3 Remove lid of the actuator minding the lid to body O-Ring. [Figure 2].
3.4 Remove four (4) BBU actuator mounting bolts and two (2) conduit plugs from side of S70 actuator [Figure 3].
Figure 2
Figure 3
Initial Assembly and Battery Installation
