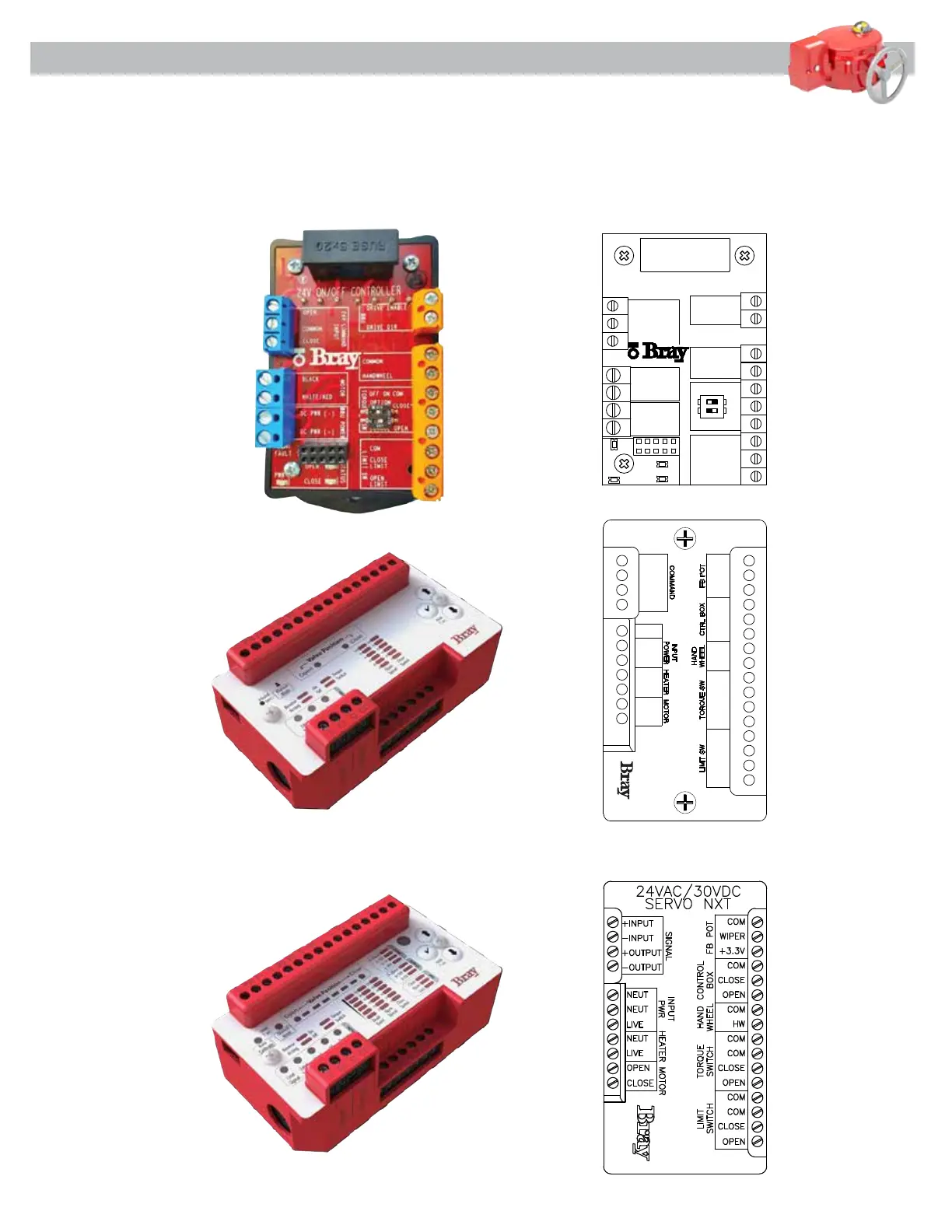

Control Board Wiring
Figure 11
On/Off
On/Off NXT
Servo NXT
4.4
All wiring from BBU to Actuator shall pass through the conduit ports. Do not allow sharp
conduit threads to damage the wire insulation. Use the appropriate Bray S70 wiring diagram for
terminal locations and wire color selection. See [Figure 11] for applicable electronic modules.
