BRC Sequent 24 - Annex E: Right or Left Injector Harness; Annex F: Universal Injector Harness

15
✂
✂
✂
✂
✂
✂
✂
✂
ANNEXES E

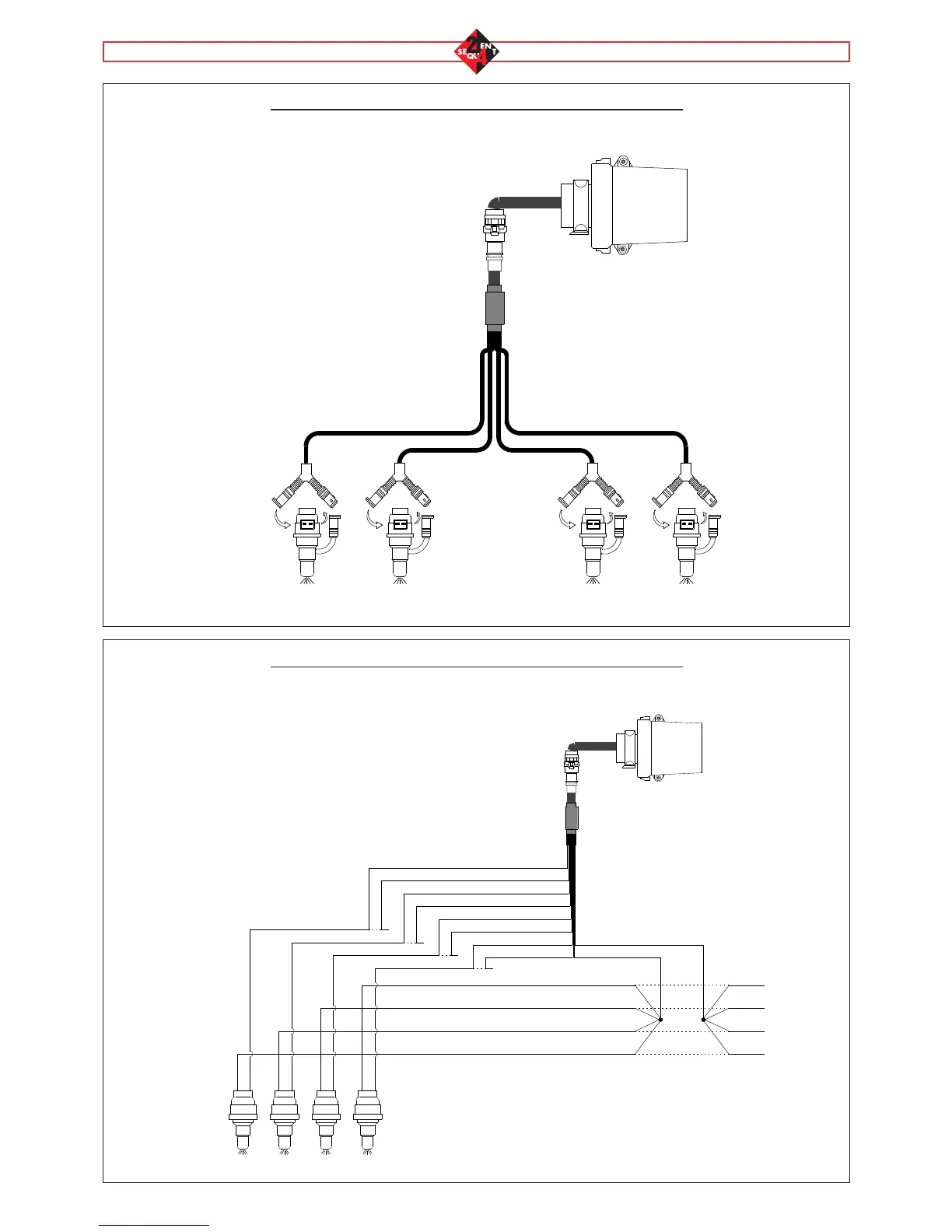

4-Petrol injector connection Sequent 24 Harness Right or Left
ANNEXES F
Universal 4-Petrol injector connection Sequent 24 Harness
Sequent 24
1° Injector 2° Injector 3° Injector 4° Injector
Negative Positive
Violet Orange
Violet Orange
Violet Orange
Violet Orange
Inj. 1 Petr.
Inj. 1 Petr.
Inj. 2 Petr.
Inj. 2 Petr.
Inj. 4 Petr.
Inj. 4 Petr.
Inj. 3 Petr.
Inj. 3 Petr.
White/Green
White/Brown
SEQUENT 24
1°
Injector
2°
Injector
3°
Injector
4°
Injector
