12
Chapter 1: Hardware insertion.

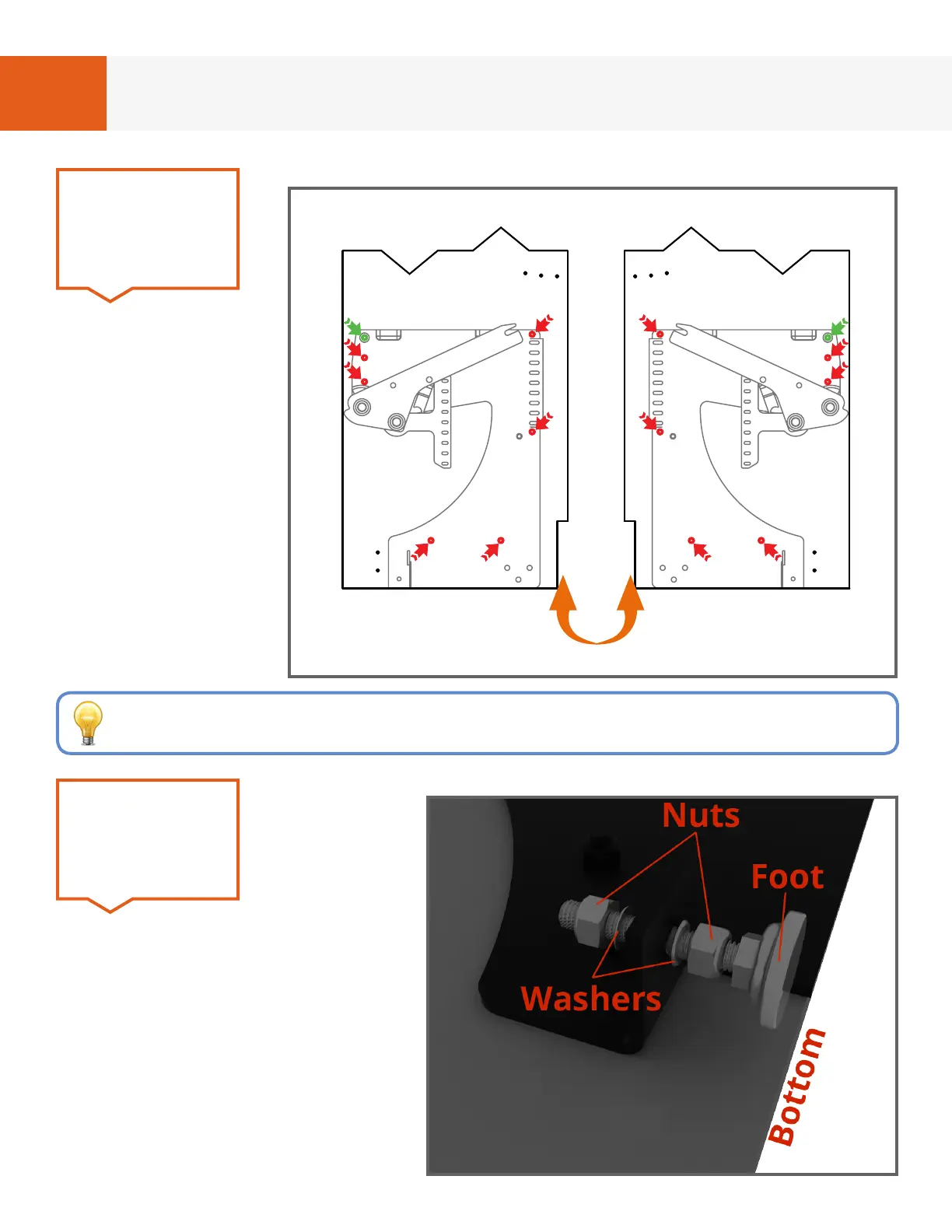

Red locations indicate a 30mm bolt and nylock nut. The green locations will
only use a 30mm bolt and thread into the integrated T-Nut.
Attach each
mechanism to the
face of the side
panels as shown in
Fig. 1C using qty 7
30mm bolts and qty
6 nylock nuts found
in Hardware Package
#2.
The Bolts will go in
from the opposite
side of the panel
shown. The panels
have a recessed area
that the bolts will t
into.
Front
Front
Bottom Bottom
FIG. 1C
STEP 3
Attach each mechanism foot
from Hardware Package #2, to
the mechanisms. They will attach
toward the bottom at the piece of
steel bent at 90°.
At this time, keep each foot loose
and make sure the bottom of the
feet do not stick past the bottom
of the panel. The feet will be used
later for adjustment.
FIG. 1D
STEP 4
Bed Left Side Bed Right Side
To Next Page
