Desktop Support Brackets
2.4 Desktop Flexible Media Support System [For BREN 724 Razor]
Step 1
Please examine the following items in stand carton’s accessory box:
 1 set of Roll Media Flange (2 pieces)
 1 set of Roll Holder (2 pieces)
 1 set of Roll Holder Guide Bushes (4 pieces)
 1 set of Roll Holder Support (2 pieces)
 1 set of Desktop Support Bracket (2 pieces)
 4 pieces of Plastic Foot
 4 pieces of M4 screws
 12 pieces of M6 screws
 1 piece of M4 L-shape hexagon screw driver
 1 piece of M5 L-shape hexagon screw driver
 1 piece of M6 L-shape hexagon screw driver (for adjusting the screws of Roll Holders)
 1 piece of Installation Guide for Roll Holder
Step 2
Put the 4 Plastic Foot under the Roll Holder Support and insert the M4 screw into the hole of
Plastic Foot and tighten them with the M4 L-shape screw driver. (Figure 2.3-1
)
Step 3 Position the Desktop Support Brackets beside the Roll Holder Support and insert M6
screws into the Roll Holder Support and tighten them with M6 L-shape screw driver. (Refer to
Figure 2.3-2).

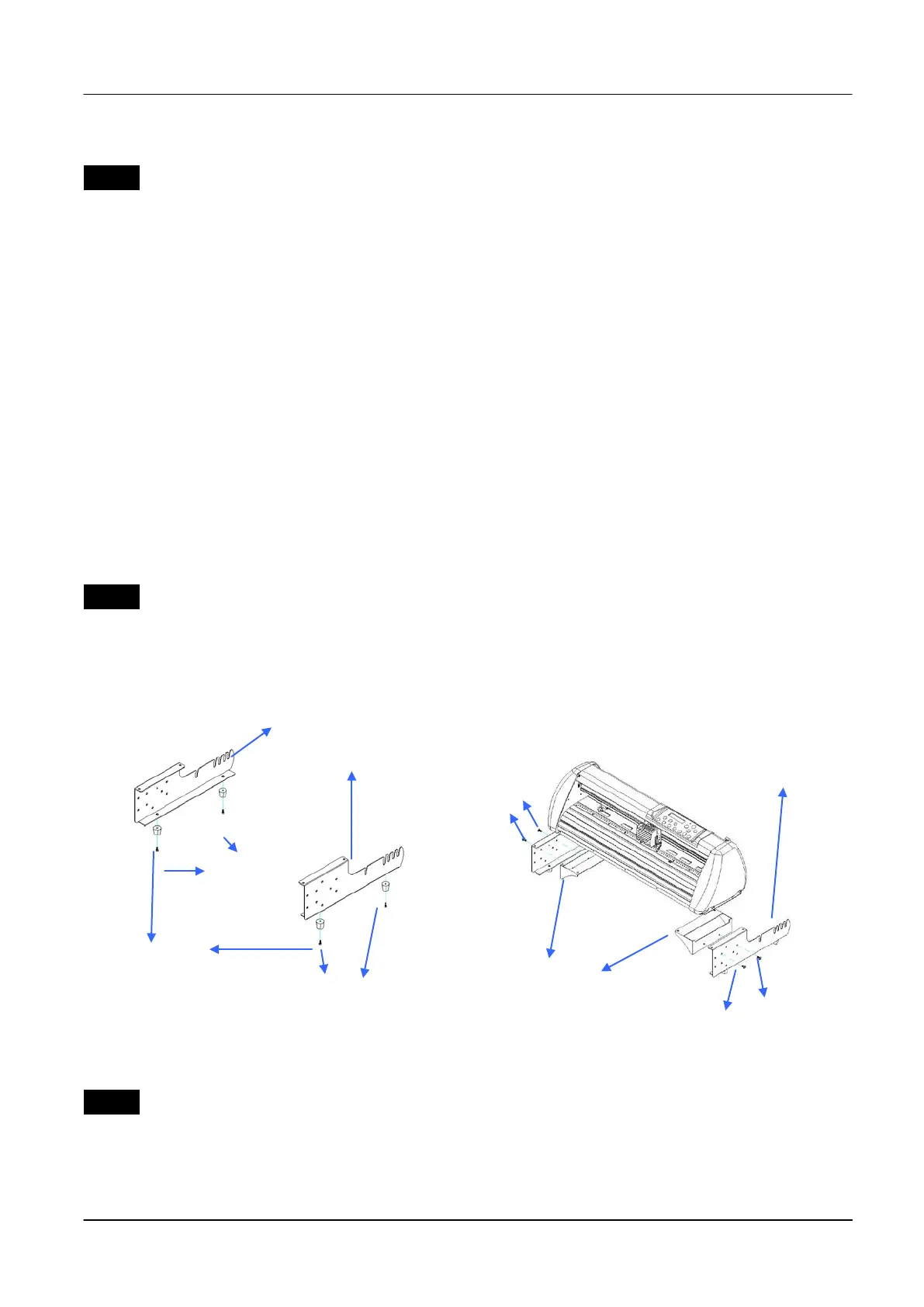

Figure 2.3-1
M4 screws
Plastic
M4 screws
Roll Holder Support
Figure 2.3-2
M6 screws
Roll Holder Support
M6 screws
