OPERATION (CONTINUED)

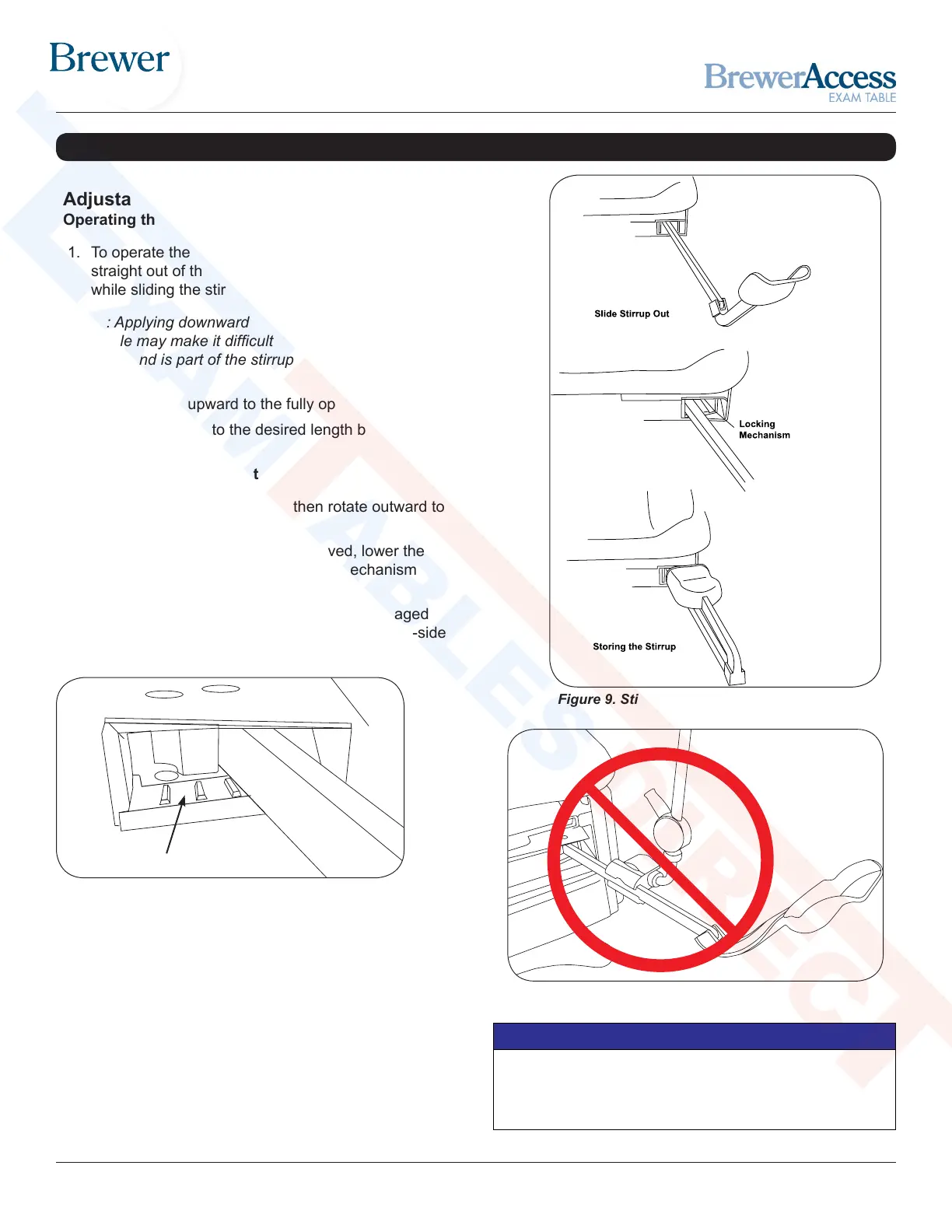

Figure 9. Stirrups
Figure 11. Afx No Attachments!
Storing the Stirrups
1. To store the stirrups in the table, grasp end of
stirrup and pull straight out to its full extension.
2. Fold stirrup down against bar, then rotate it to
the inner most lateral position and slide it back
into the stowed position.
Adjustable Stirrups
Operating the Stirrups
1. To operate the stirrups, grasp end of stirrup and pull
straight out of the table (Figure 9). Lift up slightly
while sliding the stirrup out.
NOTE: Applying downward pressure when pulling stirrup
from table may make it difcult to move. Resistance
is normal and is part of the stirrup friction locking
mechanism.
2. Unfold stirrup upward to the fully open position.
3. Adjust the stirrup to the desired length by sliding it in
or out.
Stirrup Lateral Adjustment
1. Lift end of stirrup slightly and then rotate outward to
desired position.
2. When the desired position is achieved, lower the
stirrup to engage the lateral locking mechanism
(Figures 9 and 10).
3. Check that lateral locking mechanism is engaged
by attempting to move stirrup assembly side-to-side
without lifting on the stirrup end.
Figure 10. Stirrup Locking Mechanism
Close Up of Locking Mechanism
See enlargement
(Figure 9)
Use Stirrup Only as Designed
Do not use any part of the stirrup for attachment of any
device (Figure 11). Warranty will be voided.
