BRIG Eagle 5 - Boat Design 1

— 15 —
EAGLE 5-2020 2378J.01
1 — Polyester hull.
2 — Reinforced buoyancy tube.
3 — Doubled rubbing strake.
4 — Safety handle.
5 — Towing bow eye.
6 — Front step-plate with bow roller.
7 — Neck for fuel fill.
8 — Box for shower handset.
9 — Steering console seat.
1 0 — Air fill valve (5 pcs.).
1 1 — Front lockers removable cushions.
1 2 — Cockpit drain system sockets (2 pcs.).
1 3 — Steering console (Deluxe or Sport version).
1 4 — Neck for water fill.
1 5 — Stern-part s eat.
1 6 — Soft back of stern-part seat.
1 7 — Mooring cleats.
1 8 — Mas t.
1 9 — Navigation lights (red and green).
2 0 — Anchor light (white).
2 1 — Stern lifting eyes.
2 2 — Bow liftig eyes.

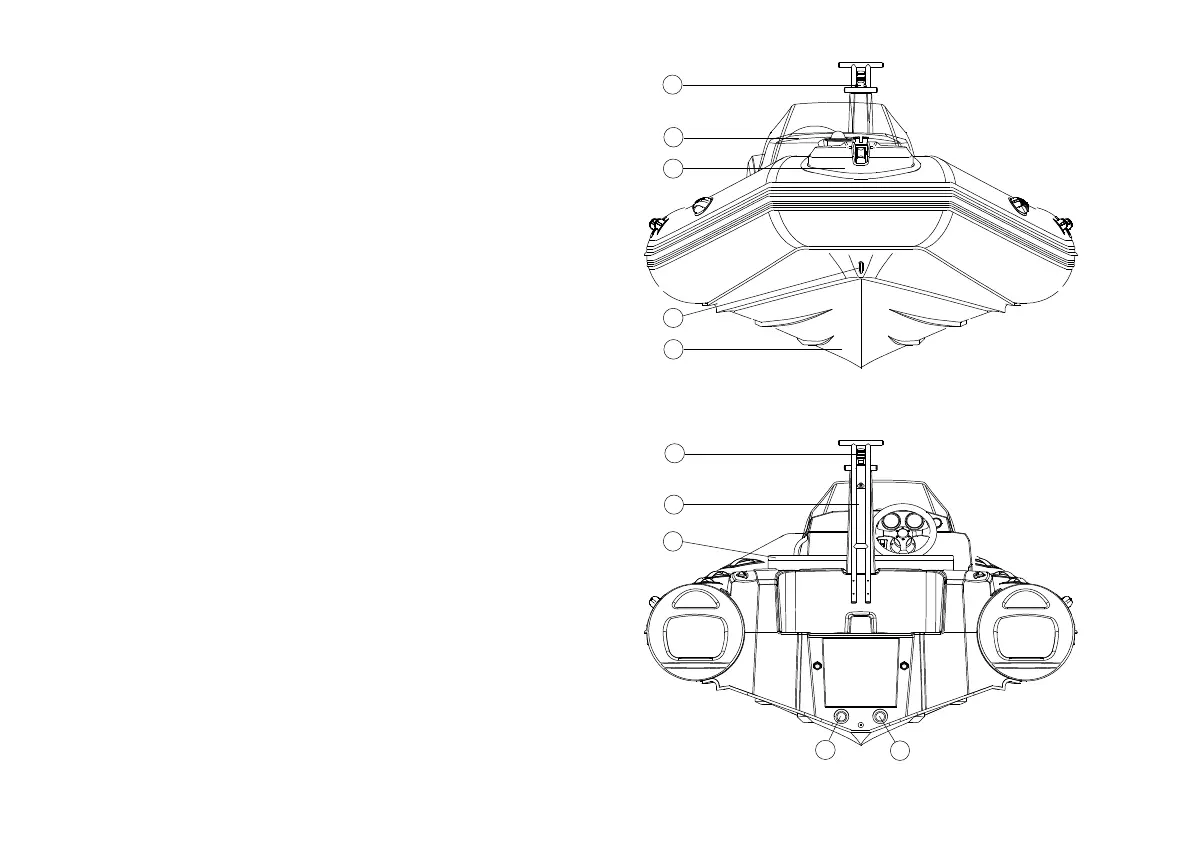

The boat series "EAGLE" consists of the next main components (Fig.
D1):
- Polyester hull (1);
- Reinforced buoyancy tube (2);
- Polyester steering console (13);
- Mast for navigation lights (18).
BOAT DESIGN.
DESCRIPTION:
Fig.D1
20
13
6
19
5
1
18
16
12
12
