— 19
EAGLE 5-2020 2378J.01
STEERING CONSOLE DELUXE VERSION.

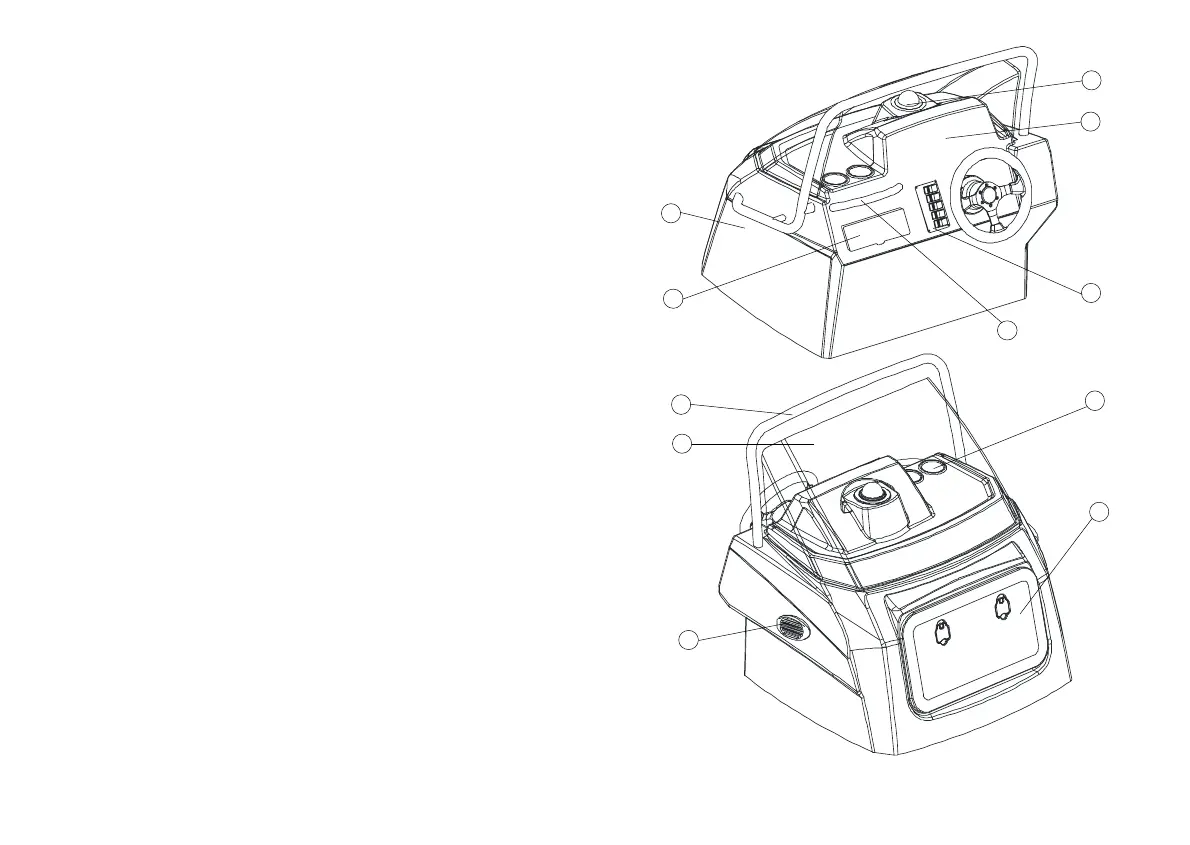

The console of the Eagle 5L consists of the following components
(Fig. D4):
console base, integrated with the deck;
console upper part (1);
windscreen (2);
stainless steel handrail (3) and handle (10);
niche for things (4) with socket 12V;
plate with switches (5);
place (6) for installation of analog or/and digital devices,
such as speedometer, tachometer, trim-meter, fuel-level meter,
multipurpose meters, GPSmap, etc. ;
hatch (7);
electric horn (8);
compass (9);
cup holder (11);
fuse holding box with warning lights (located inside the
cons ole) .
Mast (18, Fig.D1) is located in the stern part of the boat. Mast is
equipped with anchor light (white, 20) and may be used as ski-mast,
(Fig. D1).
MAST.
Fig.D4
Steering Console
Deluxe Version
1
3
2
5
10
4
9
6
7
8
1 1
