— 21 —
EAGLE 5-2020 2378J.01

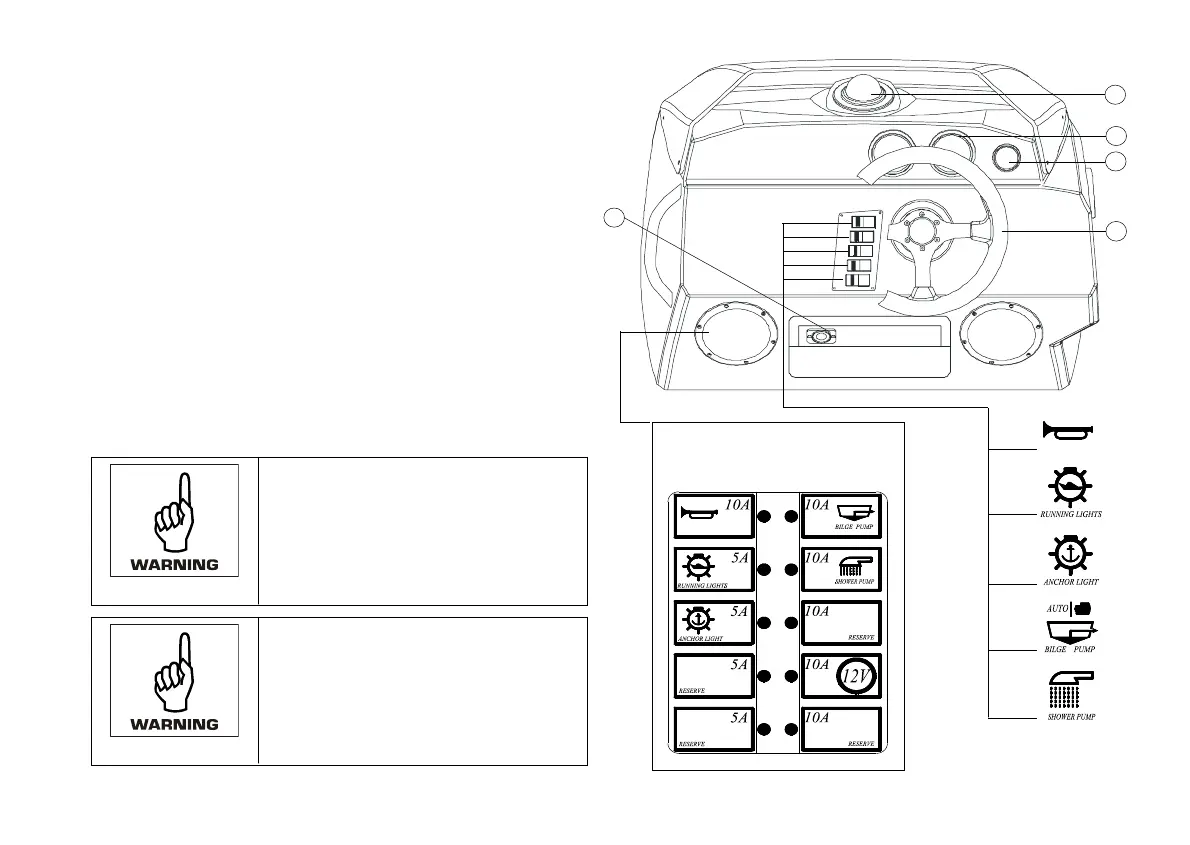

Console equipment (Fig. D6)
— mechanical or hydraulic steering system;
— steering wheel (1);
— compass (2);
— fuel-level meter (3);
— speedometer (4);
— additional equipment (tachometer or multi-purpose meter,
trimmer, voltmeter, clock);
— socket 12V with fuse (5);
— fuse holding box with warning lights (inside of the steering
console on the left side)
— switc hes:
— electric horn switch (6);
— anchor light switch (7);
— running lights and meter lamp switch (8);
— bilge pump switch (9);
— shower pump switch (10);
Always keep a spare set the fuse in
an easily-accessible location.
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
Fig.D6
Fuse holding box with
warning lights
5
4
10
9
3
8
61
H OR N
2
7
7
8
9
6
HORN
10
1
2
5
3
4
