EAGLE 6 2378G.01
1 — Rigid hull
2 — Reinforced buoyancy tube
3 — Steering console
4 — Inflate valves
5 — Drain valves
6 — Bilge valve
7 — Bow plate
8 — Lifting eyes
9 — Bow removable curshion
10 — Locker with curshion
11 — Fuel tank neck
12 — Navigation lights
13 — Transom
14 — Fuel tank with fuel level sender
15 — Battery box
16 — Handle
17 — Towing eye
18 — HIN-code plate
19 — Outlet for remote control and steering cable
20 — Ladder
21 — Builder's plate
22 — Partition
23 — Fuel Hoses
24 — Steering mechanisme
25 — Steering wheel
26 — Steering cable
27 — Speedometer
28 — Tachometer
29 — Fuel level indicator
30 — Compass
31 — Ski mast
32 — Seats
33 — Fuel tank ventilation
34 — Rear step plate
35 — Fresh water tank
36 — Shower
37 — Horn
38 — Rear mooring cleat
39 — Bilge pump

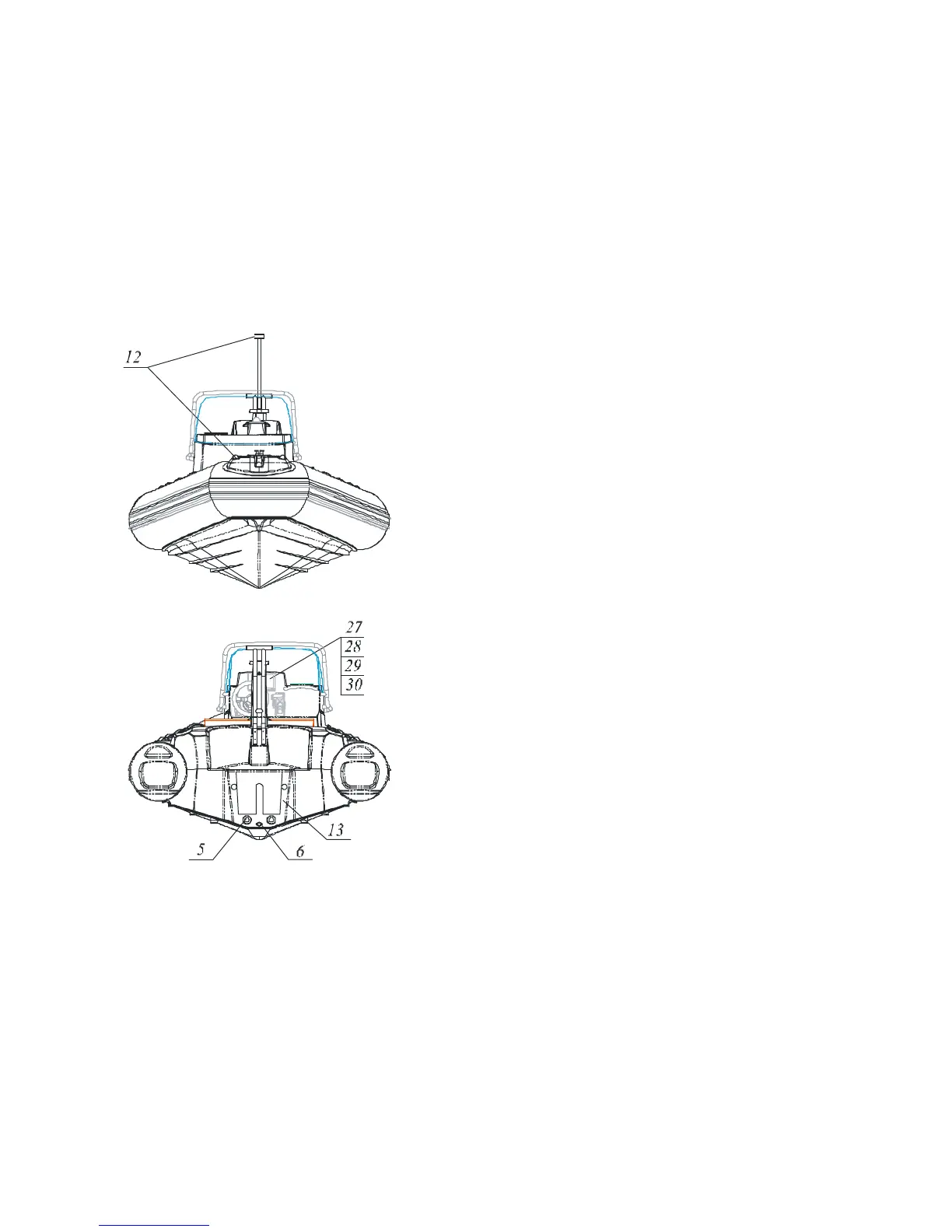

BOAT DESIGN of EAGLE 6 (fig.D1).
Fig.D1
