BRIG Eagle 6 - Drain System

— 21 —
EAGLE 6 2378G.01
Drain system, (Fig. D7, D8 ), consists from two independent
systems:
— cockpit and motor recess drain system;
— hull drain system.
COCKPIT AND MOTOR RECESS DRAIN SYSTEM includes:
— two cockpit drain sockets with plugs (1);
— two stern drain sockets with flexible diaphragmes (2);
— two drain hoses (3);
— drain socket thru-hull out of motor recess (4);
HULL DRAIN SYSTEM includes:
— automatic bilge pump (5);
— drain hose (6);
— drain socket installed in the motor recess (7);
— bilge drain socket (8) (Fig.D8).
lDRAIN SYSTEM.
Always the cockpit drain sockets must be open during navigation. Do not obstruct cockpit
drain sockets at any time. Do not dispose bulky objects in front of the cockpit drain sockets.
Do not modify drain systems. Before navigation check the drain valves.
Never locate heavy objects on the drain hoses. It will be cause of bucking, distortions and
damages.

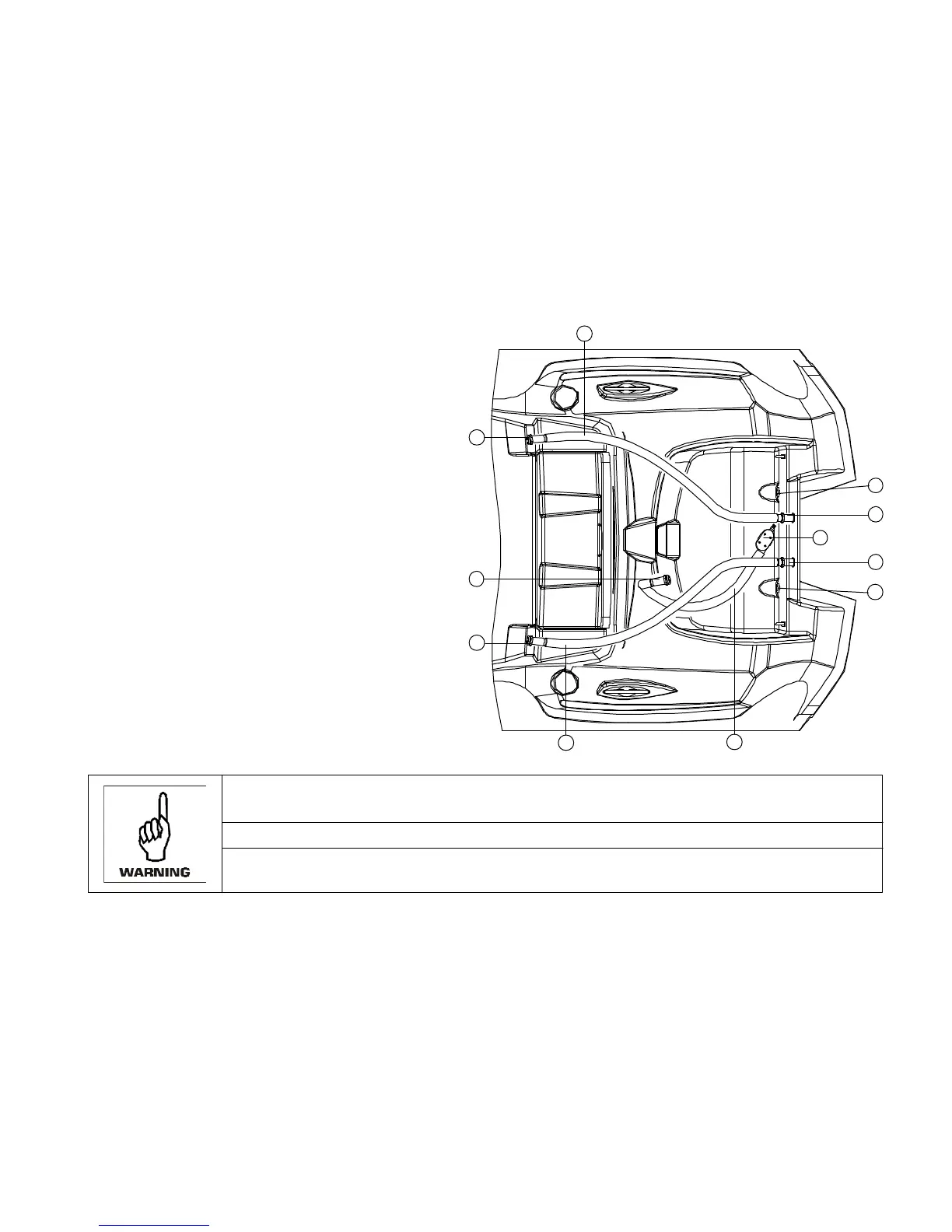

D7
2
2
4
7
5
6
3
1
1
3
4
